Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Milwaukee 4000393515 ( SSPE1300SQ )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

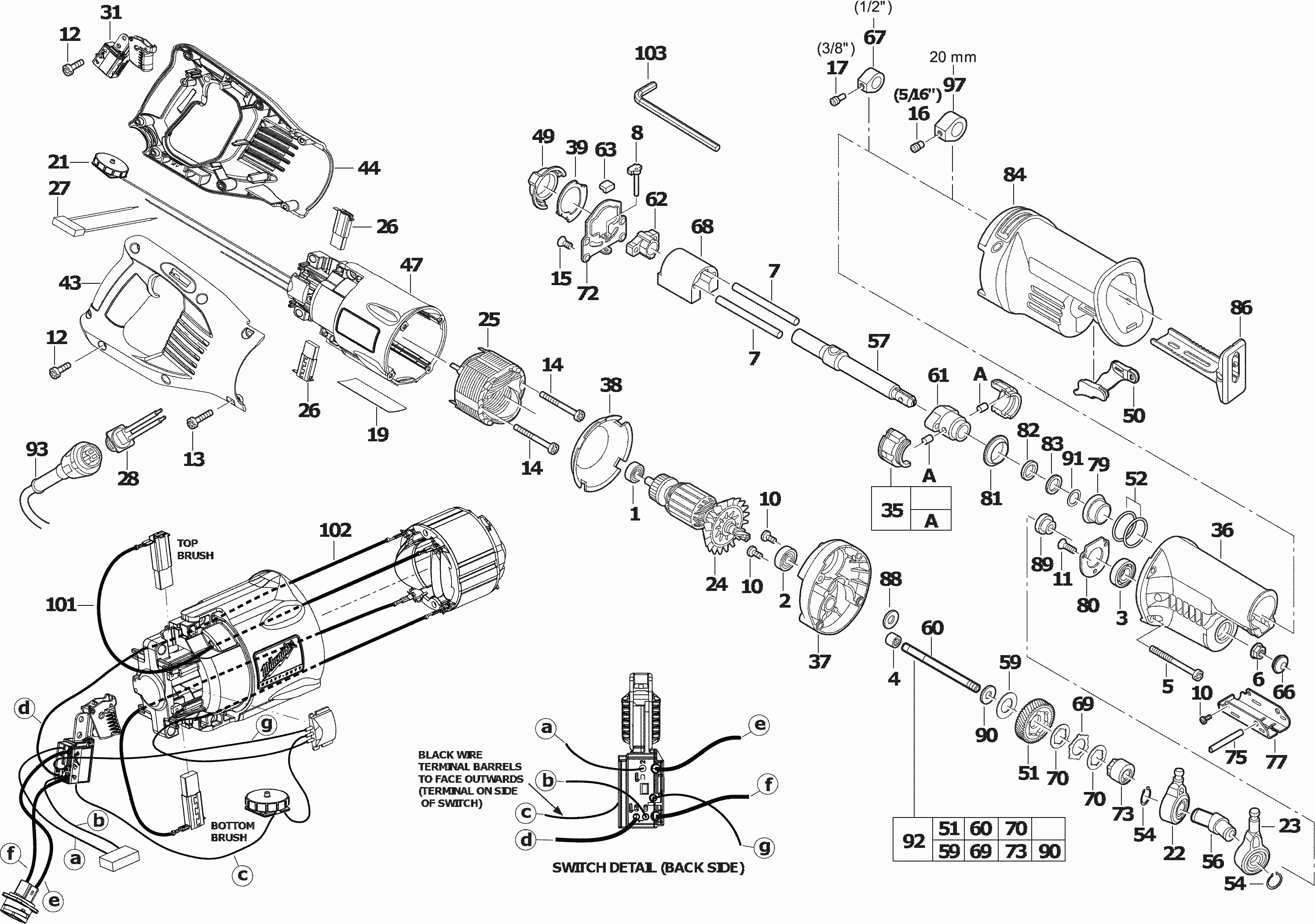

Tekeningen van de Milwaukee 4000393515 ( SSPE1300SQ )
Onderdelen lijst van de Milwaukee 4000393515 ( SSPE1300SQ )
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| Ball Bearing | ||||
| 0001 | 02040845@64475 | 8.64 | 10.45 | |
| BALL BEARING | ||||
| 0001 | 2040845@64475 | 5.00 | 6.05 | |
| BALL BEARING | ||||
| 0002 | 02040915@64475 | 8.64 | 10.45 | |
| BALL BEARING | ||||
| 0002 | 2040915@64475 | 5.00 | 6.05 | |
| BALL BEARING | ||||
| 0003 | 02041511@64475 | 12.10 | 14.64 | |
| BALL BEARING | ||||
| 0003 | 2041511@64475 | 7.00 | 8.47 | |
| NEEDLE BEARING | ||||
| 0004 | 02502150@64475 | 10.37 | 12.55 | |
| NEEDLE BEARING | ||||
| 0004 | 2502150@64475 | 5.00 | 6.05 | |
| SCREW (4 benodigd) | ||||
| 0005 | 5880302@64475 | 1.00 | 1.21 | |
| NUT | ||||
| 0006 | 6553790@64475 | 1.00 | 1.21 | |
| DOWEL PIN | ||||
| 0007 | 06650045@64475 | 4.32 | 5.23 | |
| DOWEL PIN (2 benodigd) | ||||
| 0007 | 6650045@64475 | 2.50 | 3.02 | |
| BOLT | ||||
| 0008 | 43360125@64475 | 6.31 | 7.64 | |
| SCREW (3 benodigd) | ||||
| 0010 | 6827253@64475 | 1.00 | 1.21 | |
| SCREW (3 benodigd) | ||||
| 0011 | 6827255@64475 | 1.00 | 1.21 | |
| SCREW | ||||
| 0012 | 6827270@64475 | 1.00 | 1.21 | |
| SCREW (2 benodigd) | ||||
| 0013 | 6827326@64475 | 1.00 | 1.21 | |
| SCREW 8-16X2-1/4 PAN PLAS | ||||
| 0014 | 06827453@64475 | 1.90 | 2.30 | |
| SCREW 8-16X2-1/4 PAN PLAS (2 benodigd) | ||||
| 0014 | 6827453@64475 | 1.00 | 1.21 | |
| SCREW (4 benodigd) | ||||
| 0015 | 6828870@64475 | 1.00 | 1.21 | |
| Screw Screw-blade Clamp | ||||
| 0016 | 06832976@64475 | 3.78 | 4.57 | |
| SCREW SCREW-BLADE CLAMP | ||||
| 0016 | 6832976@64475 | 1.20 | 1.45 | |
| SCREW | ||||
| 0017 | 6830115@64475 | 2.00 | 2.42 | |
| ECCENTRIC DISC | ||||
| 0022 | 14670126@64475 | 50.25 | 60.80 | |
| ECCENTRIC DISC | ||||
| 0023 | 14670136@64475 | 47.94 | 58.01 | |
| Armature | ||||
| 0024 | 16340510@64475 | 85.54 | 103.50 | |
| ELECTRIC FIELD | ||||
| 0025 | 18341510@64475 | 47.52 | 57.50 | |
| CARBON BRUSH SET | ||||
| 0026 | 22200520@64475 | 9.46 | 11.45 | |
| CAPACITOR | ||||
| 0027 | 22330035@64475 | 9.91 | 11.99 | |
| CONNECTION SLEEVE | ||||
| 0028 | 22560120@64475 | 25.34 | 30.66 | |
| SWITCH | ||||
| 0031 | 23660208@64475 | 36.43 | 44.08 | |
| BEARING BUSH HALF | ||||
| 0035 | 14300080@64475 | 6.94 | 8.40 | |
| GEAR BOX HOUSING | ||||
| 0036 | 28142600@64475 | 23.76 | 28.75 | |
| PLATE | ||||
| 0037 | 28282600@64475 | 15.29 | 18.50 | |
| STOP DISC | ||||
| 0038 | 31050155@64475 | 4.49 | 5.43 | |
| PLATE | ||||
| 0039 | 31110130@64475 | 5.40 | 6.53 | |
| MOTOR HOUSING | ||||
| 0047 | 4931454359@64475 | 38.02 | 46.00 | |
| LEVER | ||||
| 0049 | 31520045@64475 | 5.40 | 6.53 | |
| SHOE REL,LEVER KIT | ||||
| 0050 | 31520090@64475 | 5.40 | 6.53 | |
| GEAR | ||||
| 0051 | 32402050@64475 | 13.51 | 16.35 | |
| O-RING | ||||
| 0052 | 34400040@64475 | 1.90 | 2.30 | |
| RING | ||||
| 0054 | 34601315@64475 | 1.80 | 2.18 | |
| SHAFT | ||||
| 0056 | 36920701@64475 | 19.01 | 23.00 | |
| SPINDLE | ||||
| 0057 | 38506400@64475 | 45.94 | 55.59 | |
| DISC SPRING | ||||
| 0059 | 40508850@64475 | 4.49 | 5.43 | |
| REDUCT, GEAR SHAFT | ||||
| 0060 | 42120190@64475 | 7.20 | 8.71 | |
| ADAPTER SLEEVE | ||||
| 0061 | 42240066@64475 | 12.60 | 15.25 | |
| BEARING BUSH | ||||
| 0062 | 42240525@64475 | 9.00 | 10.89 | |
| RUBBER BUFFER | ||||
| 0063 | 42380055@64475 | 5.40 | 6.53 | |
| BEARING COVER | ||||
| 0066 | 42520380@64475 | 1.90 | 2.30 | |
| Reciprozaag ombouwset FIXTEC naar 20 mm (1/2?) | ||||
| 0067 | 49225016@64475 | 31.79 | 38.47 | |
| BALANCE WEIGHT | ||||
| 0068 | 42870180@64475 | 16.20 | 19.60 | |
| PLATE | ||||
| 0069 | 43060676@64475 | 1.80 | 2.18 | |
| DISC PLATE | ||||
| 0070 | 43060685@64475 | 5.40 | 6.53 | |
| ECCENTRIC DISC | ||||
| 0072 | 43560620@64475 | 5.40 | 6.53 | |
| BUSH | ||||
| 0073 | 43780577@64475 | 9.00 | 10.89 | |
| Pin | ||||
| 0075 | 44601635@64475 | 5.40 | 6.53 | |
| HOLDER | ||||
| 0077 | 44660880@64475 | 4.49 | 5.43 | |
| PROTECTIVE CAP | ||||
| 0079 | 44860035@64475 | 5.68 | 6.87 | |
| BEARING CAGE | ||||
| 0080 | 44860655@64475 | 5.40 | 6.53 | |
| SEAL | ||||
| 0081 | 45060110@64475 | 5.40 | 6.53 | |
| SEAL RING | ||||
| 0082 | 45060475@64475 | 4.49 | 5.43 | |
| FELT PACKING | ||||
| 0083 | 45060501@64475 | 1.90 | 2.30 | |
| Insulator | ||||
| 0084 | 45120700@64475 | 12.60 | 15.25 | |
| DISTANCE HOLDER | ||||
| 0086 | 45160645@64475 | 9.00 | 10.89 | |
| SEAL RING | ||||
| 0088 | 45280555@64475 | 5.40 | 6.53 | |
| SPACER | ||||
| 0089 | 45361445@64475 | 1.80 | 2.18 | |
| WASHER | ||||
| 0090 | 45881555@64475 | 1.80 | 2.18 | |
| WASHER | ||||
| 0091 | 45888577@64475 | 1.90 | 2.30 | |
| COUPLING | ||||
| 0092 | 14080075@64475 | 36.43 | 44.08 | |
| CONNECTION CABLE IN2 | ||||
| 0093 | 4931624171@64475 | 33.00 | 39.93 | |
| Reciprozaag ombouwset FIXTEC naar 20 mm | ||||
| 0097 | 42680685@64475 | 21.90 | 26.50 | |
| CABLE SET | ||||
| 0101 | 23940305@64475 | 5.40 | 6.53 | |
| CABLE SET | ||||
| 0102 | 23940310@64475 | 4.49 | 5.43 | |
| Inbussleutel zeskant | ||||
| 0103 | 49960080@64475 | 4.20 | 5.08 | |
