Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Milwaukee 4000469050 ( PH26T )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

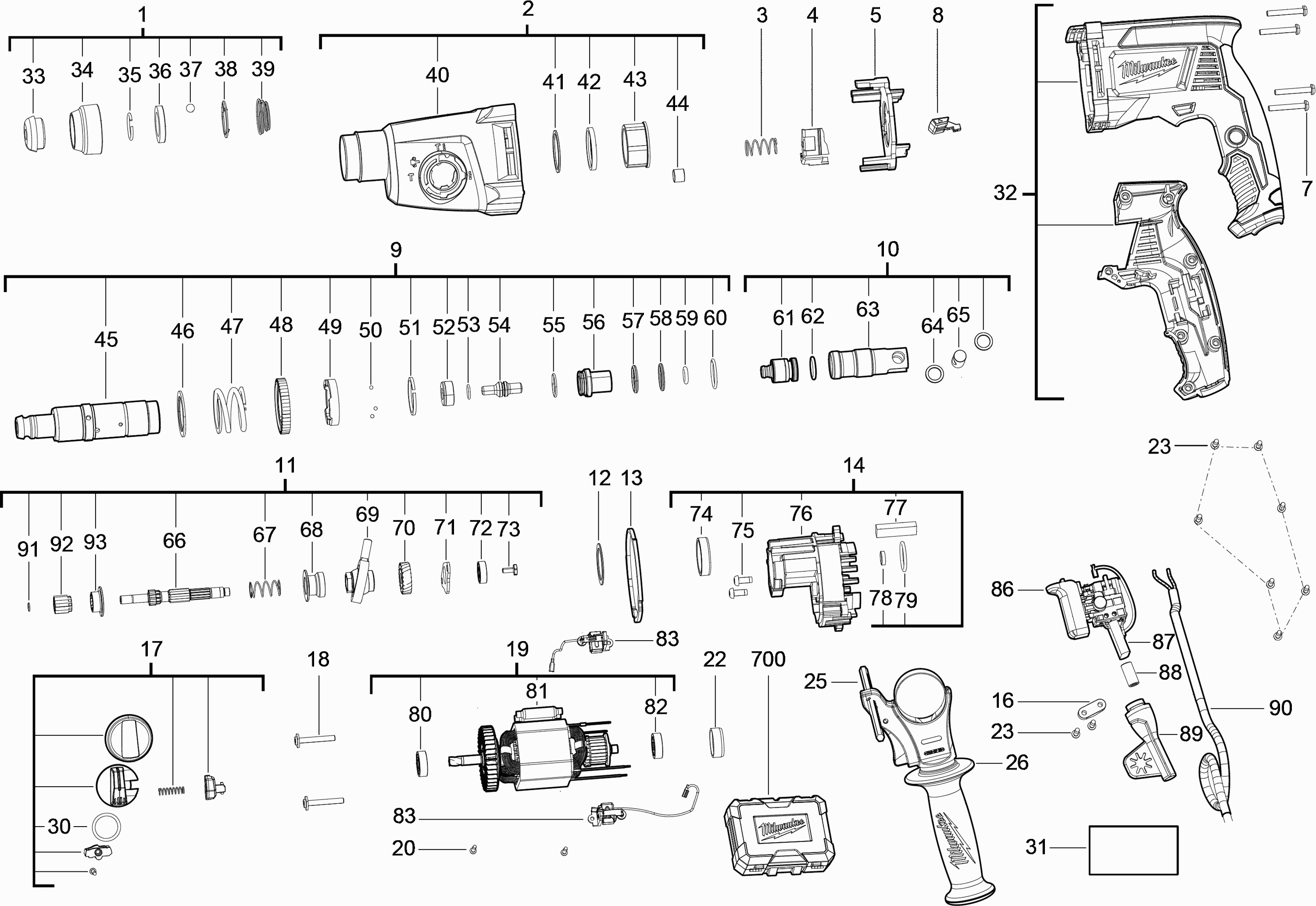

Tekeningen van de Milwaukee 4000469050 ( PH26T )
Onderdelen lijst van de Milwaukee 4000469050 ( PH26T )
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| CHUCK | ||||
| 0001 | 4931466354 | 10.80 | 13.07 | |
| GEAR BOX KIT | ||||
| 0002 | 4931466355 | 39.60 | 47.92 | |
| SPRING PLATE | ||||
| 0003 | 4931454502 | 1.80 | 2.18 | |
| LOCKING PART | ||||
| 0004 | 4931466356 | 5.40 | 6.53 | |
| COVER | ||||
| 0005 | 4931454439 | 1.80 | 2.18 | |
| SCREW | ||||
| 0007 | 661288001 | 1.80 | 2.18 | |
| SLIDE | ||||
| 0008 | 4931466357 | 1.80 | 2.18 | |
| SPINDLE KIT | ||||
| 0009 | 4931466358 | 120.38 | 145.66 | |
| CYLINDER | ||||
| 0010 | 4931466359 | 42.77 | 51.75 | |
| WOBBLE DRIVE | ||||
| 0011 | 4931466360 | 60.19 | 72.83 | |
| WASHER | ||||
| 0012 | 633516001 | 1.80 | 2.18 | |
| SEAL | ||||
| 0013 | 4931454444 | 5.40 | 6.53 | |
| GEAR BOX | ||||
| 0014 | 4931466361 | 47.52 | 57.50 | |
| TURNING KNOB | ||||
| 0017 | 4931466362 | 15.84 | 19.17 | |
| SCREW | ||||
| 0018 | 4931454468 | 1.80 | 2.18 | |
| MOTOR | ||||
| 0019 | 4931466363 | 107.71 | 130.33 | |
| SCREW | ||||
| 0020 | 660570005 | 1.80 | 2.18 | |
| HOLDER | ||||
| 0022 | 4931466364 | 1.80 | 2.18 | |
| SCREW | ||||
| 0023 | 4931454800 | 1.80 | 2.18 | |
| DEPTH GAUGE | ||||
| 0025 | 4931384434 | 5.40 | 6.53 | |
| AUXILIARY HANDLE | ||||
| 0026 | 4931466365 | 19.01 | 23.00 | |
| O-RING | ||||
| 0030 | 4931466366 | 1.80 | 2.18 | |
| RATING PLATE | ||||
| 0031 | 4931466367 | 1.80 | 2.18 | |
| HOUSING | ||||
| 0032 | 4931466368 | 33.26 | 40.24 | |
| RUBBER CAP | ||||
| 0033 | 561993001 | 1.80 | 2.18 | |
| CLAMPING SLEEVE | ||||
| 0034 | 522172001 | 1.80 | 2.18 | |
| SPRING RING | ||||
| 0035 | 672631001 | 4.49 | 5.43 | |
| RETAINING RING | ||||
| 0036 | 633521001 | 4.49 | 5.43 | |
| BALL | ||||
| 0037 | 4931453606 | 5.40 | 6.53 | |
| PLATE | ||||
| 0038 | 632399001 | 9.00 | 10.89 | |
| SPRING | ||||
| 0039 | 4931453607 | 3.60 | 4.36 | |
| GEAR BOX HOUSING | ||||
| 0040 | 4931466369 | 20.59 | 24.91 | |
| COMPENSATING WASHER | ||||
| 0041 | 633514001 | 1.80 | 2.18 | |
| NEEDLE BEARING | ||||
| 0042 | 4931454446 | 7.20 | 8.71 | |
| BUSH | ||||
| 0043 | 4931454445 | 7.20 | 8.71 | |
| NEEDLE BEARING | ||||
| 0044 | 4931454447 | 10.80 | 13.07 | |
| SPINDLE SLEEVE | ||||
| 0045 | 4931454510 | 57.02 | 68.99 | |
| WASHER | ||||
| 0046 | 633517001 | 1.80 | 2.18 | |
| COUPLING RING | ||||
| 0047 | 4931454460 | 4.49 | 5.43 | |
| GEARWHEEL SET | ||||
| 0048 | 4931454459 | 7.20 | 8.71 | |
| CLUTCH | ||||
| 0049 | 4931454458 | 5.40 | 6.53 | |
| BALL | ||||
| 0050 | 611405001 | 1.80 | 2.18 | |
| HOLDING RING | ||||
| 0051 | 4931436804 | 1.80 | 2.18 | |
| STOP WASHER | ||||
| 0052 | 4931454457 | 5.40 | 6.53 | |
| O-RING | ||||
| 0053 | 4931454454 | 1.80 | 2.18 | |
| SNAP DIE | ||||
| 0054 | 4931454509 | 19.01 | 23.00 | |
| O-RING | ||||
| 0055 | 4931436819 | 1.80 | 2.18 | |
| SLEEVE | ||||
| 0056 | 4931472261 | 14.40 | 17.42 | |
| O-RING | ||||
| 0057 | 562595001 | 1.80 | 2.18 | |
| WASHER | ||||
| 0058 | 633518001 | 1.80 | 2.18 | |
| O-RING | ||||
| 0059 | 4931454456 | 1.80 | 2.18 | |
| CIRCLIP | ||||
| 0060 | 672632001 | 4.49 | 5.43 | |
| PERCUSSION BODY | ||||
| 0061 | 4931454453 | 11.69 | 14.14 | |
| O-ring | ||||
| 0062 | 561994001 | 1.80 | 2.18 | |
| CYLINDER | ||||
| 0063 | 4931454452 | 22.18 | 26.84 | |
| WASHER | ||||
| 0064 | 4931454451 | 1.80 | 2.18 | |
| BOLT | ||||
| 0065 | 4931454450 | 5.40 | 6.53 | |
| REDUCT, GEAR SHAFT | ||||
| 0066 | 4931454472 | 19.01 | 23.00 | |
| SPRING | ||||
| 0067 | 4931454475 | 1.80 | 2.18 | |
| COUPLING SLEEVE | ||||
| 0068 | 4931454474 | 5.40 | 6.53 | |
| WOBBLE PLATE | ||||
| 0069 | 4931466370 | 5.40 | 6.53 | |
| WORM GEAR WHEEL | ||||
| 0070 | 4931454471 | 14.40 | 17.42 | |
| WASHER | ||||
| 0071 | 4931454470 | 1.80 | 2.18 | |
| BALL BEARING | ||||
| 0072 | 4931454469 | 7.20 | 8.71 | |
| SCREW | ||||
| 0073 | 4931436821 | 1.80 | 2.18 | |
| BUSH | ||||
| 0074 | 4931454443 | 4.49 | 5.43 | |
| LOCKING SCREW | ||||
| 0075 | 4931465672 | 1.80 | 2.18 | |
| GEAR BOX | ||||
| 0076 | 4931466371 | 31.68 | 38.33 | |
| DATA PLATE | ||||
| 0077 | 4931454440 | 5.40 | 6.53 | |
| FELT | ||||
| 0078 | 4931454441 | 1.80 | 2.18 | |
| O-RING | ||||
| 0079 | 4931454442 | 1.80 | 2.18 | |
| BALL BEARING | ||||
| 0080 | 4931466372 | 7.20 | 8.71 | |
| MOTOR | ||||
| 0081 | 4931454466 | 88.70 | 107.33 | |
| BALL BEARING | ||||
| 0082 | 4931466373 | 7.20 | 8.71 | |
| CARBON BRUSH | ||||
| 0083 | 4931466721 | 28.51 | 34.50 | |
| SWITCH | ||||
| 0086 | 4931454463 | 19.01 | 23.00 | |
| CAPACITOR | ||||
| 0087 | 4931454462 | 16.20 | 19.60 | |
| MAGNET | ||||
| 0088 | 4931466377 | 1.80 | 2.18 | |
| RETAINER | ||||
| 0089 | 4931454476 | 4.49 | 5.43 | |
| POWER CORD | ||||
| 0090 | 4931466378 | 34.85 | 42.17 | |
| WASHER | ||||
| 0091 | 633525001 | 1.80 | 2.18 | |
| PINION | ||||
| 0092 | 4931454500 | 1.80 | 2.18 | |
| COUPLING SLEEVE | ||||
| 0093 | 4931454499 | 1.80 | 2.18 | |
| CARRYING CASE | ||||
| 0700 | 4931466379 | 63.36 | 76.67 | |
