Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Milwaukee 4000382979 ( PFH20E )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

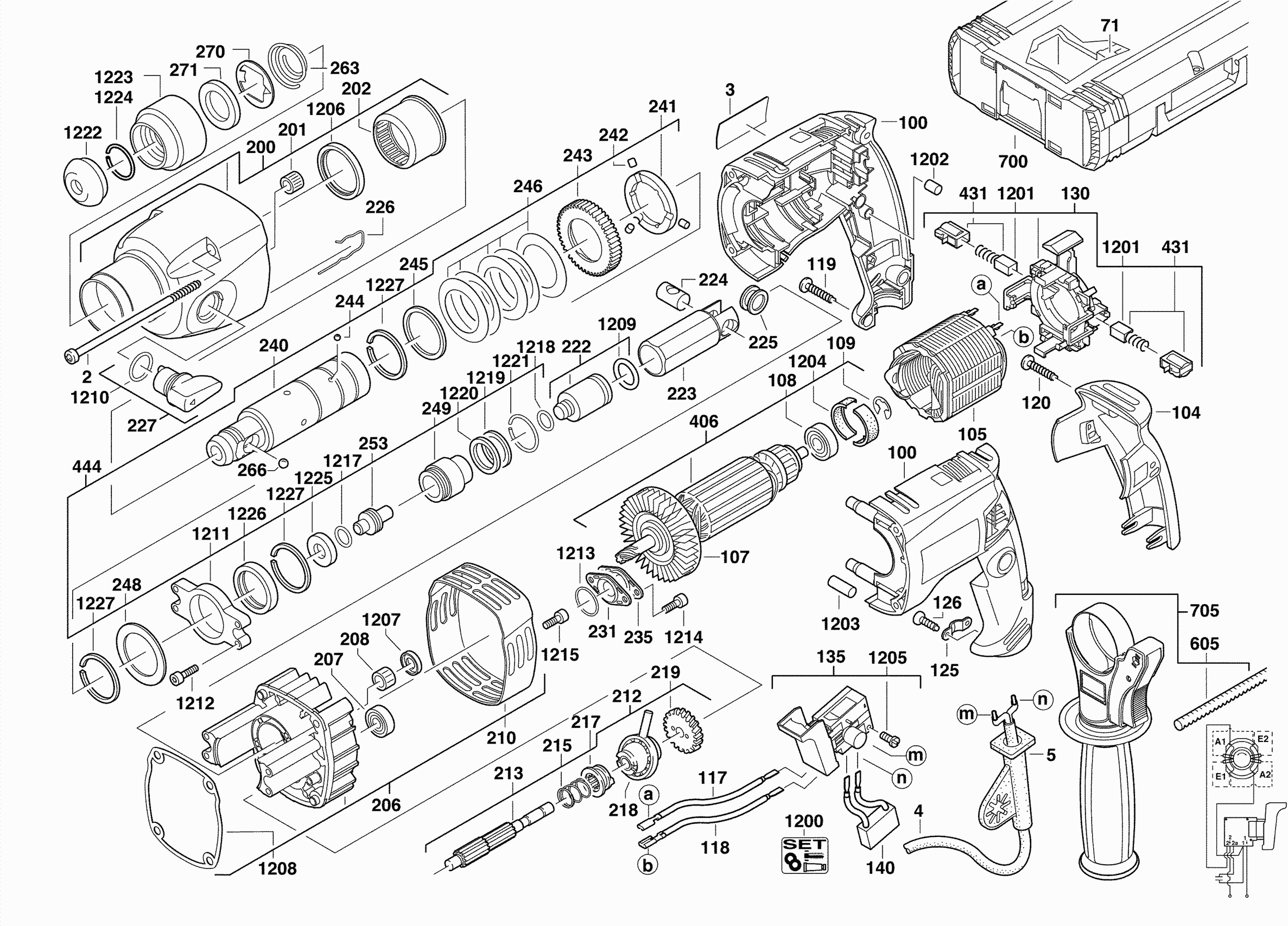

Tekeningen van de Milwaukee 4000382979 ( PFH20E )
Onderdelen lijst van de Milwaukee 4000382979 ( PFH20E )
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| SCREW | ||||
| 0002 | 4931331734 | 1.80 | 2.18 | |
| CONNECTION CABLE | ||||
| 0004 | 4931302112 | 12.60 | 15.25 | |
| Niet meer leverbaar | ||||
| 0005 | 4931364122 | |||
| Carrying Case | ||||
| 0071 | 4931415325 | 30.10 | 36.42 | |
| BODY | ||||
| 0100 | 4931374910 | 14.40 | 17.42 | |
| Niet meer leverbaar | ||||
| 0104 | 4931374488 | |||
| ELECTRIC FIELD | ||||
| 0105 | 4931426176 | 23.76 | 28.75 | |
| FAN | ||||
| 0107 | 4931330633 | 4.49 | 5.43 | |
| BALL BEARING | ||||
| 0108 | 4931624169 | 9.00 | 10.89 | |
| WASHER | ||||
| 0109 | 4931621834 | 1.80 | 2.18 | |
| WIRE | ||||
| 0117 | 4931253700 | 5.40 | 6.53 | |
| SCREW | ||||
| 0119 | 4931618253 | 1.80 | 2.18 | |
| Screw N874101-1 Shr H-k4x22 T15 | ||||
| 0120 | 4931624517 | 1.80 | 2.18 | |
| CABLE COLLAR | ||||
| 0125 | 4931256500 | 5.40 | 6.53 | |
| SCREW | ||||
| 0126 | 4931624538 | 1.80 | 2.18 | |
| SET COLLAR | ||||
| 0130 | 4931374498 | 14.40 | 17.42 | |
| SWITCH BOARD | ||||
| 0135 | 4931382238 | 16.20 | 19.60 | |
| Capacitor | ||||
| 0140 | 4931311062 | 4.49 | 5.43 | |
| GEAR BOX COVER | ||||
| 0200 | 200281025 | 42.77 | 51.75 | |
| NEEDLE BEARING N874989 HK 0709 | ||||
| 0201 | 4931933756 | 1.80 | 2.18 | |
| Niet meer leverbaar | ||||
| 0202 | 4931365065 | |||
| Niet meer leverbaar | ||||
| 0207 | 4931623951 | |||
| NEEDLE BEARING | ||||
| 0208 | 4931219424 | 1.80 | 2.18 | |
| REDUCT, GEAR SHAFT | ||||
| 0213 | 4931365010 | 12.60 | 15.25 | |
| SPRING | ||||
| 0215 | 4931365058 | 1.80 | 2.18 | |
| WOBBLE DRIVE | ||||
| 0218 | 4931387623 | 14.40 | 17.42 | |
| REDUCTION GEAR | ||||
| 0219 | 4931365014 | 12.60 | 15.25 | |
| RAM | ||||
| 0222 | 201233001 | 17.11 | 20.70 | |
| Niet meer leverbaar | ||||
| 0223 | 4931365029 | |||
| CYLINDRICAL BOLT | ||||
| 0224 | 4931387381 | 5.40 | 6.53 | |
| WASHER | ||||
| 0225 | 4931365112 | 1.80 | 2.18 | |
| Niet meer leverbaar | ||||
| 0226 | 4931365047 | |||
| SWITCH HANDLE | ||||
| 0227 | 4931374856 | 4.49 | 5.43 | |
| Niet meer leverbaar | ||||
| 0235 | 4931365135 | |||
| SPINDLE SLEEVE | ||||
| 0240 | 4931374258 | 55.44 | 67.08 | |
| Clutch Disc | ||||
| 0241 | 4931392751 | 5.40 | 6.53 | |
| Cylindrical Bolt | ||||
| 0242 | 4931365057 | 5.40 | 6.53 | |
| SPINDLE GEAR | ||||
| 0243 | 4931407761 | 5.40 | 6.53 | |
| Ball | ||||
| 0244 | 4931944281 | 1.80 | 2.18 | |
| WASHER | ||||
| 0245 | 4931623234 | 1.80 | 2.18 | |
| CUP SPRING | ||||
| 0246 | 4931365066 | 5.40 | 6.53 | |
| WASHER | ||||
| 0248 | 4931623199 | 1.80 | 2.18 | |
| Niet meer leverbaar | ||||
| 0253 | 4931365034 | |||
| PRESSURE SPRING | ||||
| 0263 | 4931343128 | 5.40 | 6.53 | |
| Ball | ||||
| 0266 | 4931911572 | 1.80 | 2.18 | |
| SUPPORT PLATE | ||||
| 0270 | 4931343127 | 5.40 | 6.53 | |
| HOLDING RING | ||||
| 0271 | 4931343126 | 5.40 | 6.53 | |
| CARBON BRUSH SET | ||||
| 0431 | 392563 | 13.68 | 16.55 | |
| Niet meer leverbaar | ||||
| 0444 | 4931407940 | |||
| DEPTH GAUGE | ||||
| 0605 | 4931384434 | 5.40 | 6.53 | |
| Transportkoffer Milwaukee (maat 1) | ||||
| 0700 | 4932378986 | 30.43 | 36.82 | |
| Zijhandgreep | ||||
| 0705 | 4932373725 | 9.93 | 12.02 | |
| CARBON BRUSH SET | ||||
| 1201 | 4931392604 | 10.80 | 13.07 | |
| HOLDING-DOWN DEVICE | ||||
| 1202 | 4931409768 | 5.40 | 6.53 | |
| HOLDING-DOWN DEVICE | ||||
| 1203 | 4931307423 | 5.40 | 6.53 | |
| SCREW | ||||
| 1205 | 4931621772 | 1.80 | 2.18 | |
| SEAL RING N874724 30X37X4 | ||||
| 1206 | 4931623885 | 5.40 | 6.53 | |
| Niet meer leverbaar | ||||
| 1207 | 4931623700 | |||
| SEAL | ||||
| 1208 | 4931379289 | 4.49 | 5.43 | |
| O-ring | ||||
| 1209 | 561994001 | 1.80 | 2.18 | |
| O-RING N874701 16X2 | ||||
| 1210 | 4931920948 | 1.80 | 2.18 | |
| SINTERED BEARING | ||||
| 1211 | 4931365032 | 9.00 | 10.89 | |
| SCREW D912 M4X25 | ||||
| 1212 | 4931623886 | 1.80 | 2.18 | |
| SEAL RING | ||||
| 1213 | 4931623833 | 4.49 | 5.43 | |
| SCREW | ||||
| 1214 | 4931267225 | 1.80 | 2.18 | |
| SCREW | ||||
| 1215 | 4931375897 | 1.80 | 2.18 | |
| SEAL RING | ||||
| 1217 | 4931623783 | 4.49 | 5.43 | |
| O-RING | ||||
| 1218 | 4931387380 | 1.80 | 2.18 | |
| DISC N874237 A18,1X23,6X1 | ||||
| 1219 | 4931622160 | 4.49 | 5.43 | |
| O-RING | ||||
| 1220 | 4931943504 | 1.80 | 2.18 | |
| SPRING RING | ||||
| 1221 | 4931623860 | 4.49 | 5.43 | |
| CAP | ||||
| 1222 | 4931343123 | 5.40 | 6.53 | |
| Niet meer leverbaar | ||||
| 1223 | 4931365054 | |||
| SPRING RING | ||||
| 1224 | 4931623220 | 5.40 | 6.53 | |
| STOP WASHER | ||||
| 1225 | 4931374728 | 3.60 | 4.36 | |
| DAMPING RING | ||||
| 1226 | 4931365188 | 4.49 | 5.43 | |
| Spring Ring | ||||
| 1227 | 4931945764 | 5.40 | 6.53 | |
