Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Milwaukee 4000380797 ( PD2E24RST )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

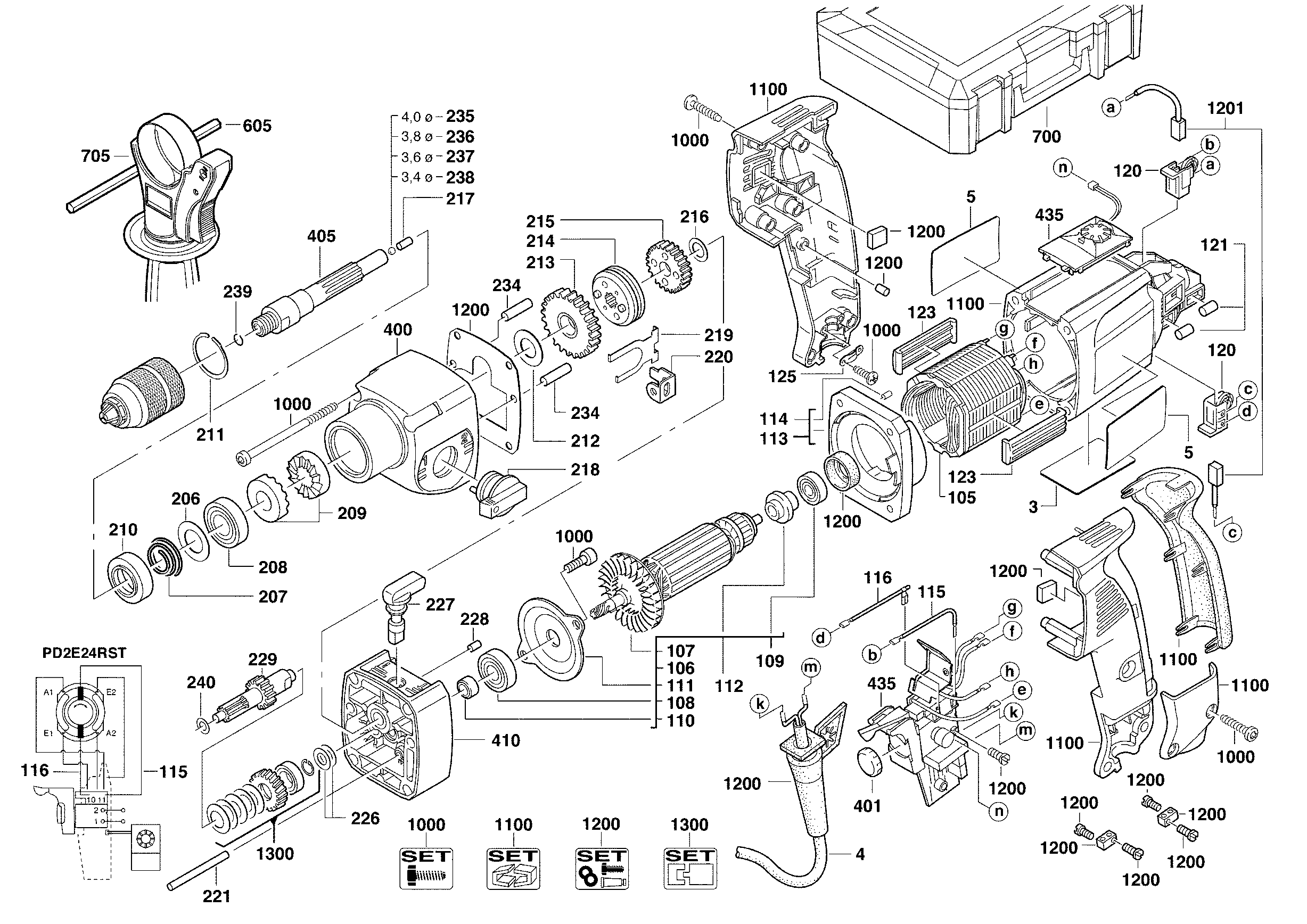

Tekeningen van de Milwaukee 4000380797 ( PD2E24RST )
Onderdelen lijst van de Milwaukee 4000380797 ( PD2E24RST )
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| RATING PLATE | ||||
| 0003 | 4931380800 | 1.80 | 2.18 | |
| CONNECTION CABLE | ||||
| 0004 | 4931622896 | 12.60 | 15.25 | |
| RATING PLATE | ||||
| 0005 | 4931455678 | 1.80 | 2.18 | |
| Niet meer leverbaar | ||||
| 0105 | 4931426601 | |||
| Niet meer leverbaar | ||||
| 0106 | 4931426549 | |||
| FAN | ||||
| 0107 | 4931342793 | 5.40 | 6.53 | |
| GROOVED BALL BEAR, | ||||
| 0108 | 4931368037 | 5.40 | 6.53 | |
| BALL BEARING | ||||
| 0109 | 4931901253 | 9.00 | 10.89 | |
| SLEEVE | ||||
| 0110 | 4931302748 | 4.49 | 5.43 | |
| BEARING COVER | ||||
| 0111 | 4931267585 | 4.49 | 5.43 | |
| INSULATING DISC | ||||
| 0112 | 4931331800 | 5.40 | 6.53 | |
| AIR DEFLECTOR RING | ||||
| 0113 | 4931380470 | 7.20 | 8.71 | |
| HOLDING-DOWN DEVICE | ||||
| 0114 | 4931332524 | 5.40 | 6.53 | |
| WIRE | ||||
| 0115 | 4931623349 | 4.49 | 5.43 | |
| WIRE | ||||
| 0116 | 4931623355 | 4.49 | 5.43 | |
| BRUSH HOLDER | ||||
| 0120 | 4931382268 | 5.40 | 6.53 | |
| ROLL | ||||
| 0121 | 4931623123 | 4.49 | 5.43 | |
| CENTERING LEDGE | ||||
| 0123 | 4931326971 | 4.49 | 5.43 | |
| CABLE COLLAR | ||||
| 0125 | 4931256500 | 5.40 | 6.53 | |
| MODIFICATION SET | ||||
| 0135 | 4931417945 | 47.52 | 57.50 | |
| DISC | ||||
| 0206 | 4931621809 | 5.40 | 6.53 | |
| PRESSURE SPRING | ||||
| 0207 | 4931267406 | 5.40 | 6.53 | |
| BALL BEARING | ||||
| 0208 | 4931891058 | 9.00 | 10.89 | |
| PERCUSSION SLEEVE | ||||
| 0209 | 4931267571 | 3.60 | 4.36 | |
| SEAL RING | ||||
| 0210 | 4931267522 | 5.40 | 6.53 | |
| LOCKING RING | ||||
| 0211 | 4931890311 | 5.40 | 6.53 | |
| DISC | ||||
| 0212 | 4931621647 | 1.80 | 2.18 | |
| DRILL SPINDLE WHEEL | ||||
| 0213 | 4931426230 | 9.00 | 10.89 | |
| SHIFT RING COMPL, | ||||
| 0214 | 4931307130 | 15.84 | 19.17 | |
| DRILL SPINDLE WHEEL | ||||
| 0215 | 4931426231 | 9.00 | 10.89 | |
| DISC | ||||
| 0216 | 4931621679 | 5.40 | 6.53 | |
| PIN | ||||
| 0217 | 4931805526 | 5.40 | 6.53 | |
| SWITCH LEVER | ||||
| 0218 | 4931339525 | 5.40 | 6.53 | |
| RETAINING SPRING | ||||
| 0219 | 4931307118 | 5.40 | 6.53 | |
| SWITCH LEVER | ||||
| 0220 | 4931267576 | 5.40 | 6.53 | |
| PIN | ||||
| 0221 | 4931621731 | 5.40 | 6.53 | |
| WASHER | ||||
| 0226 | 4931623164 | 1.80 | 2.18 | |
| SWITCH LEVER | ||||
| 0227 | 4931339526 | 5.40 | 6.53 | |
| PIN | ||||
| 0228 | 4931621770 | 5.40 | 6.53 | |
| REDUCTION GEAR | ||||
| 0229 | 4931342887 | 57.02 | 68.99 | |
| PIN | ||||
| 0234 | 4931621732 | 5.40 | 6.53 | |
| Ball | ||||
| 0235 | 4931805390 | 1.80 | 2.18 | |
| BALL | ||||
| 0236 | 4931621735 | 1.80 | 2.18 | |
| BALL | ||||
| 0237 | 4931621736 | 1.80 | 2.18 | |
| BALL | ||||
| 0238 | 4931621737 | 1.80 | 2.18 | |
| RING SPRING | ||||
| 0239 | 4931302074 | 4.49 | 5.43 | |
| DISC | ||||
| 0240 | 4931621715 | 5.40 | 6.53 | |
| GEAR BOX | ||||
| 0400 | 4931380476 | 38.02 | 46.00 | |
| SET WHEEL | ||||
| 0401 | 4931356599 | 5.40 | 6.53 | |
| DRILL SPINDLE | ||||
| 0405 | 4931307039 | 17.42 | 21.08 | |
| BEARING END PLATE | ||||
| 0410 | 4931380475 | 34.85 | 42.17 | |
| Niet meer leverbaar | ||||
| 0435 | 4931380803 | |||
| DEPTH GAUGE | ||||
| 0605 | 4931384434 | 5.40 | 6.53 | |
| Carrying Case | ||||
| 0700 | 4931415325 | 30.10 | 36.42 | |
| Snelspanboorhouder 1.0 - 13 - x 20 | ||||
| 0701 | 4932364266 | 63.16 | 76.42 | |
| Zijhandgreep | ||||
| 0705 | 4932373725 | 9.93 | 12.02 | |
| BOLT SET | ||||
| 1000 | 4931364668 | 14.40 | 17.42 | |
| BODY | ||||
| 1100 | 4931380477 | 20.59 | 24.91 | |
| MAINTENANCE SET | ||||
| 1200 | 4931347472 | 34.85 | 42.17 | |
| Carbon Brush Set | ||||
| 1201 | 4931392596 | 15.29 | 18.50 | |
| COUPLING SET | ||||
| 1300 | 4931347492 | 33.26 | 40.24 | |
