Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Milwaukee 4000396024 ( PD2-10 )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

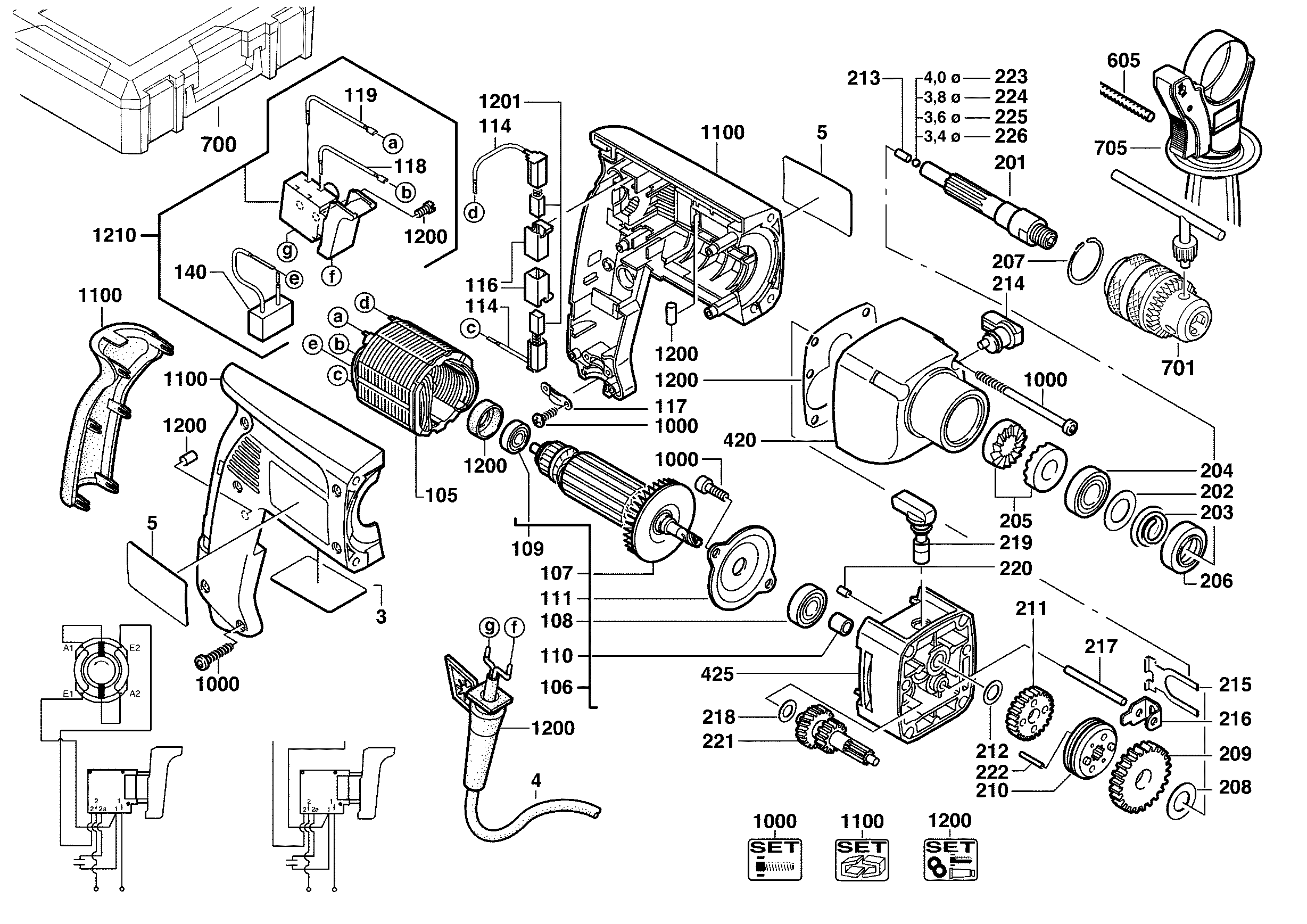

Tekeningen van de Milwaukee 4000396024 ( PD2-10 )
Onderdelen lijst van de Milwaukee 4000396024 ( PD2-10 )
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| RATING PLATE | ||||
| 0003 | 4931396028 | 1.80 | 2.18 | |
| CONNECTION CABLE | ||||
| 0004 | 4931623997 | 15.84 | 19.17 | |
| TYPE PLATE | ||||
| 0005 | 4931378806 | 5.40 | 6.53 | |
| ARMATURE | ||||
| 0106 | 4931426257 | 52.27 | 63.25 | |
| FAN | ||||
| 0107 | 4931302487 | 4.49 | 5.43 | |
| GROOVED BALL BEAR, | ||||
| 0108 | 4931368037 | 5.40 | 6.53 | |
| BALL BEARING | ||||
| 0109 | 4931901253 | 9.00 | 10.89 | |
| BUSHING | ||||
| 0110 | 4931343243 | 4.49 | 5.43 | |
| BEARING COVER | ||||
| 0111 | 4931267585 | 4.49 | 5.43 | |
| BRUSH HOLDER | ||||
| 0114 | 4931623385 | 4.49 | 5.43 | |
| BRUSH HOLDER | ||||
| 0116 | 4931315039 | 5.40 | 6.53 | |
| CABLE COLLAR | ||||
| 0117 | 4931256500 | 5.40 | 6.53 | |
| WIRE | ||||
| 0118 | 4931623371 | 4.49 | 5.43 | |
| WIRE | ||||
| 0119 | 4931623372 | 4.49 | 5.43 | |
| DRILL SPINDLE | ||||
| 0201 | 4931409811 | 12.60 | 15.25 | |
| DISC | ||||
| 0202 | 4931621809 | 5.40 | 6.53 | |
| PRESSURE SPRING | ||||
| 0203 | 4931267406 | 5.40 | 6.53 | |
| BALL BEARING | ||||
| 0204 | 4931891058 | 9.00 | 10.89 | |
| PERCUSSION SLEEVE | ||||
| 0205 | 4931267571 | 3.60 | 4.36 | |
| SEAL RING | ||||
| 0206 | 4931267522 | 5.40 | 6.53 | |
| LOCKING RING | ||||
| 0207 | 4931890311 | 5.40 | 6.53 | |
| DISC | ||||
| 0208 | 4931621647 | 1.80 | 2.18 | |
| DRILL SPINDLE WHEEL | ||||
| 0209 | 4931426230 | 9.00 | 10.89 | |
| SHIFT RING COMPL, | ||||
| 0210 | 4931307130 | 15.84 | 19.17 | |
| DRILL SPINDLE WHEEL | ||||
| 0211 | 4931426231 | 9.00 | 10.89 | |
| DISC | ||||
| 0212 | 4931621679 | 5.40 | 6.53 | |
| PIN | ||||
| 0213 | 4931805526 | 5.40 | 6.53 | |
| SWITCH LEVER | ||||
| 0214 | 4931339525 | 5.40 | 6.53 | |
| RETAINING SPRING | ||||
| 0215 | 4931307118 | 5.40 | 6.53 | |
| SWITCH LEVER | ||||
| 0216 | 4931267576 | 5.40 | 6.53 | |
| PIN | ||||
| 0217 | 4931621731 | 5.40 | 6.53 | |
| DISC | ||||
| 0218 | 4931621715 | 5.40 | 6.53 | |
| SWITCH LEVER | ||||
| 0219 | 4931339526 | 5.40 | 6.53 | |
| PIN | ||||
| 0220 | 4931621770 | 5.40 | 6.53 | |
| REDUCTION GEAR | ||||
| 0221 | 4931267582 | 39.60 | 47.92 | |
| PIN | ||||
| 0222 | 4931621732 | 5.40 | 6.53 | |
| Ball | ||||
| 0223 | 4931805390 | 1.80 | 2.18 | |
| BALL | ||||
| 0224 | 4931621735 | 1.80 | 2.18 | |
| BALL | ||||
| 0225 | 4931621736 | 1.80 | 2.18 | |
| BALL | ||||
| 0226 | 4931621737 | 1.80 | 2.18 | |
| GEAR BOX | ||||
| 0420 | 4931380479 | 49.10 | 59.41 | |
| BEARING END PLATE | ||||
| 0425 | 4931380480 | 31.68 | 38.33 | |
| DEPTH GAUGE | ||||
| 0605 | 4931384434 | 5.40 | 6.53 | |
| Tandkransboorhouder 1,5 - 13 mm, 1/2 x 20 | ||||
| 0701 | 4932267980 | 13.66 | 16.53 | |
| Zijhandgreep | ||||
| 0705 | 4932373725 | 9.93 | 12.02 | |
| BOLT SET | ||||
| 1000 | 4931344833 | 14.40 | 17.42 | |
| HOUSING | ||||
| 1100 | 4931359606 | 25.34 | 30.66 | |
| Niet meer leverbaar | ||||
| 1200 | 4931380959 | |||
| CARBON BRUSH SET | ||||
| 1201 | 4931392580 | 17.11 | 20.70 | |
| REPAIR KIT | ||||
| 1210 | 4931387264 | 31.68 | 38.33 | |
