Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Milwaukee 4000384846 ( MD38COMPACT )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

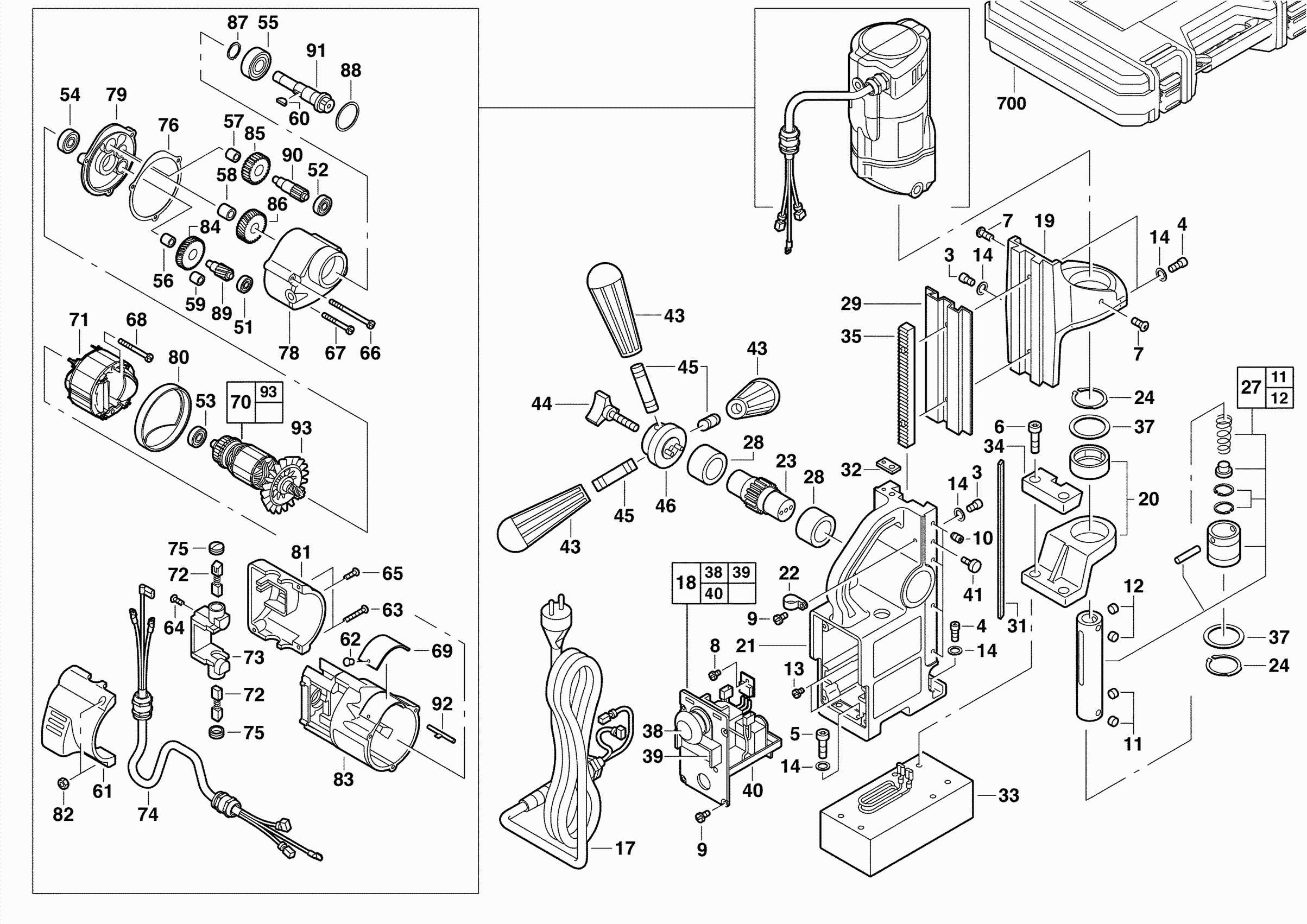

Tekeningen van de Milwaukee 4000384846 ( MD38COMPACT )
Onderdelen lijst van de Milwaukee 4000384846 ( MD38COMPACT )
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| SCREW | ||||
| 0003 | 06752900 | 1.73 | 2.09 | |
| SCREW | ||||
| 0004 | 06753005 | 1.73 | 2.09 | |
| Niet meer leverbaar | ||||
| 0005 | 06753100 | |||
| SCREW | ||||
| 0006 | 06755865 | 1.73 | 2.09 | |
| SCREW | ||||
| 0007 | 06814770 | 1.73 | 2.09 | |
| Niet meer leverbaar | ||||
| 0008 | 06818655 | |||
| SCREW | ||||
| 0009 | 06827252 | 1.73 | 2.09 | |
| HEADLESS SOCK,HEAD | ||||
| 0010 | 06831650 | 1.73 | 2.09 | |
| SCREW | ||||
| 0011 | 06835170 | 1.73 | 2.09 | |
| SCREW | ||||
| 0012 | 06836015 | 1.73 | 2.09 | |
| SCREW | ||||
| 0013 | 06818625 | 1.73 | 2.09 | |
| WASHER | ||||
| 0014 | 06974050 | 1.73 | 2.09 | |
| CONNECTION CABLE | ||||
| 0017 | 22640950 | 44.35 | 53.66 | |
| CONTROL PANEL KIT | ||||
| 0018 | 23350380 | 378.58 | 458.08 | |
| STABILIZER | ||||
| 0020 | 14465405 | 96.62 | 116.91 | |
| BODY | ||||
| 0021 | 28500600 | 405.50 | 490.66 | |
| Niet meer leverbaar | ||||
| 0022 | 31170185 | |||
| WORM SCREW | ||||
| 0023 | 32600200 | 41.18 | 49.83 | |
| RING | ||||
| 0024 | 34603690 | 4.49 | 5.43 | |
| CUTTING HEAD | ||||
| 0027 | 14730290 | 69.70 | 84.34 | |
| COVER | ||||
| 0029 | 42401055 | 19.01 | 23.00 | |
| PLATE | ||||
| 0031 | 43480150 | 5.40 | 6.53 | |
| RATCHET | ||||
| 0032 | 43940070 | 4.32 | 5.23 | |
| MAGNET | ||||
| 0033 | 44260080 | 411.84 | 498.33 | |
| DISTANCE HOLDER | ||||
| 0034 | 44666220 | 38.02 | 46.00 | |
| RACK | ||||
| 0035 | 44800200 | 30.16 | 36.49 | |
| SHIM | ||||
| 0037 | 45140290 | 4.49 | 5.43 | |
| SWITCH | ||||
| 0038 | 23662315 | 145.73 | 176.33 | |
| SWITCH MAGNETIC | ||||
| 0039 | 23662295 | 166.32 | 201.25 | |
| ELECTRIC ELEMENT | ||||
| 0040 | 14201205 | 177.41 | 214.67 | |
| HANDLE PLASTIC HANDLE | ||||
| 0043 | 43980095 | 15.29 | 18.50 | |
| SCREW | ||||
| 0044 | 06872550 | 3.46 | 4.19 | |
| EXTENSION PIECE | ||||
| 0045 | 43620090 | 9.00 | 10.89 | |
| Heavy | ||||
| 0046 | 14465400 | 22.18 | 26.84 | |
| BALL BEARING | ||||
| 0051 | 02040640 | 8.64 | 10.45 | |
| BALL BEARING | ||||
| 0052 | 02040820 | 8.64 | 10.45 | |
| Ball Bearing | ||||
| 0053 | 02040845 | 8.64 | 10.45 | |
| BALL BEARING | ||||
| 0054 | 02040911 | 8.64 | 10.45 | |
| BALL BEARING | ||||
| 0055 | 02041536 | 8.64 | 10.45 | |
| NEEDLE BEARING | ||||
| 0056 | 02501640 | 16.43 | 19.88 | |
| NEEDLE BEARING | ||||
| 0058 | 02502440 | 12.10 | 14.64 | |
| KEY | ||||
| 0059 | 06420800 | 4.32 | 5.23 | |
| KEY | ||||
| 0060 | 06422000 | 1.73 | 2.09 | |
| NUT | ||||
| 0061 | 06550835 | 4.32 | 5.23 | |
| Niet meer leverbaar | ||||
| 0062 | 1000063920 | |||
| SCREW | ||||
| 0063 | 06822390 | 1.73 | 2.09 | |
| SCREW | ||||
| 0064 | 06827240 | 1.73 | 2.09 | |
| Niet meer leverbaar | ||||
| 0065 | 06829207 | |||
| Niet meer leverbaar | ||||
| 0066 | 06827375 | |||
| Niet meer leverbaar | ||||
| 0067 | 06827382 | |||
| SCREW | ||||
| 0068 | 06827410 | 1.73 | 2.09 | |
| Niet meer leverbaar | ||||
| 0069 | 1000063920 | |||
| ARMATURE | ||||
| 0070 | 16340490 | 117.22 | 141.84 | |
| Niet meer leverbaar | ||||
| 0071 | 18320532 | |||
| BRUSH | ||||
| 0072 | 22181015 | 16.20 | 19.60 | |
| CARBON HOLDER | ||||
| 0073 | 22221385 | 9.00 | 10.89 | |
| CONNECTION CABLE | ||||
| 0074 | 22643295 | 38.02 | 46.00 | |
| COVER PLATE | ||||
| 0075 | 23440145 | 4.49 | 5.43 | |
| SEAL | ||||
| 0076 | 43441075 | 4.49 | 5.43 | |
| GEAR CASE | ||||
| 0078 | 28141922 | 28.51 | 34.50 | |
| BEARING END PLATE | ||||
| 0079 | 28280611 | 17.42 | 21.08 | |
| AIR DEFLECTOR RING | ||||
| 0080 | 31050055 | 3.60 | 4.36 | |
| MOTOR CAP | ||||
| 0081 | 31152060 | 8.64 | 10.45 | |
| MOTOR CAP | ||||
| 0082 | 31152061 | 9.00 | 10.89 | |
| HOUSING MOTOR SIDE | ||||
| 0083 | 31500020 | 10.80 | 13.07 | |
| GEAR BOX | ||||
| 0084 | 32401251 | 19.01 | 23.00 | |
| GEAR BOX | ||||
| 0085 | 32752051 | 20.59 | 24.91 | |
| SPINDLE GEAR | ||||
| 0086 | 32752651 | 22.18 | 26.84 | |
| RING | ||||
| 0087 | 34601200 | 5.40 | 6.53 | |
| RING | ||||
| 0088 | 34802500 | 5.40 | 6.53 | |
| SHAFT | ||||
| 0089 | 36662811 | 25.34 | 30.66 | |
| PINION | ||||
| 0090 | 36663980 | 23.76 | 28.75 | |
| DRIVING SHAFT | ||||
| 0091 | 38505485 | 28.51 | 34.50 | |
| Niet meer leverbaar | ||||
| 0092 | 44600530 | |||
| Fan | ||||
| 0093 | 22840531 | 5.40 | 6.53 | |
