Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Milwaukee 4000440616 ( MCS66 )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

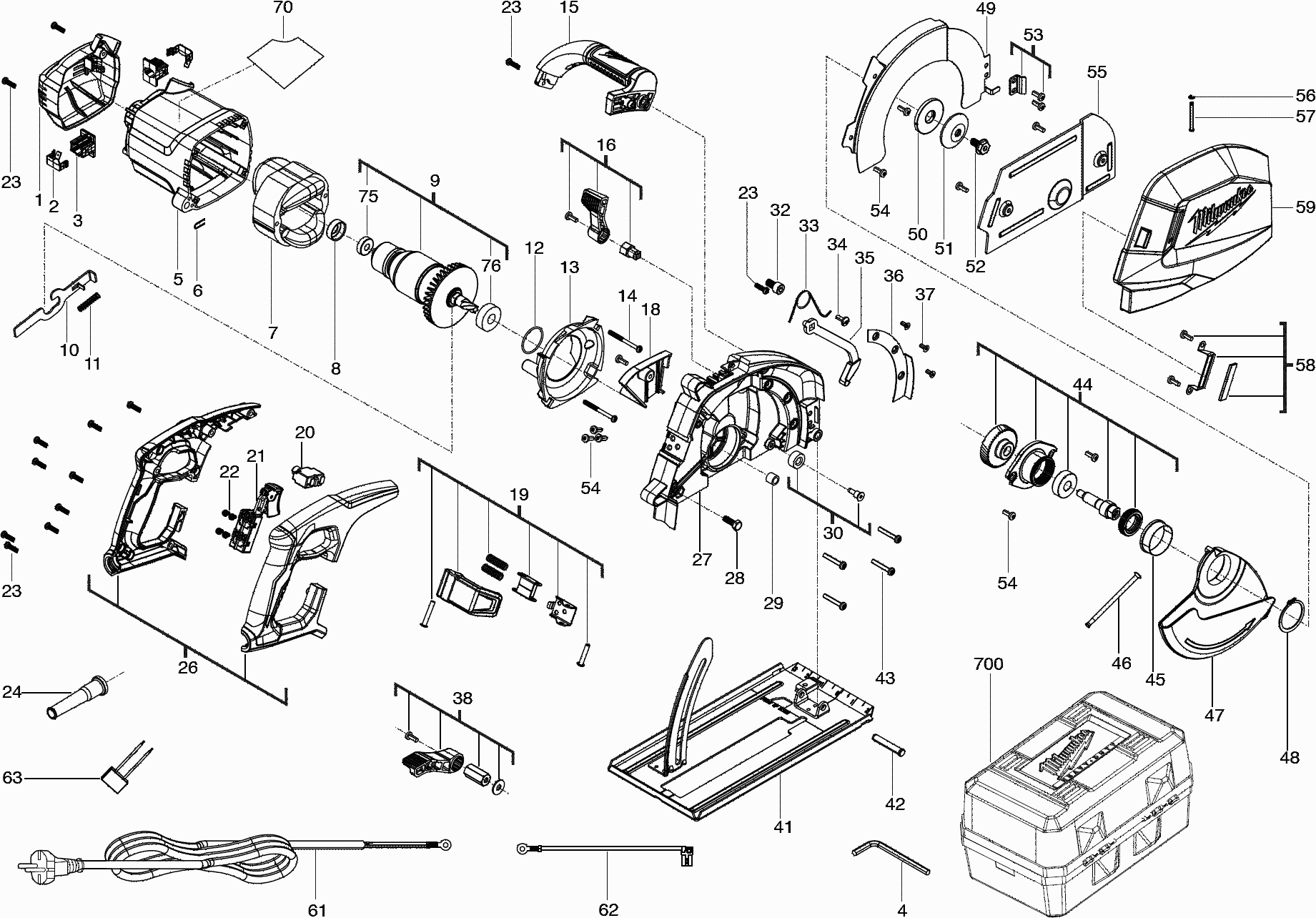

Tekeningen van de Milwaukee 4000440616 ( MCS66 )
Onderdelen lijst van de Milwaukee 4000440616 ( MCS66 )
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| MOTOR HOUSING | ||||
| 0001 | 4931435679 | 5.40 | 6.53 | |
| CARBON BRUSH | ||||
| 0002 | 4931435680 | 10.80 | 13.07 | |
| BRUSH HOLDER | ||||
| 0003 | 22220030 | 5.40 | 6.53 | |
| MOTOR HOUSING | ||||
| 0005 | 4931435681 | 17.11 | 20.70 | |
| SPRING WASHER | ||||
| 0006 | 4931435682 | 1.80 | 2.18 | |
| ELECTRIC FIELD | ||||
| 0007 | 4931440622 | 63.36 | 76.67 | |
| RUBBER BUFFER | ||||
| 0008 | 4931435683 | 5.40 | 6.53 | |
| ARMATURE | ||||
| 0009 | 4931435684 | 80.78 | 97.74 | |
| SPINDLE LOCK | ||||
| 0010 | 4931435685 | 5.40 | 6.53 | |
| SPINDLE LOCK | ||||
| 0011 | 4931435686 | 5.40 | 6.53 | |
| O-ring | ||||
| 0012 | 34401375 | 1.80 | 2.18 | |
| AIR DEFLECTOR RING | ||||
| 0013 | 4931435687 | 4.49 | 5.43 | |
| Niet meer leverbaar | ||||
| 0014 | 660986001 | |||
| HANDLE | ||||
| 0015 | 4931435688 | 16.20 | 19.60 | |
| SAFTY GUARD | ||||
| 0016 | 4931435689 | 4.49 | 5.43 | |
| PROTECTING COVER | ||||
| 0018 | 4931435690 | 5.40 | 6.53 | |
| LOCK | ||||
| 0019 | 4931435691 | 5.40 | 6.53 | |
| FUSE | ||||
| 0020 | 4931435692 | 15.84 | 19.17 | |
| SWITCH | ||||
| 0021 | 4931435693 | 22.18 | 26.84 | |
| SCREW | ||||
| 0023 | 06827270 | 1.73 | 2.09 | |
| CABLE ENTRY SLEEVE | ||||
| 0024 | 44760210 | 1.80 | 2.18 | |
| HANDLE | ||||
| 0026 | 4931435694 | 16.20 | 19.60 | |
| GEAR BOX | ||||
| 0027 | 4931435695 | 76.03 | 92.00 | |
| SCREW | ||||
| 0028 | 06755860 | 4.32 | 5.23 | |
| NEEDLE BEARING | ||||
| 0029 | 4931435696 | 1.80 | 2.18 | |
| GUARD | ||||
| 0030 | 42380222 | 1.80 | 2.18 | |
| SCREW | ||||
| 0032 | 4931435697 | 1.80 | 2.18 | |
| SPRING | ||||
| 0033 | 4931435698 | 1.80 | 2.18 | |
| Niet meer leverbaar | ||||
| 0034 | 4931435699 | |||
| Niet meer leverbaar | ||||
| 0035 | 4931435700 | |||
| PUNCH GUIDE | ||||
| 0036 | 4931435701 | 5.40 | 6.53 | |
| SCREW | ||||
| 0037 | 4931435702 | 1.80 | 2.18 | |
| Lever for depth gauge | ||||
| 0038 | 4931435703 | 15.29 | 18.50 | |
| BASE PLATE | ||||
| 0041 | 4931435704 | 28.51 | 34.50 | |
| PIN | ||||
| 0042 | 44601180 | 5.40 | 6.53 | |
| SCREW | ||||
| 0043 | 4931435705 | 1.80 | 2.18 | |
| ECCENTRIC SHAFT | ||||
| 0044 | 4931435706 | 53.86 | 65.17 | |
| PROTECTIVE SLEEVE | ||||
| 0045 | 4931435707 | 5.40 | 6.53 | |
| SPRING | ||||
| 0046 | 40500045 | 1.80 | 2.18 | |
| HOUSING | ||||
| 0047 | 4931435708 | 28.51 | 34.50 | |
| THRUST COLLAR | ||||
| 0048 | 34600860 | 1.80 | 2.18 | |
| GUARD | ||||
| 0049 | 4931435709 | 10.80 | 13.07 | |
| FLANGE | ||||
| 0050 | 4931435710 | 5.40 | 6.53 | |
| FLANGE | ||||
| 0051 | 4931435711 | 6.31 | 7.64 | |
| SCREW | ||||
| 0052 | 660988001 | 1.80 | 2.18 | |
| COVER | ||||
| 0053 | 4931435712 | 5.40 | 6.53 | |
| SCREW TORX SCREW | ||||
| 0054 | 06825314 | 3.60 | 4.36 | |
| STAMP | ||||
| 0055 | 4931435713 | 9.00 | 10.89 | |
| SPRING | ||||
| 0056 | 4931435714 | 1.80 | 2.18 | |
| CLAMPING BOLT | ||||
| 0057 | 4931435715 | 5.40 | 6.53 | |
| GUARD | ||||
| 0058 | 4931435716 | 4.49 | 5.43 | |
| COVER | ||||
| 0059 | 4931435717 | 38.02 | 46.00 | |
| CONNECTION CABLE | ||||
| 0061 | 4931435718 | 22.18 | 26.84 | |
| Niet meer leverbaar | ||||
| 0062 | 4931435719 | |||
| CAPACITOR | ||||
| 0063 | 4931435720 | 5.40 | 6.53 | |
| Niet meer leverbaar | ||||
| 0070 | 4931435721 | |||
| BALL BEARING | ||||
| 0075 | 4931435722 | 9.00 | 10.89 | |
| BALL BEARING | ||||
| 0076 | 4931435723 | 9.00 | 10.89 | |
| CARRYING CASE | ||||
| 0700 | 4931435724 | 91.87 | 111.16 | |
