Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Milwaukee 4000469696 ( M18FHM-0C )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

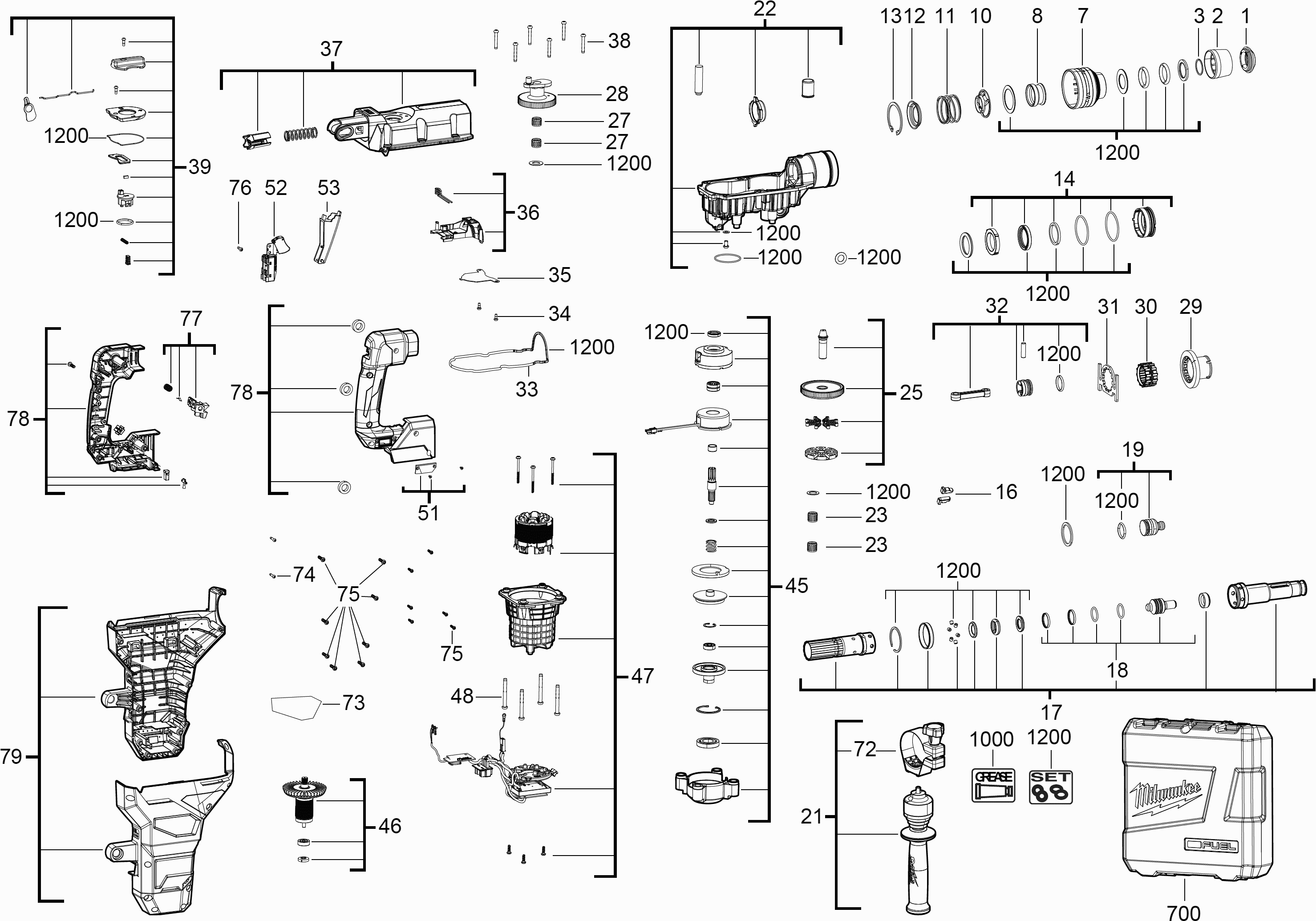

Tekeningen van de Milwaukee 4000469696 ( M18FHM-0C )
Onderdelen lijst van de Milwaukee 4000469696 ( M18FHM-0C )
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| RUBBER CAP | ||||
| 0001 | 4931435353 | 5.40 | 6.53 | |
| CAP | ||||
| 0002 | 4931435133 | 1.80 | 2.18 | |
| HOLDING RING | ||||
| 0003 | 4931435134 | 1.90 | 2.30 | |
| COLLAR | ||||
| 0007 | 4931435138 | 3.60 | 4.36 | |
| INTERLOCK SLEAVE | ||||
| 0008 | 4931435139 | 19.01 | 23.00 | |
| HOLDING PLATE | ||||
| 0010 | 4931466761 | 4.42 | 5.35 | |
| SPRING | ||||
| 0011 | 4931435140 | 1.80 | 2.18 | |
| PLATE | ||||
| 0012 | 633152001 | 4.49 | 5.43 | |
| PROTECTION WASHER | ||||
| 0013 | 4931435141 | 1.90 | 2.30 | |
| BEARING END PLATE | ||||
| 0014 | 4931466634 | 27.72 | 33.54 | |
| CAM | ||||
| 0016 | 4931435144 | 10.80 | 13.07 | |
| SPINDLE KIT | ||||
| 0017 | 4931466635 | 285.12 | 345.00 | |
| SNAP DIE | ||||
| 0018 | 4931466636 | 91.87 | 111.16 | |
| PERCUSSION BODY | ||||
| 0019 | 4931466637 | 41.18 | 49.83 | |
| AUXILIARY HANDLE | ||||
| 0021 | 4931466638 | 76.03 | 92.00 | |
| GEAR BOX | ||||
| 0022 | 4931466639 | 155.23 | 187.83 | |
| NEEDLE BEARING | ||||
| 0023 | 4931466640 | 5.40 | 6.53 | |
| SLIP CLUTCH | ||||
| 0025 | 4931466641 | 128.30 | 155.24 | |
| NEEDLE BEARING | ||||
| 0027 | 4931435168 | 9.00 | 10.89 | |
| CRANK WHEEL | ||||
| 0028 | 4931466642 | 83.95 | 101.58 | |
| BEVEL GEAR | ||||
| 0029 | 4931466643 | 85.54 | 103.50 | |
| SET COLLAR | ||||
| 0030 | 4931466644 | 15.84 | 19.17 | |
| LOCKING PLATE | ||||
| 0031 | 4931466645 | 7.20 | 8.71 | |
| PISTON | ||||
| 0032 | 4931466646 | 25.34 | 30.66 | |
| SCREW | ||||
| 0034 | 661189001 | 1.80 | 2.18 | |
| LATCH PLATE | ||||
| 0035 | 4931466647 | 5.40 | 6.53 | |
| ADJUSTING PIECE | ||||
| 0036 | 4931466648 | 10.80 | 13.07 | |
| GEAR BOX COVER | ||||
| 0037 | 4931466649 | 33.26 | 40.24 | |
| SCREW | ||||
| 0038 | 4931435158 | 1.80 | 2.18 | |
| SWITCH | ||||
| 0039 | 4931466650 | 20.59 | 24.91 | |
| COUPLING SET | ||||
| 0045 | 4931466651 | 323.14 | 391.00 | |
| ARMATURE ASSEMBLY | ||||
| 0046 | 4931466652 | 115.63 | 139.91 | |
| MOTOR ASSEMBLY | ||||
| 0047 | 4931466653 | 552.82 | 668.91 | |
| SCREW | ||||
| 0048 | 4931466654 | 1.80 | 2.18 | |
| PROTECTIVE CAP | ||||
| 0051 | 4931466655 | 5.40 | 6.53 | |
| SWITCH | ||||
| 0052 | 4931465965 | 28.51 | 34.50 | |
| SWITCH COVER | ||||
| 0053 | 4931466656 | 1.80 | 2.18 | |
| BAND | ||||
| 0072 | 4931466657 | 33.26 | 40.24 | |
| RATING PLATE | ||||
| 0073 | 4931466658 | 1.80 | 2.18 | |
| SCREW | ||||
| 0074 | 660031017 | 1.90 | 2.30 | |
| SCREW | ||||
| 0075 | 4931466659 | 1.80 | 2.18 | |
| Niet meer leverbaar | ||||
| 0076 | 4931447515 | |||
| LOCKING PIECE | ||||
| 0077 | 4931466660 | 7.20 | 8.71 | |
| HANDLE SET | ||||
| 0078 | 4931466661 | 44.35 | 53.66 | |
| HOUSING | ||||
| 0079 | 4931466662 | 82.37 | 99.67 | |
| CARRYING CASE | ||||
| 0700 | 4931466663 | 128.30 | 155.24 | |
| GREASE | ||||
| 1000 | 4931455865 | 23.76 | 28.75 | |
| MAINTENANCE SET | ||||
| 1200 | 4931466664 | 121.97 | 147.58 | |
