Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Milwaukee 4000460936 ( M18FFSDC10-0 )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

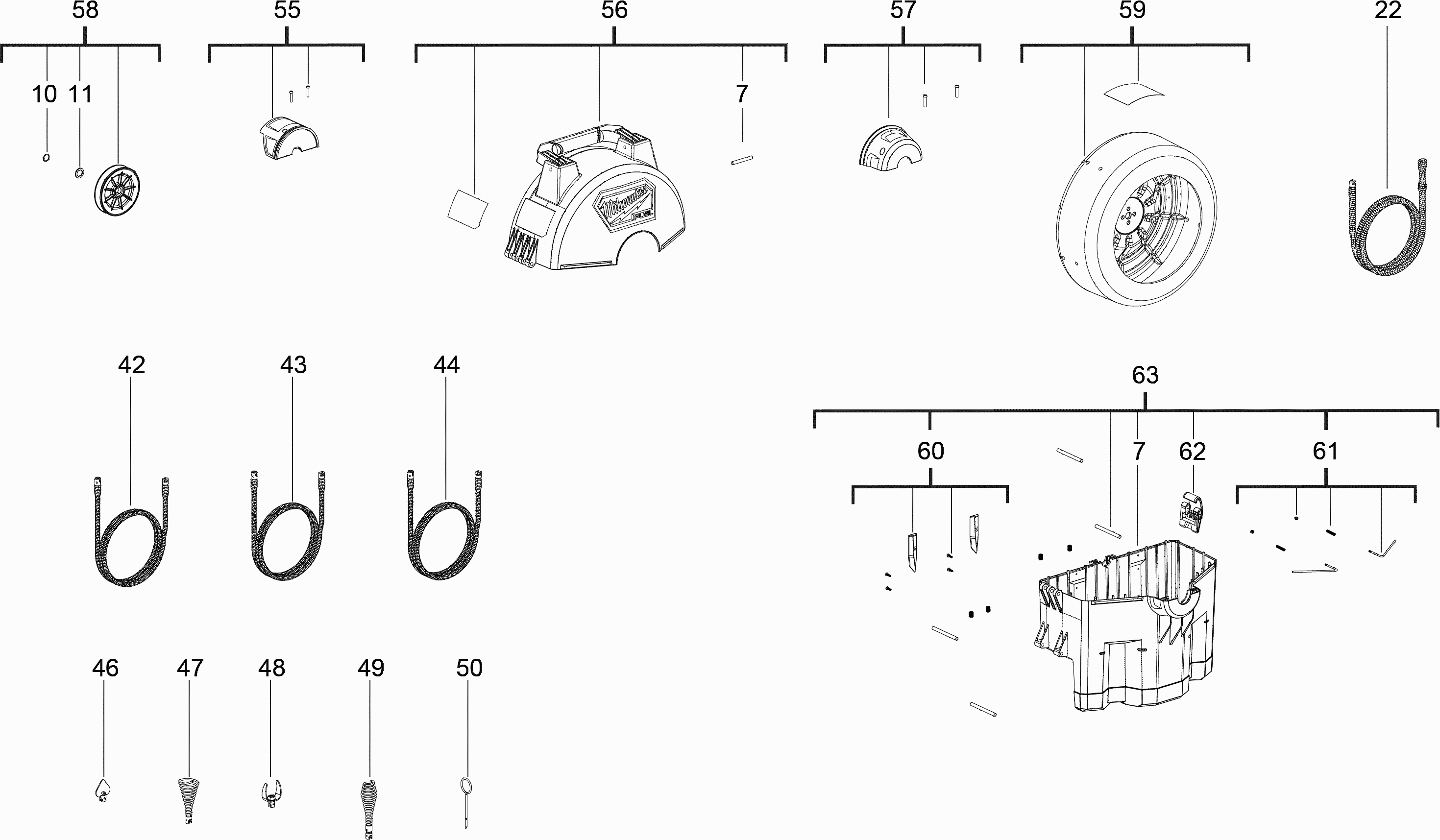

Tekeningen van de Milwaukee 4000460936 ( M18FFSDC10-0 )
Onderdelen lijst van de Milwaukee 4000460936 ( M18FFSDC10-0 )
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| PIN | ||||
| 0007 | 4931465451 | 4.49 | 5.43 | |
| RETAINING RING | ||||
| 0010 | 4931465452 | 1.90 | 2.30 | |
| WASHER | ||||
| 0011 | 4931465453 | 1.80 | 2.18 | |
| CABLE | ||||
| 0022 | 4931465454 | 41.18 | 49.83 | |
| 10mm x 15m spiraal M18FS -1st | ||||
| 0042 | 48532773 | 167.09 | 202.18 | |
| 13mm x 15m spiraal M18FS -1st | ||||
| 0043 | 48532774 | 106.59 | 128.97 | |
| 16mm x 15m spiraal M18FS -1st | ||||
| 0044 | 48532775 | 131.89 | 159.59 | |
| Spade boor M18FS - 1st | ||||
| 0046 | 48532788 | 35.75 | 43.26 | |
| Trechter Retriever M18FS -1st | ||||
| 0047 | 48532786 | 32.23 | 39.00 | |
| Grease Cutter M18 FS- 1st | ||||
| 0048 | 48532789 | 18.98 | 22.97 | |
| Graaf kop M18FS-1st | ||||
| 0049 | 48532787 | 29.98 | 36.28 | |
| TOOL | ||||
| 0050 | 4931465455 | 4.49 | 5.43 | |
| BEARING HOUSING | ||||
| 0055 | 4931465456 | 11.69 | 14.14 | |
| HOUSING COVER | ||||
| 0056 | 4931465457 | 82.37 | 99.67 | |
| BEARING HOUSING | ||||
| 0057 | 4931465458 | 11.69 | 14.14 | |
| FEEDER ROLLER | ||||
| 0058 | 4931465459 | 16.20 | 19.60 | |
| Niet meer leverbaar | ||||
| 0059 | 4931465460 | |||
| GUIDE PIECE | ||||
| 0060 | 4931465461 | 9.91 | 11.99 | |
| ROD | ||||
| 0061 | 4931465462 | 9.91 | 11.99 | |
| LATCH | ||||
| 0062 | 4931465463 | 11.69 | 14.14 | |
| HOUSING BOTTOM | ||||
| 0063 | 4931465464 | 121.97 | 147.58 | |
| RATING PLATE | ||||
| 0070 | 4931465465 | 1.90 | 2.30 | |
| SCREW | ||||
| 0071 | 4931465466 | 4.49 | 5.43 | |
| SCREW | ||||
| 0072 | 4931454853 | 1.90 | 2.30 | |
| BELT | ||||
| 0073 | 4931465467 | 80.78 | 97.74 | |
| PLATE | ||||
| 0074 | 4931465468 | 147.31 | 178.25 | |
| SCREW | ||||
| 0075 | 4931436390 | 1.80 | 2.18 | |
| STRAP | ||||
| 0076 | 4931465469 | 5.40 | 6.53 | |
| PIN | ||||
| 0077 | 4931465470 | 1.80 | 2.18 | |
| SCREW | ||||
| 0078 | 4931465471 | 1.90 | 2.30 | |
| BELT GUARD | ||||
| 0079 | 4931465472 | 8.09 | 9.79 | |
| RETAINER | ||||
| 0080 | 4931465473 | 15.29 | 18.50 | |
| SWITCH MOUNTING | ||||
| 0081 | 4931465474 | 4.49 | 5.43 | |
| HOUSING | ||||
| 0082 | 4931465475 | 60.19 | 72.83 | |
| SWITCH BOARD | ||||
| 0083 | 4931465476 | 4.49 | 5.43 | |
| SLIDING SWITCH | ||||
| 0084 | 4931465477 | 4.49 | 5.43 | |
| LABEL | ||||
| 0085 | 4931465478 | 7.20 | 8.71 | |
| BALL BEARING | ||||
| 0086 | 4931436014 | 4.49 | 5.43 | |
| SCREW | ||||
| 0087 | 4931465479 | 1.80 | 2.18 | |
| BUSHING | ||||
| 0088 | 4931465480 | 5.40 | 6.53 | |
| HOLDER | ||||
| 0089 | 4931465481 | 9.00 | 10.89 | |
| HOLDER | ||||
| 0090 | 4931465482 | 8.09 | 9.79 | |
| STRAP | ||||
| 0091 | 4931465483 | 45.94 | 55.59 | |
| HOUSING | ||||
| 0092 | 4931465484 | 72.86 | 88.16 | |
| TERMINAL STRIP | ||||
| 0093 | 4931465485 | 25.34 | 30.66 | |
| FEEDER ROLLER | ||||
| 0094 | 4931465486 | 17.42 | 21.08 | |
| TENSIONING DEVICE | ||||
| 0095 | 4931465487 | 45.94 | 55.59 | |
| FEEDER ROLLER | ||||
| 0096 | 4931465488 | 16.20 | 19.60 | |
| MOTOR ASSEMBLY | ||||
| 0097 | 4931465489 | 63.36 | 76.67 | |
| MOTOR HOUSING | ||||
| 0098 | 4931465490 | 13.51 | 16.35 | |
| ELECTRONIC | ||||
| 0099 | 4931465491 | 240.77 | 291.33 | |
| BASIC SOCKET | ||||
| 0100 | 4931465492 | 64.94 | 78.58 | |
| HOUSING BOTTOM | ||||
| 0102 | 4931465493 | 49.10 | 59.41 | |
| SLIDER | ||||
| 0103 | 4931465494 | 22.18 | 26.84 | |
| GEAR CASE | ||||
| 0104 | 4931465495 | 77.62 | 93.92 | |
| FOOT PEDAL | ||||
| 0105 | 4931465496 | 120.38 | 145.66 | |
| PLUG | ||||
| 0106 | 4931466591 | 12.60 | 15.25 | |
