Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Milwaukee 4000417050 ( KME-1602-VARILEX1.600 )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

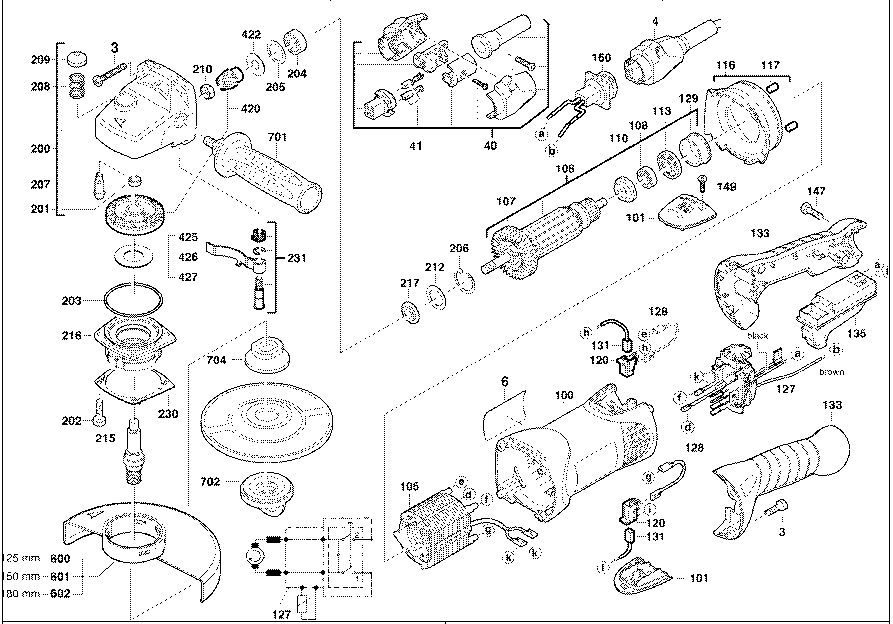

Tekeningen van de Milwaukee 4000417050 ( KME-1602-VARILEX1.600 )
Onderdelen lijst van de Milwaukee 4000417050 ( KME-1602-VARILEX1.600 )
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| SCREW | ||||
| 0003 | 4931618253 | 1.80 | 2.18 | |
| CONNECTION CABLE IN2 | ||||
| 0004 | 4931624171 | 25.34 | 30.66 | |
| RATING PLATE | ||||
| 0006 | 4931378607 | 1.80 | 2.18 | |
| Reparatieset QUIK-LOK snoeren | ||||
| 0040 | 4931380758 | 24.16 | 29.23 | |
| Cable socket p./10 | ||||
| 0041 | 4931380763 | 25.34 | 30.66 | |
| MOTOR HOUSING | ||||
| 0100 | 4931378464 | 17.42 | 21.08 | |
| COVER | ||||
| 0101 | 4931378134 | 5.40 | 6.53 | |
| Niet meer leverbaar | ||||
| 0105 | 4931426580 | |||
| ARMATURE | ||||
| 0106 | 4931442661 | 79.20 | 95.83 | |
| FAN | ||||
| 0107 | 4931341088 | 5.40 | 6.53 | |
| Ball Bearing | ||||
| 0108 | 4931624662 | 9.00 | 10.89 | |
| INSULATING DISC | ||||
| 0110 | 4931271823 | 5.40 | 6.53 | |
| Magnetic Disc | ||||
| 0113 | 4931426570 | 5.40 | 6.53 | |
| AIR DEFLECTOR RING | ||||
| 0114 | 4931378135 | 5.40 | 6.53 | |
| HOLDING-DOWN DEVICE | ||||
| 0117 | 4931409768 | 5.40 | 6.53 | |
| BRUSH HOLDER | ||||
| 0120 | 4931382268 | 5.40 | 6.53 | |
| ELECTRIC ELEMENT | ||||
| 0127 | 4931403585 | 47.52 | 57.50 | |
| WIRE | ||||
| 0128 | 4931623738 | 4.49 | 5.43 | |
| BEARING SLEEVE | ||||
| 0129 | 4931326953 | 5.40 | 6.53 | |
| CARBON BRUSH SET | ||||
| 0131 | 4931369477 | 14.40 | 17.42 | |
| SWITCH HANDLE | ||||
| 0133 | 4931378146 | 9.00 | 10.89 | |
| SWITCH | ||||
| 0135 | 4931378983 | 17.42 | 21.08 | |
| SCREW | ||||
| 0147 | 4931618253 | 1.80 | 2.18 | |
| SCREW | ||||
| 0149 | 4931623591 | 1.80 | 2.18 | |
| INSERT | ||||
| 0160 | 4931364437 | 9.00 | 10.89 | |
| GEAR BOX | ||||
| 0200 | 4931407067 | 49.10 | 59.41 | |
| SLEEVE N874989 HKO 0810 | ||||
| 0201 | 4931912093 | 5.40 | 6.53 | |
| SCREW | ||||
| 0202 | 4931317532 | 1.80 | 2.18 | |
| COMPENSATING WASHER | ||||
| 0203 | 4931254894 | 1.80 | 2.18 | |
| GROOVED BALL BEAR, | ||||
| 0204 | 4931368037 | 5.40 | 6.53 | |
| WASHER | ||||
| 0205 | 4931362085 | 1.80 | 2.18 | |
| LOCKING RING | ||||
| 0206 | 4931616614 | 5.40 | 6.53 | |
| LOCKING BOLT | ||||
| 0207 | 4931326929 | 5.40 | 6.53 | |
| PRESSURE SPRING | ||||
| 0208 | 4931326942 | 5.40 | 6.53 | |
| PUSH-BUTTON | ||||
| 0209 | 4931326930 | 5.40 | 6.53 | |
| NUT | ||||
| 0210 | 4931325518 | 5.40 | 6.53 | |
| DISC | ||||
| 0212 | 4931622761 | 5.40 | 6.53 | |
| SPINDLE | ||||
| 0215 | 4931409809 | 10.80 | 13.07 | |
| BEARING END PLATE | ||||
| 0216 | 4931407065 | 28.51 | 34.50 | |
| WASHER | ||||
| 217 | 4931624287 | 1.80 | 2.18 | |
| SPRING PLATE | ||||
| 0230 | 4931426499 | 5.40 | 6.53 | |
| LOCKING PIECE | ||||
| 0231 | 4931407605 | 19.01 | 23.00 | |
| BEVEL GEAR PAIR | ||||
| 0420 | 4931407029 | 68.11 | 82.41 | |
| WASHER | ||||
| 0422 | 4931362086 | 1.80 | 2.18 | |
| DISC N874237 12,2X22X0,1 | ||||
| 0425 | 4931808473 | 5.40 | 6.53 | |
| DISC N874237 12,2X22X0,2 | ||||
| 0426 | 4931925940 | 5.40 | 6.53 | |
| DISC | ||||
| 0427 | 4931624256 | 5.40 | 6.53 | |
| GUARD completed, diam, 125, ZAP- silver | ||||
| 0600 | 4931407139 | 9.00 | 10.89 | |
| HOLDING GRIP | ||||
| 0701 | 4931369805 | 4.49 | 5.43 | |
| Fixtec Nut M14 P1a | ||||
| 0702 | 4932358225 | 23.60 | 28.56 | |
| Spanflens | ||||
| 0704 | 4932449324 | 4.55 | 5.51 | |
