Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Milwaukee 4000384547 ( IPWE520RQ )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

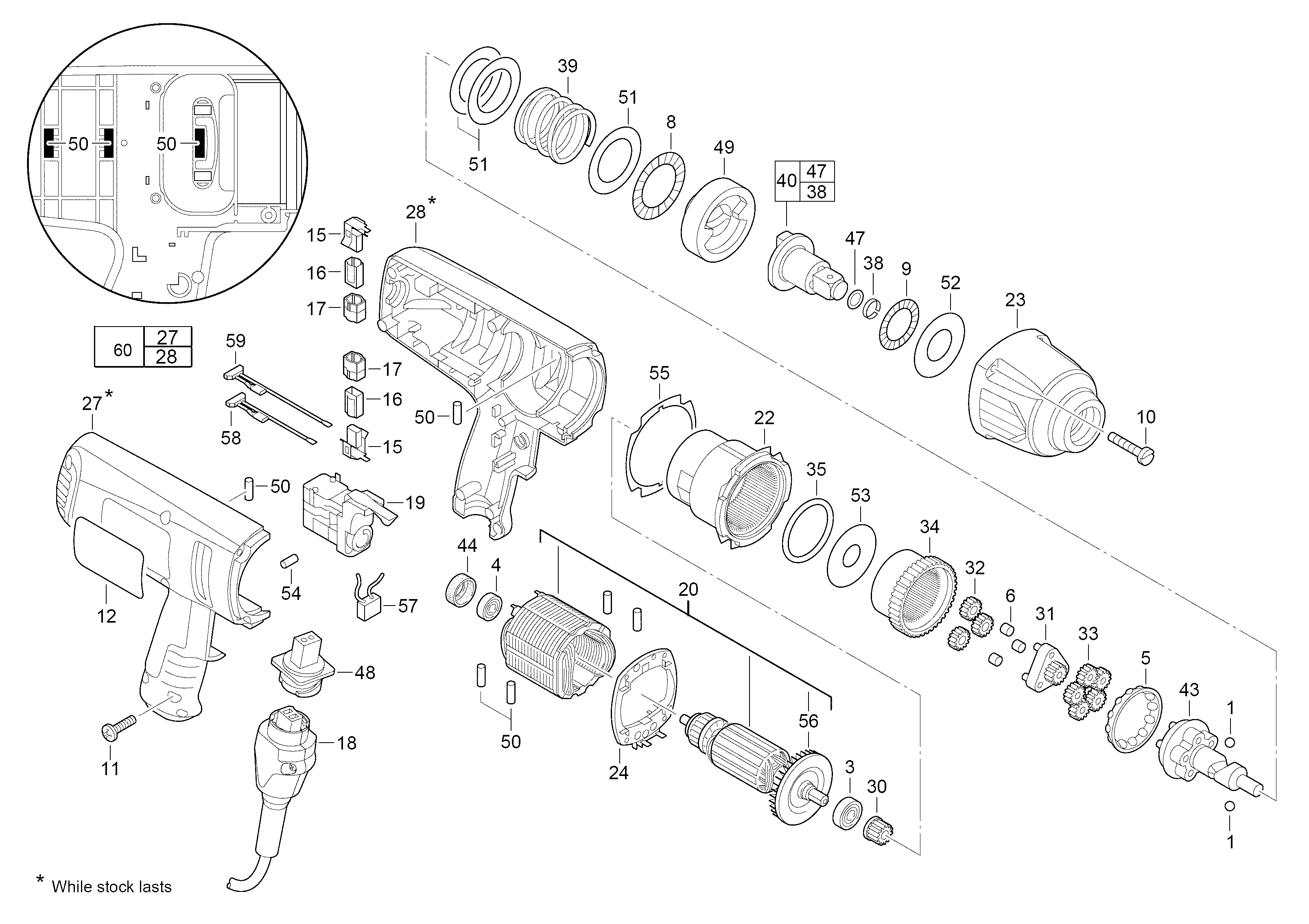

Tekeningen van de Milwaukee 4000384547 ( IPWE520RQ )
Onderdelen lijst van de Milwaukee 4000384547 ( IPWE520RQ )
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| BALL | ||||
| 0001 | 02020250 | 1.73 | 2.09 | |
| BALL BEARING | ||||
| 0003 | 02040852 | 10.37 | 12.55 | |
| BALL BEARING | ||||
| 0004 | 02040645 | 12.44 | 15.05 | |
| BEARING | ||||
| 0005 | 02400050 | 10.37 | 12.55 | |
| BEARING | ||||
| 0006 | 02503250 | 13.82 | 16.72 | |
| BEARING | ||||
| 0008 | 02800200 | 16.43 | 19.88 | |
| BALL BEARING | ||||
| 0009 | 680658012 | 12.60 | 15.25 | |
| SCREW | ||||
| 0010 | 05885988 | 1.73 | 2.09 | |
| SCREW | ||||
| 0011 | 06956290 | 2.08 | 2.52 | |
| NAME PLATE | ||||
| 0012 | 12909076 | 1.80 | 2.18 | |
| Carbon Brush | ||||
| 0015 | 22180040 | 7.20 | 8.71 | |
| BRUSH HOLDER | ||||
| 0016 | 4931441799 | 1.80 | 2.18 | |
| BRUSH HOLDER | ||||
| 0017 | 4931441799 | 1.80 | 2.18 | |
| CONNECTION CABLE IN2 | ||||
| 0018 | 4931624171 | 25.34 | 30.66 | |
| CONNECTION CABLE Swiss | ||||
| 0018 | 4931624181 | 25.34 | 30.66 | |
| CONNECTION CABLE GB2 | ||||
| 0018 | 4931624184 | 39.60 | 47.92 | |
| CONNECTION CABLE AUS NZ | ||||
| 0018 | 4931624342 | 31.68 | 38.33 | |
| SWITCH | ||||
| 0019 | 23662775 | 63.36 | 76.67 | |
| Motor Assembly | ||||
| 0020 | 4931441579 | 118.80 | 143.75 | |
| GEAR CASE | ||||
| 0022 | 28140175 | 16.20 | 19.60 | |
| HOUSING | ||||
| 0023 | 14380100 | 50.69 | 61.33 | |
| AIR DEFLECTOR RING | ||||
| 0024 | 31152045 | 5.40 | 6.53 | |
| HANDLE RIGHT | ||||
| 0027 | 31442176 | 10.80 | 13.07 | |
| HANDLE LEFT | ||||
| 0028 | 31442181 | 12.60 | 15.25 | |
| GEAR | ||||
| 0030 | 32600150 | 1.80 | 2.18 | |
| GEAR | ||||
| 0031 | 32600175 | 7.20 | 8.71 | |
| PLANET GEAR | ||||
| 0032 | 32620200 | 1.80 | 2.18 | |
| PLANET GEAR | ||||
| 0033 | 32620215 | 1.80 | 2.18 | |
| GEAR | ||||
| 0034 | 32650005 | 12.60 | 15.25 | |
| O-RING | ||||
| 0035 | 34400070 | 1.80 | 2.18 | |
| RING | ||||
| 0038 | 44904540 | 5.40 | 6.53 | |
| SPRING | ||||
| 0039 | 40500241 | 5.40 | 6.53 | |
| ANVIL | ||||
| 0040 | 14730156 | 36.43 | 44.08 | |
| SHAFT | ||||
| 0043 | 14730300 | 30.10 | 36.42 | |
| RUBBER SLEEVE | ||||
| 0044 | 42960015 | 1.80 | 2.18 | |
| O-RING | ||||
| 0047 | 34401210 | 1.80 | 2.18 | |
| PLUG | ||||
| 0048 | 22569072 | 9.00 | 10.89 | |
| RAM | ||||
| 0049 | 44820210 | 38.02 | 46.00 | |
| HOLDING-DOWN DEVICE | ||||
| 0050 | 45300025 | 5.40 | 6.53 | |
| WASHER | ||||
| 0051 | 45880535 | 1.80 | 2.18 | |
| WASHER | ||||
| 0052 | 45881575 | 1.80 | 2.18 | |
| WASHER | ||||
| 0053 | 45883250 | 1.80 | 2.18 | |
| BALL | ||||
| 0054 | 45300021 | 1.80 | 2.18 | |
| GASKET | ||||
| 0055 | 43440991 | 5.40 | 6.53 | |
| FAN | ||||
| 0056 | 22840375 | 4.49 | 5.43 | |
| CAPACITOR | ||||
| 0057 | 22330550 | 7.20 | 8.71 | |
| WIRE | ||||
| 0058 | 23940275 | 10.80 | 13.07 | |
| WIRE | ||||
| 0059 | 23940276 | 10.80 | 13.07 | |
| HANDLE SHELLS | ||||
| 0060 | 4931453959 | 28.51 | 34.50 | |
