Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Milwaukee 4000368701 ( DD2-160XE110V )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

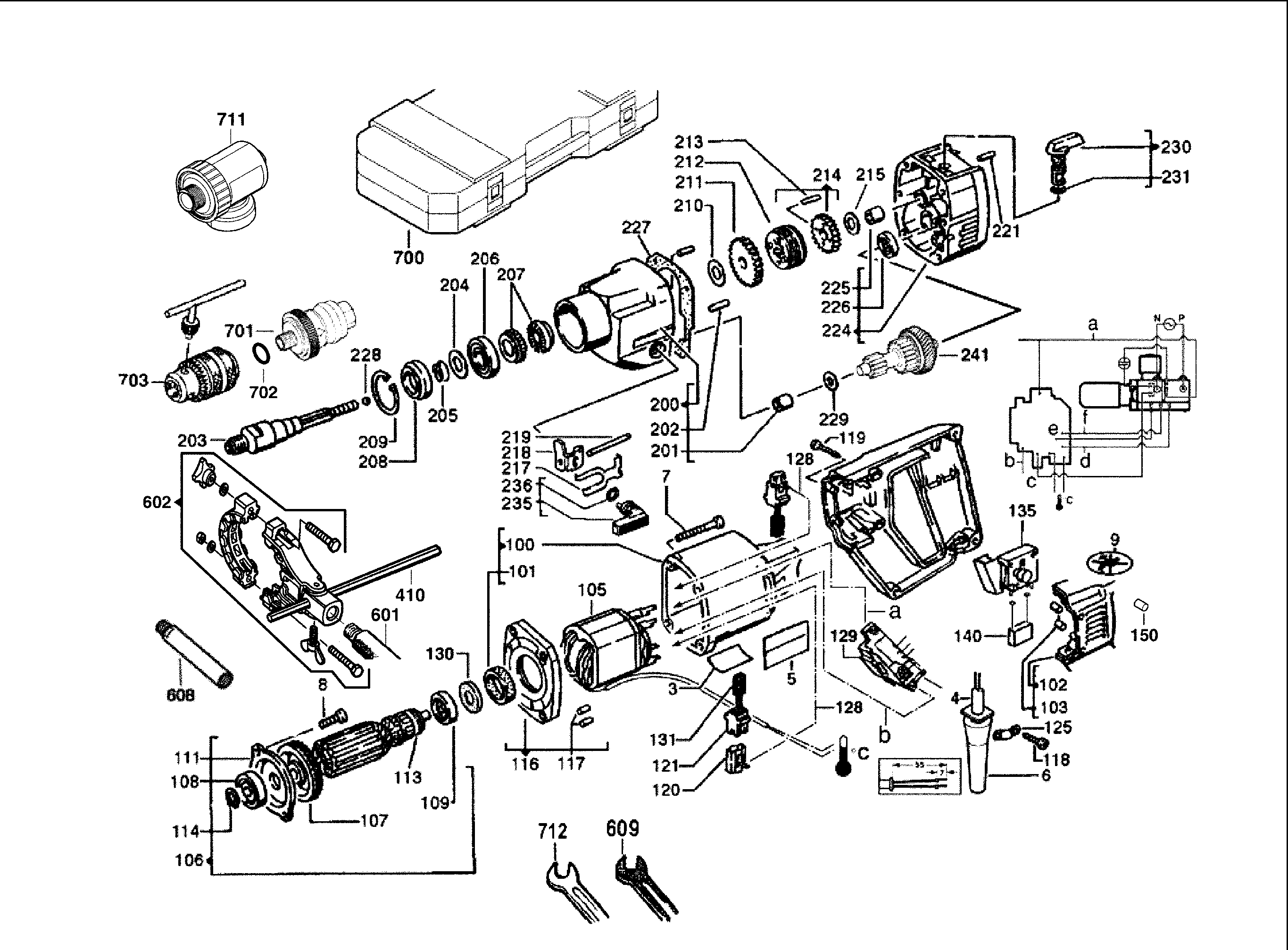

Tekeningen van de Milwaukee 4000368701 ( DD2-160XE110V )
Onderdelen lijst van de Milwaukee 4000368701 ( DD2-160XE110V )
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| RATING PLATE | ||||
| 0003 | 4931368702 | 1.80 | 2.18 | |
| CONNECTION CABLE | ||||
| 0004 | 4931623844 | 20.59 | 24.91 | |
| NAME PLATE | ||||
| 0005 | 4931380498 | 1.80 | 2.18 | |
| CABLE ENTRY SLEEVE | ||||
| 0006 | 4931267515 | 5.40 | 6.53 | |
| SCREW D 912 M 4X70 8G | ||||
| 0007 | 4931614685 | 1.80 | 2.18 | |
| SCREW | ||||
| 0008 | 4931612817 | 1.80 | 2.18 | |
| LABEL | ||||
| 0009 | 4931321699 | 1.80 | 2.18 | |
| HOUSING | ||||
| 0100 | 4931359587 | 19.01 | 23.00 | |
| RUBBER SLEEVE | ||||
| 0101 | 4931301483 | 1.80 | 2.18 | |
| HANDLE | ||||
| 0102 | 4931359589 | 14.40 | 17.42 | |
| RUBBER STOP | ||||
| 0103 | 562578001 | 5.40 | 6.53 | |
| Niet meer leverbaar | ||||
| 0105 | 4931426604 | |||
| ARMATURE | ||||
| 0106 | 4931442678 | 79.20 | 95.83 | |
| FAN | ||||
| 0107 | 4931271335 | 4.49 | 5.43 | |
| GROOVED BALL BEAR, | ||||
| 0108 | 4931368037 | 5.40 | 6.53 | |
| BALL BEARING | ||||
| 0109 | 4931901253 | 9.00 | 10.89 | |
| BEARING COVER | ||||
| 0111 | 4931267463 | 4.49 | 5.43 | |
| INSULATING DISC | ||||
| 0113 | 4931271823 | 5.40 | 6.53 | |
| RING | ||||
| 0114 | 4931605127 | 4.49 | 5.43 | |
| AIR DEFLECTOR RING | ||||
| 0116 | 4931337361 | 9.00 | 10.89 | |
| RUBBER STOP | ||||
| 0117 | 562578001 | 5.40 | 6.53 | |
| SCREW | ||||
| 0118 | 4931624538 | 1.80 | 2.18 | |
| SCREW | ||||
| 0119 | 4931618253 | 1.80 | 2.18 | |
| BRUSH HOLDER | ||||
| 0120 | 4931317546 | 5.40 | 6.53 | |
| BRUSH HOLDER INSUL | ||||
| 0121 | 4931317545 | 9.00 | 10.89 | |
| CABLE COLLAR | ||||
| 0125 | 4931256500 | 5.40 | 6.53 | |
| CONNECTION CABLE | ||||
| 0128 | 4931622342 | 5.40 | 6.53 | |
| FELT WASHER | ||||
| 0130 | 4931300215 | 1.80 | 2.18 | |
| CARBON BRUSH SET | ||||
| 0131 | 4931392581 | 19.01 | 23.00 | |
| SWITCH | ||||
| 0135 | 4931385859 | 17.11 | 20.70 | |
| CAPACITOR | ||||
| 0140 | 4931385864 | 5.40 | 6.53 | |
| HOLDING-DOWN DEVICE | ||||
| 0150 | 4931409768 | 5.40 | 6.53 | |
| GEAR BOX | ||||
| 0200 | 4931412489 | 31.68 | 38.33 | |
| NEEDLE BEARING | ||||
| 0201 | 4931219424 | 1.80 | 2.18 | |
| PIN | ||||
| 0202 | 4931615663 | 4.49 | 5.43 | |
| DRILL SPINDLE | ||||
| 0203 | 4931307984 | 36.43 | 44.08 | |
| DISC | ||||
| 0204 | 4931621809 | 5.40 | 6.53 | |
| PRESSURE SPRING | ||||
| 0205 | 4931267406 | 5.40 | 6.53 | |
| BALL BEARING | ||||
| 0206 | 4931891058 | 9.00 | 10.89 | |
| PERCUSSION SLEEVE | ||||
| 0207 | 4931325240 | 4.49 | 5.43 | |
| SEAL RING | ||||
| 0208 | 4931267522 | 5.40 | 6.53 | |
| LOCKING RING | ||||
| 0209 | 4931890311 | 5.40 | 6.53 | |
| DISC | ||||
| 0210 | 4931943605 | 5.40 | 6.53 | |
| DRILL SPINDLE WHEEL | ||||
| 0211 | 4931368671 | 12.60 | 15.25 | |
| SHIFT RING COMPL, | ||||
| 0212 | 4931307130 | 15.84 | 19.17 | |
| PIN | ||||
| 0213 | 4931621732 | 5.40 | 6.53 | |
| DRILL SPINDLE WHEEL | ||||
| 0214 | 4931369652 | 10.80 | 13.07 | |
| DISC N874237 8,1X16X0,5 | ||||
| 0215 | 4931901226 | 5.40 | 6.53 | |
| RETAINING SPRING | ||||
| 0217 | 4931307118 | 5.40 | 6.53 | |
| SWITCH LEVER | ||||
| 0218 | 4931309010 | 4.49 | 5.43 | |
| PIN | ||||
| 0219 | 4931621731 | 5.40 | 6.53 | |
| PIN | ||||
| 0221 | 4931621650 | 5.40 | 6.53 | |
| BEARING END PLATE | ||||
| 0224 | 4931412490 | 31.68 | 38.33 | |
| SLEEVE N874989 HKO 0810 | ||||
| 0225 | 4931912093 | 5.40 | 6.53 | |
| BALL BEARING | ||||
| 0226 | 4931624661 | 9.00 | 10.89 | |
| GASKET | ||||
| 0227 | 4931307995 | 5.40 | 6.53 | |
| Ball | ||||
| 0228 | 4931805437 | 1.80 | 2.18 | |
| BALL | ||||
| 0228 | 681486001 | 1.80 | 2.18 | |
| DISC N874237 8,3X16,5X1 | ||||
| 0229 | 4931919962 | 5.40 | 6.53 | |
| SWITCH LEVER | ||||
| 0230 | 4931320109 | 25.34 | 30.66 | |
| O-RING N874701 8X1 | ||||
| 0231 | 4931943493 | 1.80 | 2.18 | |
| SWITCH LEVER | ||||
| 0235 | 4931310479 | 5.40 | 6.53 | |
| O-RING N874701 14X1 | ||||
| 0236 | 4931621782 | 1.80 | 2.18 | |
| REDUCTION GEAR | ||||
| 0241 | 4931368673 | 90.29 | 109.25 | |
| DEPTH GAUGE | ||||
| 0410 | 4931384434 | 5.40 | 6.53 | |
| Handle | ||||
| 0601 | 4931375516 | 47.52 | 57.50 | |
| CLAMPING RING | ||||
| 0602 | 4931407017 | 23.76 | 28.75 | |
| EXTENSION | ||||
| 0608 | 4931368730 | 23.76 | 28.75 | |
| CARRYING CASE | ||||
| 0700 | 4931412492 | 58.61 | 70.92 | |
| FIXTEC-adapter M 18 x 2,5 | ||||
| 0701 | 4932399174 | 55.90 | 67.64 | |
| O-RING | ||||
| 0702 | 4931941117 | 1.80 | 2.18 | |
| FIXTEC Clean Line Rotor (CLR) | ||||
| 0711 | 4932352172 | 179.72 | 217.46 | |
