Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Milwaukee 4000381186 ( BSPE110X )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

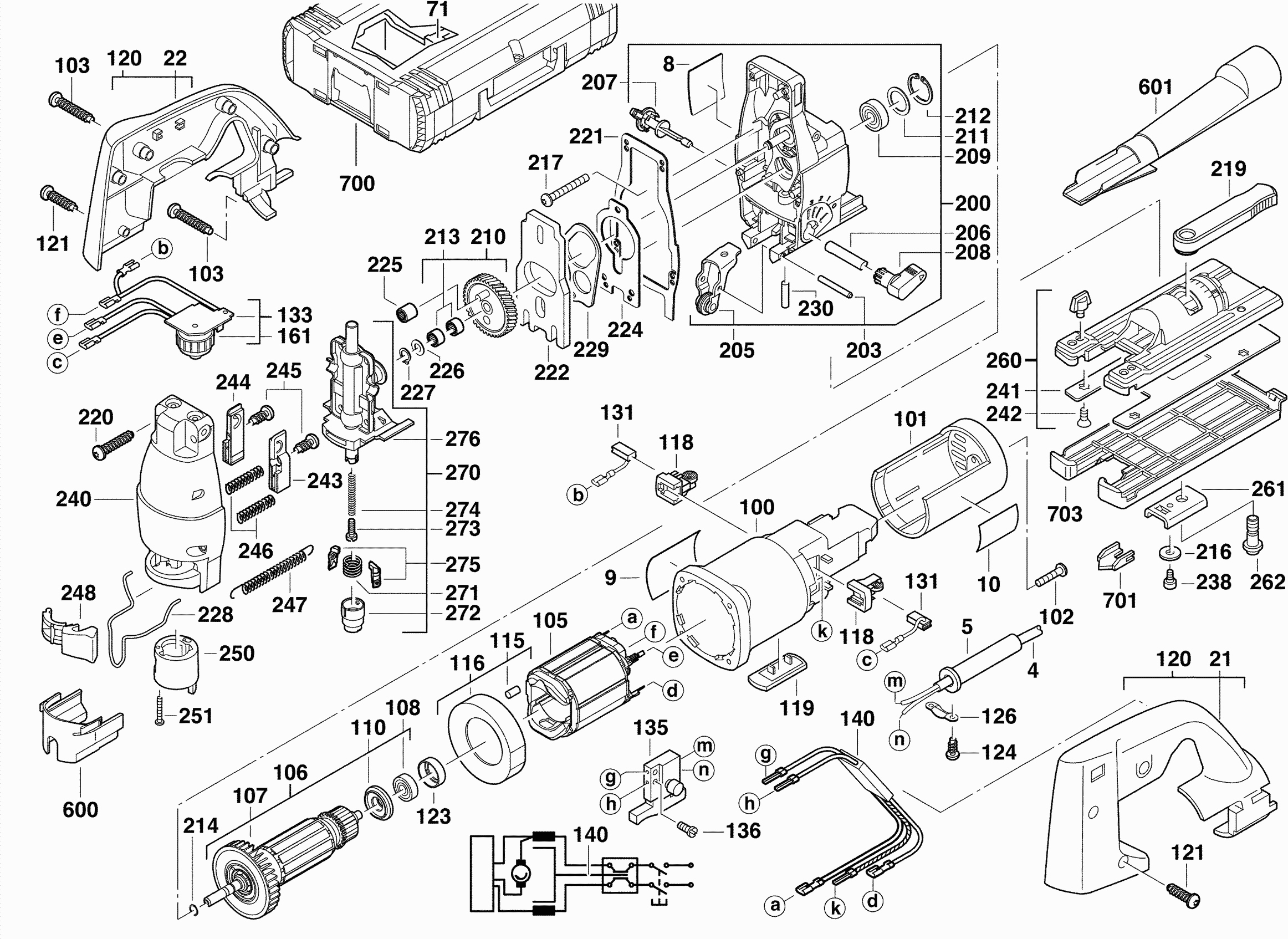

Tekeningen van de Milwaukee 4000381186 ( BSPE110X )
Onderdelen lijst van de Milwaukee 4000381186 ( BSPE110X )
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| CONNECTION CABLE | ||||
| 0004 | 4931624449 | 14.40 | 17.42 | |
| CABLE ENTRY SLEEVE | ||||
| 0005 | 4931206687 | 5.40 | 6.53 | |
| NAME PLATE | ||||
| 0010 | 4931382311 | 1.80 | 2.18 | |
| CARRYING CASE | ||||
| 0071 | 4931415345 | 30.10 | 36.42 | |
| SCREW N874118 M 4X12 | ||||
| 0102 | 4931621798 | 1.80 | 2.18 | |
| SCREW | ||||
| 0103 | 4931618253 | 1.80 | 2.18 | |
| ELECTRIC FIELD | ||||
| 0105 | 4931426186 | 23.76 | 28.75 | |
| ARMATURE | ||||
| 0106 | 4931426261 | 52.27 | 63.25 | |
| FAN | ||||
| 0107 | 4931302487 | 4.49 | 5.43 | |
| GROOVED BALL BEAR, | ||||
| 0108 | 4931341740 | 5.40 | 6.53 | |
| DISC N874232 D8X18X1,5 | ||||
| 0110 | 4931621853 | 4.49 | 5.43 | |
| HOLDING-DOWN DEVICE | ||||
| 0115 | 4931409768 | 5.40 | 6.53 | |
| AIR DEFLECTOR RING | ||||
| 0116 | 4931254961 | 4.49 | 5.43 | |
| BRUSH HOLDER | ||||
| 0118 | 4931254922 | 4.49 | 5.43 | |
| SCREW | ||||
| 0121 | 4931623048 | 1.80 | 2.18 | |
| RUBBER SLEEVE | ||||
| 0123 | 4931254368 | 1.80 | 2.18 | |
| SCREW | ||||
| 0124 | 4931624538 | 1.80 | 2.18 | |
| CABLE COLLAR | ||||
| 0126 | 4931256500 | 5.40 | 6.53 | |
| CARBON BRUSH SET | ||||
| 0131 | 4931392579 | 17.42 | 21.08 | |
| PRINTED CIRC, BOARD | ||||
| 0133 | 4931395265 | 45.94 | 55.59 | |
| SWITCH | ||||
| 0135 | 4931346770 | 10.80 | 13.07 | |
| SCREW | ||||
| 0136 | 4931621772 | 1.80 | 2.18 | |
| MODIFICATION SET | ||||
| 0140 | 4931449682 | 125.14 | 151.42 | |
| SET WHEEL | ||||
| 0161 | 4931341732 | 4.49 | 5.43 | |
| GEAR BOX | ||||
| 0200 | 4931412831 | 72.86 | 88.16 | |
| Pin D 6325 4 M6x32 | ||||
| 0203 | 4931621942 | 5.40 | 6.53 | |
| SUPPORT ROLL HOLDER | ||||
| 0205 | 4931468106 | 3.60 | 4.36 | |
| INDEXING BOLT | ||||
| 0206 | 4931381103 | 5.40 | 6.53 | |
| SWITCH | ||||
| 0207 | 4931381156 | 5.40 | 6.53 | |
| SWITCH HANDLE | ||||
| 0208 | 4931378812 | 5.40 | 6.53 | |
| BALL BEARING | ||||
| 0209 | 4931901253 | 9.00 | 10.89 | |
| GEAR | ||||
| 0210 | 4931357515 | 19.01 | 23.00 | |
| SEALING WASHER 21,8X15,8X0,2 | ||||
| 0211 | 4931803914 | 1.80 | 2.18 | |
| LOCKING RING D 472 22X1 | ||||
| 0212 | 4931613683 | 5.40 | 6.53 | |
| NEEDLE BEARING | ||||
| 0213 | 4931219422 | 1.80 | 2.18 | |
| LOCKING RING D 471 7X0,8 | ||||
| 0214 | 4931621828 | 5.40 | 6.53 | |
| DISC | ||||
| 0216 | 4931622131 | 5.40 | 6.53 | |
| SCREW | ||||
| 0217 | 4931623019 | 1.80 | 2.18 | |
| Tension Lever | ||||
| 0219 | 4931381610 | 5.40 | 6.53 | |
| SCREW | ||||
| 0220 | 4931623020 | 1.80 | 2.18 | |
| SEAL | ||||
| 0221 | 4931381656 | 5.40 | 6.53 | |
| BALANCE WEIGHT | ||||
| 0222 | 4931381109 | 9.00 | 10.89 | |
| SHIM | ||||
| 0224 | 4931357577 | 5.40 | 6.53 | |
| NEEDLE BUSH | ||||
| 0225 | 4931361376 | 5.40 | 6.53 | |
| DISC N874237 6,1X12X0,5 | ||||
| 0226 | 4931621830 | 5.40 | 6.53 | |
| RING D471 6X0,7 | ||||
| 0227 | 4931605092 | 5.40 | 6.53 | |
| WIRE STRAP | ||||
| 0228 | 4931357982 | 5.40 | 6.53 | |
| ROCKER BAR | ||||
| 0229 | 4931357522 | 5.40 | 6.53 | |
| CYLINDER PIN | ||||
| 0230 | 4931381112 | 5.40 | 6.53 | |
| SCREW | ||||
| 0238 | 4931300699 | 1.80 | 2.18 | |
| GEAR BOX COVER | ||||
| 0240 | 4931426460 | 39.60 | 47.92 | |
| GROUND PLATE | ||||
| 0241 | 4931412827 | 20.59 | 24.91 | |
| SCREW | ||||
| 0242 | 4931310396 | 1.80 | 2.18 | |
| BEARING CAGE | ||||
| 0243 | 4931357986 | 5.40 | 6.53 | |
| BEARING CAGE | ||||
| 0244 | 4931357985 | 5.40 | 6.53 | |
| SCREW | ||||
| 0245 | 4931317532 | 1.80 | 2.18 | |
| PRESSURE SPRING | ||||
| 0246 | 4931341759 | 5.40 | 6.53 | |
| TENSION SPRING | ||||
| 0247 | 4931330453 | 5.40 | 6.53 | |
| SWITCH LEVER | ||||
| 0248 | 4931381159 | 5.40 | 6.53 | |
| INDEXING SLEEVE | ||||
| 0250 | 4931381158 | 5.40 | 6.53 | |
| SCREW | ||||
| 0251 | 4931624172 | 1.80 | 2.18 | |
| GROUND PLATE | ||||
| 0260 | 4931412827 | 20.59 | 24.91 | |
| THRUST PIECE | ||||
| 0261 | 4931357588 | 5.40 | 6.53 | |
| SCREW | ||||
| 0262 | 4931381124 | 1.80 | 2.18 | |
| RAM | ||||
| 0270 | 4931357693 | 39.60 | 47.92 | |
| Torsion Spring | ||||
| 0271 | 4931330424 | 5.40 | 6.53 | |
| Collet | ||||
| 0272 | 4931330494 | 10.80 | 13.07 | |
| Screw | ||||
| 0273 | 4931623102 | 1.80 | 2.18 | |
| Centering Jaw | ||||
| 0275 | 4931330303 | 4.49 | 5.43 | |
| SEAL RING | ||||
| 0276 | 4931623091 | 5.40 | 6.53 | |
| DUST CAP | ||||
| 0600 | 4931357987 | 5.40 | 6.53 | |
| SUCTION SLEEVE | ||||
| 0601 | 4931357983 | 5.40 | 6.53 | |
| Transportkoffer Milwaukee (maat 1) | ||||
| 0700 | 4932378986 | 30.43 | 36.82 | |
| ANT-CHIPPING DEVICE | ||||
| 0701 | 4931449321 | 9.50 | 11.50 | |
| Glijschoen voor materialen met een kwetsbaar opper | ||||
| 0703 | 4932430356 | 2.97 | 3.59 | |
