Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Milwaukee 4000385151 ( BS100LE )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

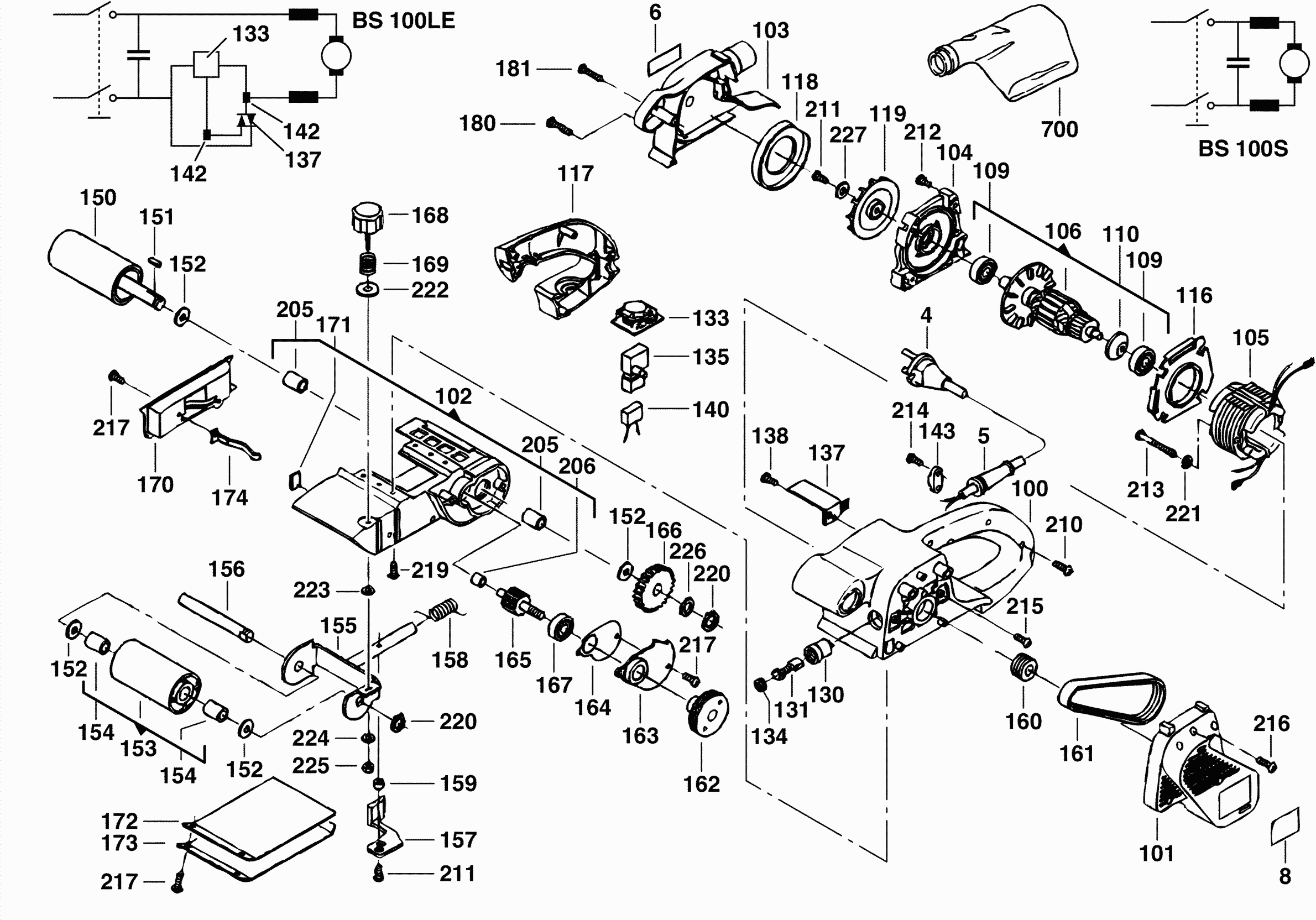

Tekeningen van de Milwaukee 4000385151 ( BS100LE )
Onderdelen lijst van de Milwaukee 4000385151 ( BS100LE )
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| CONNECTION CABLE | ||||
| 0004 | 4931250832 | 14.40 | 17.42 | |
| PROTECTING COVER | ||||
| 0005 | 4931375305 | 4.49 | 5.43 | |
| Niet meer leverbaar | ||||
| 0006 | 4931385158 | |||
| MOTOR HOUSING | ||||
| 0100 | 4931385160 | 30.10 | 36.42 | |
| BELT GUARD | ||||
| 0101 | 4931375309 | 6.31 | 7.64 | |
| ABSOLUTE UNIT | ||||
| 0102 | 4931385162 | 76.03 | 92.00 | |
| BLOWER COVER | ||||
| 0103 | 4931385164 | 9.91 | 11.99 | |
| BEARING END PLATE | ||||
| 0104 | 4931375296 | 14.40 | 17.42 | |
| ELECTRIC FIELD | ||||
| 0105 | 4931278688 | 50.69 | 61.33 | |
| ARMATURE | ||||
| 0106 | 4931375297 | 91.87 | 111.16 | |
| BALL BEARING D 625 6200 2RS LDS | ||||
| 0109 | 4931913855 | 14.40 | 17.42 | |
| SEAL RING | ||||
| 0110 | 4931278753 | 5.40 | 6.53 | |
| AIR DEFLECTOR RING | ||||
| 0116 | 4931375298 | 3.60 | 4.36 | |
| Niet meer leverbaar | ||||
| 0117 | 4931385161 | |||
| AIR DEFLECTOR RING | ||||
| 0118 | 4931278709 | 5.40 | 6.53 | |
| FAN | ||||
| 0119 | 4931375295 | 8.09 | 9.79 | |
| BRUSH HOLDER | ||||
| 0130 | 4931375310 | 5.40 | 6.53 | |
| CARBON BRUSH SET | ||||
| 0131 | 4931375311 | 17.42 | 21.08 | |
| ELECTRONIC ELEMENT | ||||
| 0133 | 4931375301 | 20.59 | 24.91 | |
| BRUSH HOLDER CAP | ||||
| 0134 | 4931375312 | 1.80 | 2.18 | |
| Niet meer leverbaar | ||||
| 0135 | 4931385159 | |||
| TRIAC | ||||
| 0137 | 4931375303 | 10.80 | 13.07 | |
| CAPACITOR | ||||
| 0140 | 4931309142 | 4.49 | 5.43 | |
| CONNECTOR | ||||
| 0142 | 4931239963 | 4.49 | 5.43 | |
| DRIVING ROLL | ||||
| 0150 | 4931278727 | 38.02 | 46.00 | |
| RETAINING BOLT | ||||
| 0151 | 4931610418 | 1.80 | 2.18 | |
| WASHER | ||||
| 0152 | 4931278754 | 1.80 | 2.18 | |
| STEERING ROLLER | ||||
| 0153 | 4931278741 | 28.51 | 34.50 | |
| BEARING SLEEVE | ||||
| 0154 | 4931278756 | 9.00 | 10.89 | |
| STEERING ROLL,SUPP | ||||
| 0155 | 4931345231 | 17.42 | 21.08 | |
| STEERING ROLL,AXLE | ||||
| 0156 | 4931278736 | 9.00 | 10.89 | |
| Tension Lever | ||||
| 0157 | 4931345232 | 4.49 | 5.43 | |
| SPRING | ||||
| 0158 | 4931278738 | 5.40 | 6.53 | |
| DISTANCE SLEEVE | ||||
| 0159 | 4931278739 | 1.80 | 2.18 | |
| PULLEY | ||||
| 0160 | 4931278723 | 5.40 | 6.53 | |
| TOOTHED BELT | ||||
| 0161 | 4931278724 | 20.59 | 24.91 | |
| PULLEY | ||||
| 0162 | 4931278733 | 23.76 | 28.75 | |
| GEAR BOX COVER | ||||
| 0163 | 4931278732 | 5.40 | 6.53 | |
| GASKET | ||||
| 0164 | 4931278770 | 1.80 | 2.18 | |
| PINION | ||||
| 0165 | 4931313801 | 20.59 | 24.91 | |
| GEAR | ||||
| 0166 | 4931278730 | 19.01 | 23.00 | |
| BALL BEARING D 625 6200 2Z LDS | ||||
| 0167 | 4931918146 | 12.60 | 15.25 | |
| Adjusting Screw | ||||
| 0168 | 4931375313 | 7.20 | 8.71 | |
| Spring | ||||
| 0169 | 4931278729 | 8.09 | 9.79 | |
| COVER | ||||
| 0170 | 4931385165 | 9.91 | 11.99 | |
| GUIDE | ||||
| 0171 | 4931375315 | 4.49 | 5.43 | |
| SUPP, FOR SAND BELT | ||||
| 0172 | 4931345233 | 5.40 | 6.53 | |
| SPRING PLATE | ||||
| 0173 | 4931345234 | 30.10 | 36.42 | |
| SPRING | ||||
| 0174 | 4931278699 | 5.40 | 6.53 | |
| SLEEVE N874989 HKO 0810 | ||||
| 0206 | 4931912093 | 5.40 | 6.53 | |
| SCREW | ||||
| 0211 | 4931278751 | 1.80 | 2.18 | |
| Niet meer leverbaar | ||||
| 0213 | 4931278746 | |||
| Niet meer leverbaar | ||||
| 0214 | 4931278749 | |||
| SCREW | ||||
| 0217 | 4931278750 | 1.80 | 2.18 | |
| Niet meer leverbaar | ||||
| 0219 | 4931375325 | |||
| RING D471 12X1 | ||||
| 0220 | 4931605142 | 5.40 | 6.53 | |
| SPRING WASHER | ||||
| 0221 | 4931615407 | 1.80 | 2.18 | |
| Backing Flange | ||||
| 0222 | 4931278771 | 5.40 | 6.53 | |
| Sealing Washer D 125 5,3 Gal | ||||
| 0223 | 4931615675 | 1.80 | 2.18 | |
| Sealing Washer D 125 4,3 Gal | ||||
| 0224 | 4931615865 | 1.80 | 2.18 | |
| Nut D 985 M 4 | ||||
| 0225 | 4931621424 | 5.40 | 6.53 | |
| DISC | ||||
| 0226 | 4931375324 | 1.80 | 2.18 | |
| SEALING WASHER | ||||
| 0227 | 4931603515 | 1.80 | 2.18 | |
| Stofzak (reserve) | ||||
| 0700 | 4932336597 | 12.08 | 14.62 | |
