Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Makita MR002G'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

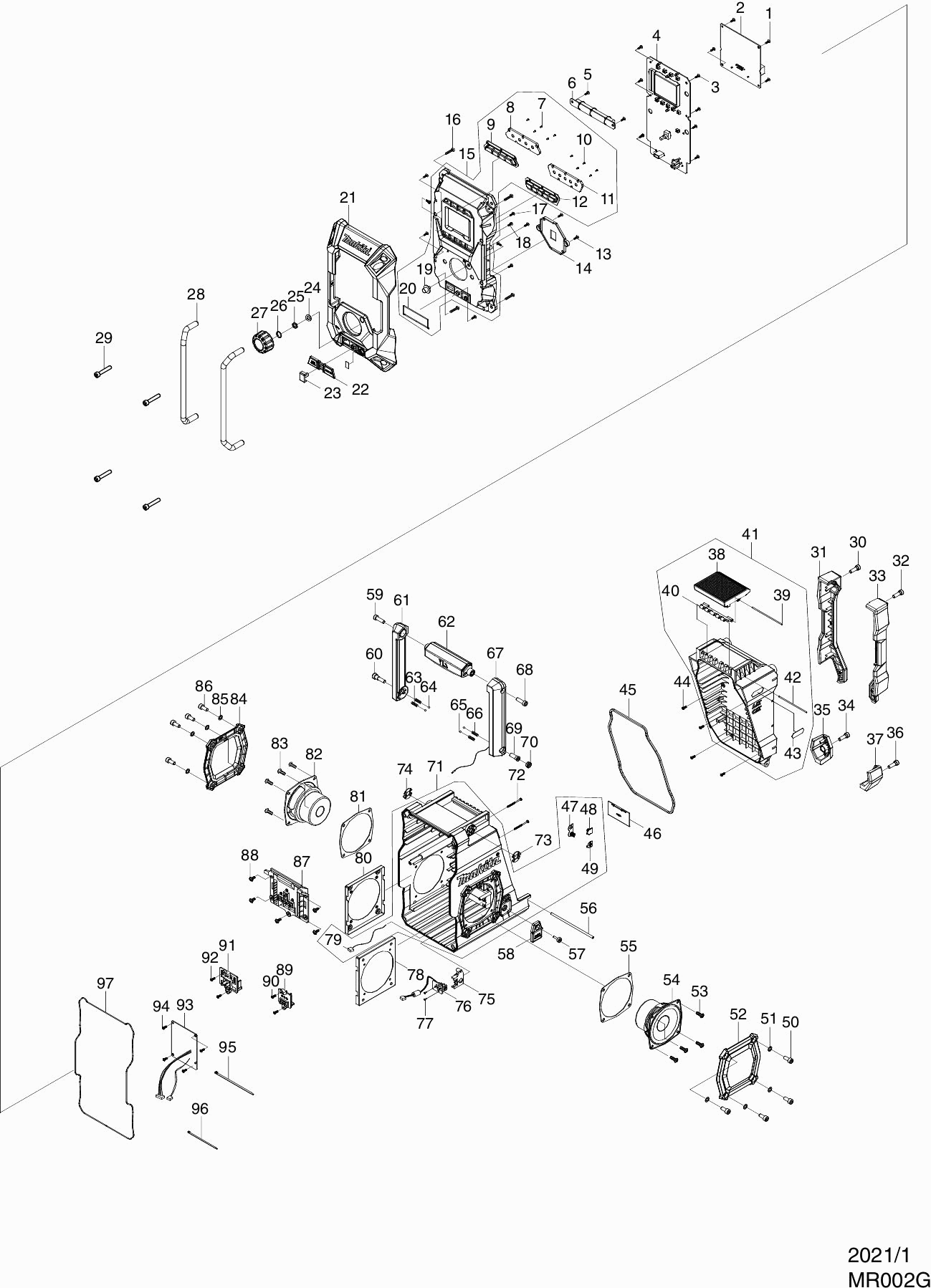

Tekeningen van de Makita MR002G
Onderdelen lijst van de Makita MR002G
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| Schroef 3x8 | ||||
| 001 | SE00000521 | 0.83 | 1.00 | |
| Printplaat A MR002G | ||||
| 002 | SE00000902 | 90.50 | 109.50 | |
| Schroef 3x8 | ||||
| 003 | SE00000521 | 0.83 | 1.00 | |
| Printplaat C MR002G | ||||
| 004 | SE00000906 | 46.31 | 56.04 | |
| Schroef 3x8 | ||||
| 005 | SE00000521 | 0.83 | 1.00 | |
| Printplaat P MR001/2G | ||||
| 006 | SE00000848 | 9.52 | 11.52 | |
| Tapschroef 1.7 | ||||
| 007 | SE09090011 | 0.83 | 1.00 | |
| Niet meer leverbaar | ||||
| 008 | SE00000907 | |||
| Niet meer leverbaar | ||||
| 009 | SE00000908 | |||
| Tapschroef 1.7 | ||||
| 010 | SE09090011 | 0.83 | 1.00 | |
| Niet meer leverbaar | ||||
| 011 | SE00000909 | |||
| Niet meer leverbaar | ||||
| 012 | SE00000910 | |||
| Schroef 3x8 | ||||
| 013 | SE00000521 | 0.83 | 1.00 | |
| Knophouder MR002G | ||||
| 014 | SE00000911 | 1.21 | 1.46 | |
| Voorhuis MR002G | ||||
| 015 | SE00000912 | 28.85 | 34.91 | |
| Schroef M4x16 | ||||
| 016 | SE09064161 | 0.83 | 1.00 | |
| Parker 3x6mm MR001G | ||||
| 017 | SE00000854 | 0.83 | 1.00 | |
| Schroef 3x8 | ||||
| 018 | SE00000521 | 0.83 | 1.00 | |
| Niet meer leverbaar | ||||
| 019 | SE00000855 | |||
| Niet meer leverbaar | ||||
| 020 | SE00000856 | |||
| Stootrand assy MR002G | ||||
| 021 | SE00000913 | 23.75 | 28.74 | |
| Afdekkap rubb jack MR002 | ||||
| 022 | SE00000916 | 1.72 | 2.08 | |
| Afdekkap jack MR001 | ||||
| 023 | SE00000860 | 1.21 | 1.46 | |
| Borgring DMR115 | ||||
| 024 | SE00000754 | 0.83 | 1.00 | |
| Borgmoer DMR115 | ||||
| 025 | SE00000755 | 0.83 | 1.00 | |
| Volumeknopring | ||||
| 026 | SE21B1110A | 0.83 | 1.00 | |
| Draaiknop MR001 | ||||
| 027 | SE00000861 | 2.08 | 2.52 | |
| Handgreep MR001 | ||||
| 028 | SE00000862 | 10.81 | 13.08 | |
| Schroef 6x33mm DMR115 | ||||
| 029 | SE00000709 | 0.83 | 1.00 | |
| Schroef M6x16 | ||||
| 030 | SE09176166 | 0.83 | 1.00 | |
| Stootrand L MR001 | ||||
| 031 | SE00000863 | 7.44 | 9.00 | |
| Schroef M6x16 | ||||
| 032 | SE09176166 | 0.83 | 1.00 | |
| Stootrand R MR001 | ||||
| 033 | SE00000864 | 7.44 | 9.00 | |
| Schroef M6x16 | ||||
| 034 | SE09176166 | 0.83 | 1.00 | |
| Stootrand L MR001 | ||||
| 035 | SE00000865 | 4.58 | 5.54 | |
| Schroef M6x16 | ||||
| 036 | SE09176166 | 0.83 | 1.00 | |
| Stootrand R MR001 | ||||
| 037 | SE00000866 | 4.58 | 5.54 | |
| Niet meer leverbaar | ||||
| 038 | SE00000917 | |||
| Niet meer leverbaar | ||||
| 039 | SE00000868 | |||
| Sluitplaat | ||||
| 040 | SE00000536 | 1.02 | 1.23 | |
| Batterijkapset MR002G | ||||
| 041 | SE00000920 | 21.54 | 26.06 | |
| Pin 2x77mm | ||||
| 042 | SE00000539 | 0.83 | 1.00 | |
| Niet meer leverbaar | ||||
| 043 | SE00000872 | |||
| Schroef 3x8 | ||||
| 044 | SE00000521 | 0.83 | 1.00 | |
| Pakking batt.kap MR001G | ||||
| 045 | SE00000873 | 6.58 | 7.96 | |
| Contactstrip +/- | ||||
| 047 | SE021E9030 | 1.06 | 1.28 | |
| Contactstrip (-) | ||||
| 048 | SE00000467 | 0.83 | 1.00 | |
| Contactstrip (+) | ||||
| 049 | SE00000466 | 0.83 | 1.00 | |
| Schroef M6x14 | ||||
| 050 | SE9076146A | 0.83 | 1.00 | |
| Pakking | ||||
| 051 | SE024J9070 | 0.83 | 1.00 | |
| Speakergaas MR001 | ||||
| 052 | SE00000874 | 6.58 | 7.96 | |
| Schroef M4x12 | ||||
| 053 | SE09090023 | 0.83 | 1.00 | |
| Speaker R MR001 | ||||
| 054 | SE00000875 | 19.69 | 23.82 | |
| Speakerpakking MR001 | ||||
| 055 | SE00000876 | 2.80 | 3.39 | |
| Montagepin MR001 | ||||
| 056 | SE00000877 | 1.72 | 2.08 | |
| Schroef 3x14mm | ||||
| 057 | SE00000404 | 0.83 | 1.00 | |
| Afdekkap DC-jack MR001/2G | ||||
| 058 | SE00000878 | 1.21 | 1.46 | |
| Tapschroef 6x20mm | ||||
| 059 | SE00000176 | 0.83 | 1.00 | |
| Schroef 6x17mm DMR115 | ||||
| 060 | SE00000715 | 0.83 | 1.00 | |
| Handgreephendel L MR001G | ||||
| 061 | SE00000879 | 4.57 | 5.53 | |
| Handgreep MR001G | ||||
| 062 | SE00000881 | 9.52 | 11.52 | |
| Drukveer | ||||
| 063 | SE00000184 | 0.83 | 1.00 | |
| Kogel | ||||
| 064 | SE09994007 | 0.83 | 1.00 | |
| Kogel | ||||
| 065 | SE09994007 | 0.83 | 1.00 | |
| Drukveer | ||||
| 066 | SE00000184 | 0.83 | 1.00 | |
| Handgreep R annt MR002G | ||||
| 067 | SE00000883 | 11.19 | 13.54 | |
| Tapschroef 6x20mm | ||||
| 068 | SE00000176 | 0.83 | 1.00 | |
| Schroef 7x16mm DMR115 | ||||
| 069 | SE00000716 | 1.02 | 1.23 | |
| Schroef 10.8x4,5mm DMR115 | ||||
| 070 | SE00000717 | 1.43 | 1.73 | |
| Achterhuis MR002G | ||||
| 071 | SE00000926 | 28.68 | 34.70 | |
| Verzonken schroef 3x45 (ni) | ||||
| 072 | SE00000445 | 0.83 | 1.00 | |
| Handgreepplt R MR001G | ||||
| 073 | SE00000888 | 1.01 | 1.22 | |
| Handgreepplt L MR001G | ||||
| 074 | SE00000889 | 1.01 | 1.22 | |
| DC-jack houder MR002G | ||||
| 075 | SE00000929 | 0.83 | 1.00 | |
| Printplaat F Dcjack MR002G | ||||
| 076 | SE00000930 | 7.44 | 9.00 | |
| Tapschroef 1.7 | ||||
| 077 | SE09090011 | 0.83 | 1.00 | |
| Speakerhouder MR001 | ||||
| 078 | SE00000892 | 7.44 | 9.00 | |
| Draadboom m/aansl MR001/2G | ||||
| 079 | SE00000587 | 0.83 | 1.00 | |
| Speakerhouder MR001 | ||||
| 080 | SE00000892 | 7.44 | 9.00 | |
| Speakerpakking MR001 | ||||
| 081 | SE00000876 | 2.80 | 3.39 | |
| Speaker L MR001/2G | ||||
| 082 | SE00000893 | 19.69 | 23.82 | |
| Schroef M4x12 | ||||
| 083 | SE09090023 | 0.83 | 1.00 | |
| Speakergaas MR001 | ||||
| 084 | SE00000874 | 6.58 | 7.96 | |
| Pakking | ||||
| 085 | SE024J9070 | 0.83 | 1.00 | |
| Schroef M6x14 | ||||
| 086 | SE9076146A | 0.83 | 1.00 | |
| Aansluitunit XGT MR001/2G | ||||
| 087 | SE00000894 | 9.80 | 11.86 | |
| Tapschroef 3x10mm | ||||
| 088 | SE00000193 | 0.83 | 1.00 | |
| Aansluitunit CXT MR001/2G | ||||
| 089 | SE00000895 | 4.73 | 5.72 | |
| Schroef 3x8 | ||||
| 090 | SE00000521 | 0.83 | 1.00 | |
| Aansluitunit LXT MR001/2G | ||||
| 091 | SE00000896 | 4.73 | 5.72 | |
| Schroef 3x8 | ||||
| 092 | SE00000521 | 0.83 | 1.00 | |
| Printplaat D+M MR001/02G | ||||
| 093 | SE00000897 | 33.67 | 40.74 | |
| Schroef 3x8 | ||||
| 094 | SE00000521 | 0.83 | 1.00 | |
| Kabelbinder 150mm MR001 | ||||
| 095 | SE00000898 | 0.83 | 1.00 | |
| W/ties 100mm | ||||
| 096 | SE00000195 | 0.83 | 1.00 | |
| Achterhuispak MR001G | ||||
| 097 | SE00000899 | 1.43 | 1.73 | |
