Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Makita LM001J'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

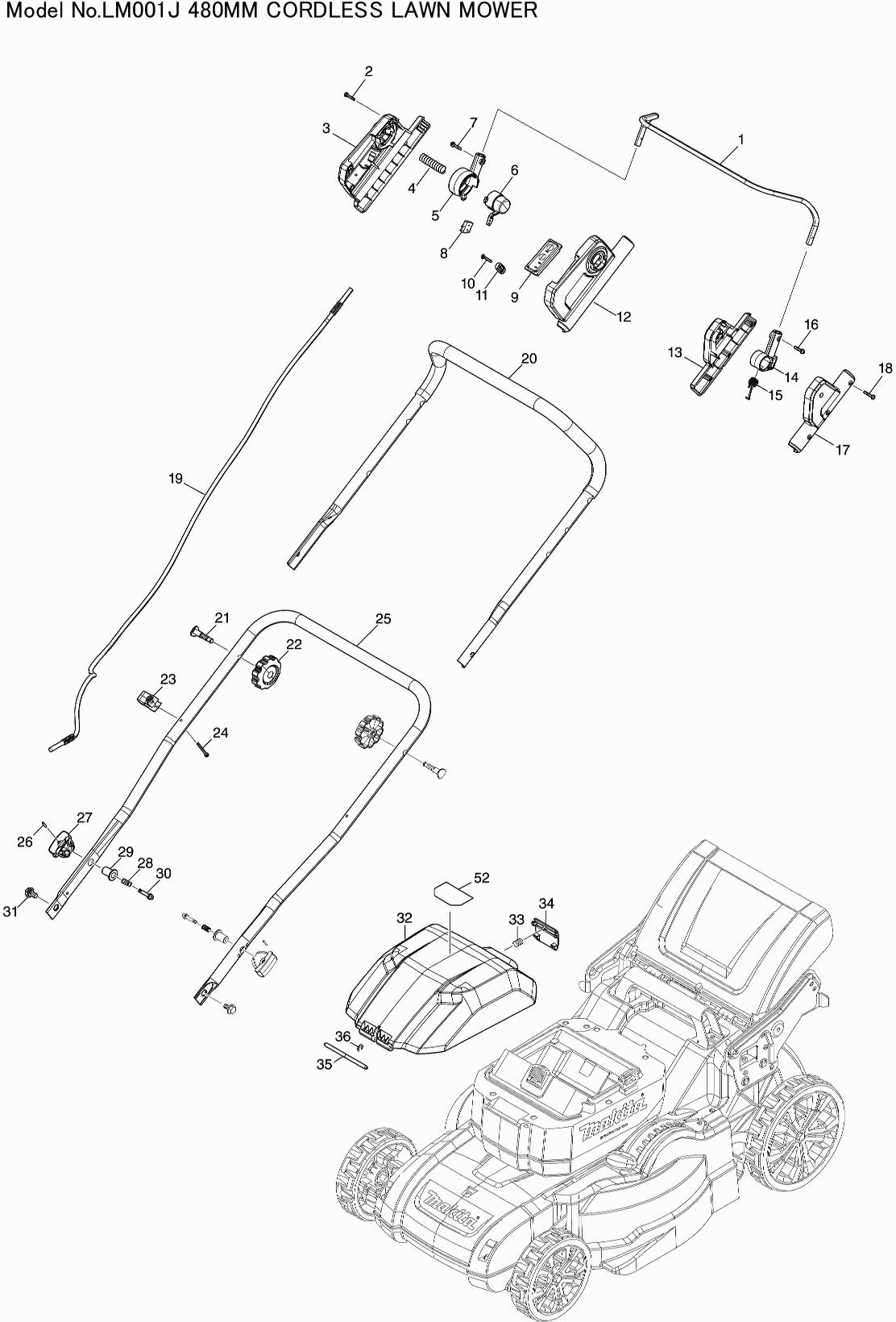

Tekeningen van de Makita LM001J
Onderdelen lijst van de Makita LM001J
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| Schakelhendel DLM532/533 | ||||
| 001 | 327424-8 | 7.44 | 9.00 | |
| Tapschroef 4x20 | ||||
| 002 | 266424-2 | 0.83 | 1.00 | |
| Schakelhuis LM001J | ||||
| 003 | 183U73-5 | 4.73 | 5.72 | |
| Drukveer 15 DLM460 | ||||
| 004 | 231227-3 | 0.83 | 1.00 | |
| Schakelhendelhouder R DLM533 | ||||
| 005 | 459856-2 | 2.08 | 2.52 | |
| Zeskant moer M4 | ||||
| 005C10 | 931102-0 | 0.83 | 1.00 | |
| Niet meer leverbaar | ||||
| 006 | 459857-0 | |||
| Schroef 4x20 | ||||
| 007 | 911138-5 | 0.83 | 1.00 | |
| Schakelaar LM001/2J | ||||
| 008 | 632T11-3 | 10.81 | 13.08 | |
| Schakelcircuit LM001/2J | ||||
| 009 | 141E30-3 | 12.90 | 15.61 | |
| Label A/U LM001C | ||||
| 009C10 | 8031N1-9 | 1.10 | 1.33 | |
| Tapschroef 4x20 | ||||
| 010 | 266424-2 | 0.83 | 1.00 | |
| Niet meer leverbaar | ||||
| 011 | 687123-7 | |||
| Schakelhuis LM001J | ||||
| 012 | 183U73-5 | 4.73 | 5.72 | |
| Schakelhuis LM001/2J | ||||
| 013 | 183U21-4 | 1.88 | 2.27 | |
| Schakelhendelhouder L DLM533 | ||||
| 014 | 459863-5 | 1.72 | 2.08 | |
| Zeskant moer M4 | ||||
| 014C10 | 931102-0 | 0.83 | 1.00 | |
| Torsieveer 12 DLM532/533 | ||||
| 015 | 232575-3 | 0.83 | 1.00 | |
| Schroef 4x20 | ||||
| 016 | 911138-5 | 0.83 | 1.00 | |
| Schakelhuis LM001/2J | ||||
| 017 | 183U21-4 | 1.88 | 2.27 | |
| Tapschroef 4x20 | ||||
| 018 | 266424-2 | 0.83 | 1.00 | |
| Kabel cpl LM001J | ||||
| 019 | 699176-4 | 9.80 | 11.86 | |
| Hendel boven LM001/2J | ||||
| 020 | 327871-3 | 17.97 | 21.74 | |
| Bout M8x50 LM001/2J | ||||
| 021 | 265C08-1 | 0.83 | 1.00 | |
| Vleugelmoer M8 LM001/2J | ||||
| 022 | 265C06-5 | 1.10 | 1.33 | |
| Draadklem LM001/2J | ||||
| 023 | 413944-9 | 0.83 | 1.00 | |
| Zeskant moer M4 | ||||
| 023C10 | 931102-0 | 0.83 | 1.00 | |
| Schroef 4X35 | ||||
| 024 | 911163-6 | 0.83 | 1.00 | |
| Hendel assy LM001J | ||||
| 025 | 122A73-0 | 17.97 | 21.74 | |
| Spanstift 2,5-16 | ||||
| 026 | 258004-8 | 0.83 | 1.00 | |
| Knop LM001J | ||||
| 027 | 413943-1 | 1.10 | 1.33 | |
| Drukveer 8 | ||||
| 028 | 234121-8 | 0.83 | 1.00 | |
| Borghouder LM001J | ||||
| 029 | 327877-1 | 1.88 | 2.27 | |
| Borgpen LM001J | ||||
| 030 | 327876-3 | 1.88 | 2.27 | |
| Moerbout M8 LM001/2J | ||||
| 031 | 265C07-3 | 0.83 | 1.00 | |
| Batterijkap LM001/2J | ||||
| 032 | 141E26-4 | 14.58 | 17.64 | |
| Label "waarsch" | ||||
| 032C10 | 890380-0 | 2.80 | 3.39 | |
| Drukveer 7 | ||||
| 033 | 231037-8 | 0.83 | 1.00 | |
| Blokkeerhendel DLM532/533 | ||||
| 034 | 459852-0 | 0.83 | 1.00 | |
| Stang 6mm LM001/2J | ||||
| 035 | 327875-5 | 0.83 | 1.00 | |
| Stopring E-5 | ||||
| 036 | 961018-5 | 0.83 | 1.00 | |
| Tapschroef 4x20 | ||||
| 037 | 266424-2 | 0.83 | 1.00 | |
| Batterijhuis LM001/2J | ||||
| 038 | 122A74-8 | 11.04 | 13.36 | |
| Borghendel LM001J | ||||
| 039 | 413942-3 | 1.10 | 1.33 | |
| Borgveer 9 LM001J | ||||
| 040 | 232716-1 | 0.83 | 1.00 | |
| Veerhouder LM001J | ||||
| 041 | 413940-7 | 0.83 | 1.00 | |
| Drukveer 11 LM001J | ||||
| 042 | 232718-7 | 0.83 | 1.00 | |
| Veergeleider LM001J | ||||
| 043 | 413941-5 | 0.83 | 1.00 | |
| Tapschroef 4x20 | ||||
| 044 | 266424-2 | 0.83 | 1.00 | |
| Parker 4x12mm LM001J | ||||
| 045 | 265B00-1 | 0.83 | 1.00 | |
| Aansluitunit LM001/2J | ||||
| 046 | 632S59-9 | 11.04 | 13.36 | |
| Tapschroef 4x20 | ||||
| 047 | 266424-2 | 0.83 | 1.00 | |
| Beschermkap LM001/2J | ||||
| 048 | 413932-6 | 1.10 | 1.33 | |
| Tapschroef 4x20 | ||||
| 049 | 266424-2 | 0.83 | 1.00 | |
| Koppeling LM001/2J | ||||
| 050 | 122B29-9 | 12.90 | 15.61 | |
| Pakking LM001J | ||||
| 050C10 | 422756-9 | 0.83 | 1.00 | |
| Veiligheidssleutel DLM460 | ||||
| 051 | 643535-4 | 3.22 | 3.90 | |
| Niet meer leverbaar | ||||
| 052 | 8046H7-8 | |||
| Tapschroef 4x20 | ||||
| 053 | 266424-2 | 0.83 | 1.00 | |
| Controller LM001J | ||||
| 054 | 620G28-0 | 172.50 | 208.72 | |
| Lijn filter | ||||
| 054C10 | 688140-0 | 4.58 | 5.54 | |
| Lijn filter | ||||
| 054C20 | 688163-8 | 0.83 | 1.00 | |
| Buffer LM001/2J | ||||
| 055 | 422757-7 | 0.83 | 1.00 | |
| Tapschroef 4x20 | ||||
| 056 | 266424-2 | 0.83 | 1.00 | |
| Niet meer leverbaar | ||||
| 057 | 687123-7 | |||
| Klemstrip * | ||||
| 058 | 687051-6 | 0.83 | 1.00 | |
| Tapschroef 4x20 | ||||
| 059 | 266424-2 | 0.83 | 1.00 | |
| Koppeling LM001/2J | ||||
| 060 | 413930-0 | 12.90 | 15.61 | |
| Motorhuis boven DLM532/533 | ||||
| 061 | 319869-4 | 8.46 | 10.24 | |
| Veerring 19mm DLM532/533 | ||||
| 062 | 253455-0 | 0.83 | 1.00 | |
| Parker 2x8mm DLM532/533 | ||||
| 063 | 265B29-7 | 0.83 | 1.00 | |
| Controller B DLM532/533 | ||||
| 064 | 620B88-2 | 19.80 | 23.96 | |
| Veld assy LM001/2J | ||||
| 065 | 629A87-5 | 63.66 | 77.03 | |
| Schroef M3X6 | ||||
| 066 | 652031-1 | 0.83 | 1.00 | |
| Kogellager 6000ddw | ||||
| 067 | 210141-6 | 1.21 | 1.46 | |
| Anker assy LM001/2J | ||||
| 068 | 519711-1 | 51.76 | 62.63 | |
| Niet meer leverbaar | ||||
| 069 | 211387-7 | |||
| Motorhuis LM001/2J | ||||
| 070 | 313391-3 | 9.80 | 11.86 | |
| Schroef 5X60 * | ||||
| 071 | 911681-4 | 0.83 | 1.00 | |
| Schroef 5x25 | ||||
| 072 | 911243-8 | 0.83 | 1.00 | |
| Motorsteun LM001/2J | ||||
| 073 | 413928-7 | 9.80 | 11.86 | |
| Zeskant moer M5 | ||||
| 073C10 | 931202-6 | 0.83 | 1.00 | |
| Motortussenplaat DLM532/533 | ||||
| 074 | 459853-8 | 2.08 | 2.52 | |
| Tapschroef 4x20 | ||||
| 075 | 266424-2 | 0.83 | 1.00 | |
| Inbusbout M8x30 LM001/2J | ||||
| 076 | 265C22-7 | 0.83 | 1.00 | |
| Waaier 170 LM001/2J | ||||
| 077 | 240229-8 | 3.70 | 4.48 | |
| Meshouder 48cm LM001J | ||||
| 078 | 313393-9 | 4.73 | 5.72 | |
| Tapschroef 4x20 | ||||
| 079 | 266424-2 | 0.83 | 1.00 | |
| Cirkelmes 48cm | ||||
| 080 | 191V97-3 | 17.87 | 21.62 | |
| Maaimesbout M8x35mm DLM532 A | ||||
| 081 | 265A69-9 | 0.83 | 1.00 | |
| Niet meer leverbaar | ||||
| 082 | 8043Y5-3 | |||
| Achterdeksel LM001J | ||||
| 083 | 141H25-4 | 7.67 | 9.28 | |
| Stang 6mm LM001J | ||||
| 084 | 327874-7 | 2.21 | 2.67 | |
| Drukveer 8mm LM001/2J | ||||
| 085 | 232721-8 | 1.10 | 1.33 | |
| Hendelsteun R LM001/2J | ||||
| 086 | 347867-8 | 11.04 | 13.36 | |
| Schroef 4x20 | ||||
| 087 | 266420-0 | 0.83 | 1.00 | |
| Parker 5x20mm LM001/2J | ||||
| 088 | 265C05-7 | 0.83 | 1.00 | |
| Stopring E-5 | ||||
| 089 | 961018-5 | 0.83 | 1.00 | |
| Hendelsteun L LM001/2J | ||||
| 090 | 347866-0 | 11.04 | 13.36 | |
| Tapschroef 4x20 | ||||
| 091 | 266424-2 | 0.83 | 1.00 | |
| Handgreep LM001/2J | ||||
| 092 | 413938-4 | 2.53 | 3.06 | |
| Tapschroef 4x20 | ||||
| 093 | 266424-2 | 0.83 | 1.00 | |
| Hoogteplaat LM001/2J | ||||
| 094 | 162993-0 | 6.74 | 8.16 | |
| Met.schroef M3x12mm | ||||
| 095 | 266816-5 | 0.83 | 1.00 | |
| Hoogteversteller LM001/2J | ||||
| 096 | 413939-2 | 1.10 | 1.33 | |
| Tapschroef 4x20 | ||||
| 097 | 266424-2 | 0.83 | 1.00 | |
| Maaidekkap LM001J | ||||
| 098 | 413923-7 | 21.54 | 26.06 | |
| Achterkap LM001J | ||||
| 099 | 413924-5 | 2.92 | 3.53 | |
| Tapschroef 4x20 | ||||
| 100 | 266424-2 | 0.83 | 1.00 | |
| Maaidek LM001J | ||||
| 101 | 413922-9 | 48.42 | 58.59 | |
| Tapschroef 4x20 | ||||
| 102 | 266424-2 | 0.83 | 1.00 | |
| Borgplaat LM001/2J | ||||
| 103 | 347870-9 | 0.83 | 1.00 | |
| Drukveer 17 LM001/2J | ||||
| 104 | 232717-9 | 2.21 | 2.67 | |
| Niet meer leverbaar | ||||
| 105 | 961012-7 | |||
| Sluitring 8 | ||||
| 106 | 253731-2 | 0.83 | 1.00 | |
| Sluitring 8 | ||||
| 107 | 253731-2 | 0.83 | 1.00 | |
| Verbindingstang R LM001/2J | ||||
| 108 | 347873-3 | 9.80 | 11.86 | |
| Verbindingstang F LM001J | ||||
| 109 | 347872-5 | 5.96 | 7.21 | |
| Sluitring 8 | ||||
| 110 | 253731-2 | 0.83 | 1.00 | |
| Niet meer leverbaar | ||||
| 111 | 961012-7 | |||
| Sluitring 8 | ||||
| 112 | 267281-1 | 0.83 | 1.00 | |
| Stanghouder LM001/2J | ||||
| 113 | 313389-0 | 8.63 | 10.44 | |
| Hoogteversteller LM001/2J | ||||
| 114 | 327872-1 | 3.31 | 4.01 | |
| Drukveer 9mm LM001/2J | ||||
| 115 | 232715-3 | 0.83 | 1.00 | |
| Stang 7mm LM001/2J | ||||
| 116 | 327873-9 | 0.83 | 1.00 | |
| Tapschroef 4x20 | ||||
| 117 | 266424-2 | 0.83 | 1.00 | |
| Plaat LM001/2J | ||||
| 118 | 347869-4 | 0.83 | 1.00 | |
| Flensbout M8x12 | ||||
| 119 | 265324-3 | 1.21 | 1.46 | |
| Voorwiel 180mm LM001/2J | ||||
| 120 | 141E34-5 | 11.42 | 13.82 | |
| Kogellager 6001Ddw A | ||||
| 121 | 210163-6 | 1.21 | 1.46 | |
| Vooras LM001J | ||||
| 122 | 162991-4 | 9.80 | 11.86 | |
| Plaat LM001/2J | ||||
| 123 | 347869-4 | 0.83 | 1.00 | |
| Tapschroef 4x20 | ||||
| 124 | 266424-2 | 0.83 | 1.00 | |
| Borgmoer M6 LM001/2J | ||||
| 125 | 252301-4 | 0.83 | 1.00 | |
| Flensbout M8x12 | ||||
| 126 | 265324-3 | 1.21 | 1.46 | |
| Achterwiel 230mm LM001/2J | ||||
| 127 | 141E35-3 | 12.90 | 15.61 | |
| Kogellager 6001Ddw A | ||||
| 128 | 210163-6 | 1.21 | 1.46 | |
| Verzonken schroef 5x10 | ||||
| 129 | 912207-5 | 0.83 | 1.00 | |
| Ashouder achter LM001/2J | ||||
| 130 | 313390-5 | 2.53 | 3.06 | |
| As achter LM001J | ||||
| 131 | 162992-2 | 16.24 | 19.65 | |
| Draadklem 19 LM001/2J | ||||
| 132 | 347865-2 | 0.83 | 1.00 | |
| Tapschroef 4x20 | ||||
| 133 | 266424-2 | 0.83 | 1.00 | |
| Borgmoer M6 LM001/2J | ||||
| 134 | 252301-4 | 0.83 | 1.00 | |
| Grasvangzakbeugel LM001J | ||||
| 135 | 162A29-1 | 12.90 | 15.61 | |
| Grasvangzak | ||||
| 136 | 162A28-3 | 17.87 | 21.62 | |
| Niet meer leverbaar | ||||
| 137 | 8113L0-5 | |||
| Naamplaat LM001J | ||||
| 138 | 8113K8-2 | 0.83 | 1.00 | |
