Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Makita DHW080ZK'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

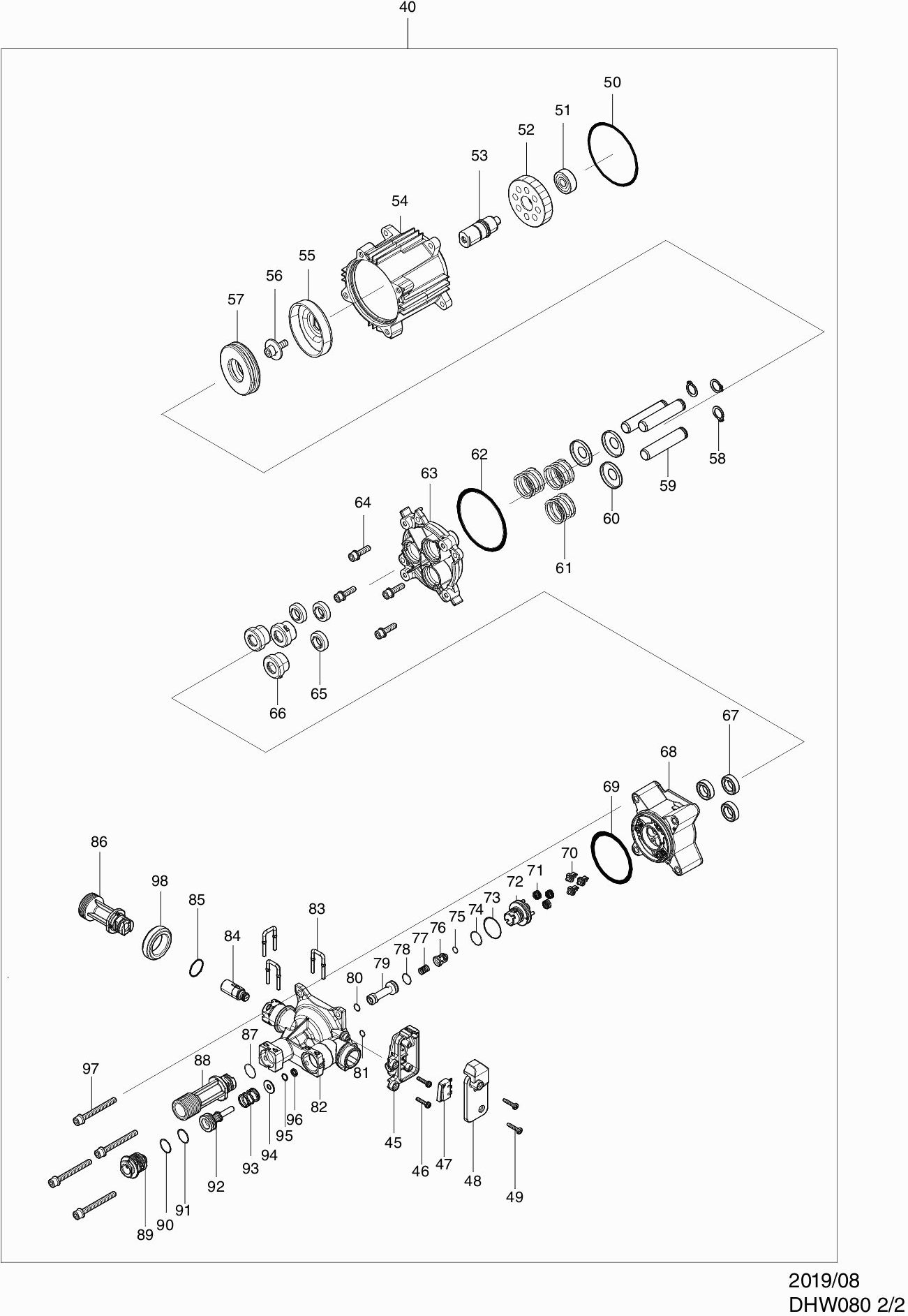

Tekeningen van de Makita DHW080ZK
Onderdelen lijst van de Makita DHW080ZK
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| Niet meer leverbaar | ||||
| 001 | 266326-2 | |||
| Accesoirebox DHW080 | ||||
| 002 | 458336-5 | 14.24 | 17.23 | |
| Batterijbakdeksel DHW080 | ||||
| 003 | 458332-3 | 8.52 | 10.31 | |
| Bladveer DLM460 | ||||
| 004 | 232471-5 | 1.01 | 1.22 | |
| Niet meer leverbaar | ||||
| 005 | 266326-2 | |||
| Sluiting DHW080 | ||||
| 006 | 459380-5 | 1.43 | 1.73 | |
| Behuizingsset DHW080 | ||||
| 007 | 183M37-1 | 46.85 | 56.69 | |
| Waarschuwingslabel Hw1200 | ||||
| 007C10 | 809R02-9 | 0.83 | 1.00 | |
| Schakelknop Hw1200 | ||||
| 008 | 456837-7 | 1.02 | 1.23 | |
| Scharnierpen 4mm | ||||
| 009 | 268292-9 | 0.83 | 1.00 | |
| O-ring 14 | ||||
| 010 | 213176-6 | 0.83 | 1.00 | |
| Schakelaar 1703 DVC750L | ||||
| 011 | 651382-9 | 12.58 | 15.22 | |
| Sluitplaat DHW080 | ||||
| 012 | 347530-3 | 0.83 | 1.00 | |
| Buffer DHW080 | ||||
| 013 | 422411-3 | 0.83 | 1.00 | |
| O-ring 38 | ||||
| 014 | 213527-3 | 1.01 | 1.22 | |
| Niet meer leverbaar | ||||
| 016 | 257926-9 | |||
| Scharnierpen DHW080 | ||||
| 017 | 327333-1 | 1.24 | 1.50 | |
| Haak DHW080 | ||||
| 018 | 347513-3 | 1.43 | 1.73 | |
| Torsieveer 4mm DHW080 | ||||
| 019 | 232435-9 | 0.83 | 1.00 | |
| Controller DHW080 | ||||
| 020 | 620B17-5 | 166.13 | 201.02 | |
| Label indicatie DUC306 | ||||
| 020C10 | 819R38-0 | 1.43 | 1.73 | |
| Niet meer leverbaar | ||||
| 021 | 266326-2 | |||
| Houder DHW080 | ||||
| 022 | 183M55-9 | 8.46 | 10.24 | |
| Rubber pen 6 | ||||
| 022C10 | 263005-3 | 0.83 | 1.00 | |
| Aansluitunit (3 contacten) | ||||
| 023 | 644809-6 | 4.08 | 4.94 | |
| Houder DHW080 | ||||
| 024 | 183M55-9 | 8.46 | 10.24 | |
| Rubber pen 6 | ||||
| 024C10 | 263005-3 | 0.83 | 1.00 | |
| Serienr. label DHW080 | ||||
| 025 | 855Y74-4 | 0.83 | 1.00 | |
| Stootrubber DHW080 | ||||
| 028 | 422250-1 | 1.43 | 1.73 | |
| Motorhuis DHW080 | ||||
| 029 | 458326-8 | 8.52 | 10.31 | |
| Buffer DHW080 | ||||
| 030 | 422409-0 | 0.83 | 1.00 | |
| Veld DHW080 | ||||
| 031 | 629414-0 | 46.85 | 56.69 | |
| Vulplaat DHW080 | ||||
| 032 | 458327-6 | 1.24 | 1.50 | |
| Kogellager 607Zz A | ||||
| 033 | 211382-7 | 0.83 | 1.00 | |
| Niet meer leverbaar | ||||
| 034 | 266326-2 | |||
| Anker DHW080 | ||||
| 035 | 519570-3 | 39.92 | 48.30 | |
| Niet meer leverbaar | ||||
| 036 | 922233-6 | |||
| Kogellager 6001dw | ||||
| 037 | 211131-2 | 9.52 | 11.52 | |
| Tandwielset cpl DHW080 | ||||
| 038 | 161823-2 | 11.16 | 13.50 | |
| Rubber pen 4 | ||||
| 038C10 | 263002-9 | 0.83 | 1.00 | |
| Niet meer leverbaar | ||||
| 039 | 922233-6 | |||
| Niet meer leverbaar | ||||
| 040 | 126764-9 | |||
| Buffer DHW080 | ||||
| 041 | 422409-0 | 0.83 | 1.00 | |
| Behuizingsset DHW080 | ||||
| 042 | 183M37-1 | 46.85 | 56.69 | |
| Waarschuwingslabel Hw1200 | ||||
| 042C10 | 809R02-9 | 0.83 | 1.00 | |
| Niet meer leverbaar | ||||
| 043 | 266326-2 | |||
| Naamplaat DHW080 | ||||
| 044 | 855Y66-3 | 2.80 | 3.39 | |
| Schakelkast DHW080 | ||||
| 045 | 183M00-4 | 2.80 | 3.39 | |
| Schroef 3x16 | ||||
| 046 | 911028-2 | 0.83 | 1.00 | |
| Schakelaar DHW080 | ||||
| 047 | 632N61-2 | 11.16 | 13.50 | |
| Schakelkast DHW080 | ||||
| 048 | 183M00-4 | 2.80 | 3.39 | |
| Niet meer leverbaar | ||||
| 049 | 266429-2 | |||
| O-ring 67mm DHW080 | ||||
| 050 | 213706-3 | 0.83 | 1.00 | |
| Kogellager 628DDW | ||||
| 051 | 210032-1 | 4.57 | 5.53 | |
| Tandwiel 47 DHW080 | ||||
| 052 | 221597-8 | 9.54 | 11.54 | |
| As DHW080 | ||||
| 053 | 327076-5 | 3.55 | 4.30 | |
| Pomphuis DHW080 | ||||
| 054 | 161821-6 | 26.11 | 31.59 | |
| Tuimelplaat DHW080 | ||||
| 055 | 347341-6 | 17.90 | 21.66 | |
| Inbusb. M6x20mm | ||||
| 056 | 265A34-8 | 0.83 | 1.00 | |
| Druklager 2454 DHW080 | ||||
| 057 | 210176-7 | 39.89 | 48.27 | |
| Borgring S-12 | ||||
| 058 | 961052-5 | 0.83 | 1.00 | |
| Zuigerpen DHW080 | ||||
| 059 | 327075-7 | 21.70 | 26.26 | |
| Borgring C DHW080 | ||||
| 060 | 347340-8 | 0.83 | 1.00 | |
| Drukveer 22mm DHW080 | ||||
| 061 | 232434-1 | 0.83 | 1.00 | |
| O-ring 67mm DHW080 | ||||
| 062 | 213706-3 | 0.83 | 1.00 | |
| Pompcilinder DHW080 | ||||
| 063 | 319670-7 | 12.55 | 15.19 | |
| Niet meer leverbaar | ||||
| 064 | 922233-6 | |||
| Keerring 12mm DHW080 | ||||
| 065 | 213861-1 | 4.57 | 5.53 | |
| Keerringhouder 12mm DHW080 | ||||
| 066 | 458323-4 | 0.83 | 1.00 | |
| Pakkingring 12mm DHW080 | ||||
| 067 | 422254-3 | 4.09 | 4.95 | |
| Cilinderkop DHW080 | ||||
| 068 | 161820-8 | 16.13 | 19.52 | |
| O-ring 53 | ||||
| 069 | 213656-2 | 1.21 | 1.46 | |
| Uitlaatklep DHW080 | ||||
| 070 | 458320-0 | 0.83 | 1.00 | |
| Drukveer 7mm DHW080 | ||||
| 071 | 232432-5 | 0.83 | 1.00 | |
| Klephouder DHW080 | ||||
| 072 | 458321-8 | 2.45 | 2.96 | |
| O-ring 21 | ||||
| 073 | 213379-2 | 0.83 | 1.00 | |
| O-ring 13mm DHW080 | ||||
| 074 | 213238-0 | 0.83 | 1.00 | |
| O-ring 5mm | ||||
| 075 | 213005-3 | 0.83 | 1.00 | |
| Veerhouder A DHW080 | ||||
| 076 | 458322-6 | 1.02 | 1.23 | |
| Drukveer 6mm DHW080 | ||||
| 077 | 232433-3 | 0.83 | 1.00 | |
| O-ring 10 | ||||
| 078 | 213055-8 | 0.83 | 1.00 | |
| Stelbushouder DHW080 | ||||
| 079 | 458309-8 | 1.70 | 2.06 | |
| O-ring 7 | ||||
| 080 | 213011-8 | 0.83 | 1.00 | |
| O-ring 5mm | ||||
| 081 | 213005-3 | 0.83 | 1.00 | |
| Pomphuisdeksel DHW080 | ||||
| 082 | 319784-2 | 31.61 | 38.25 | |
| Pen U DHW080 | ||||
| 083 | 327074-9 | 0.83 | 1.00 | |
| Ontluchtingsklep DHW080 | ||||
| 084 | 126765-7 | 5.87 | 7.10 | |
| O-ring 14 | ||||
| 085 | 213176-6 | 0.83 | 1.00 | |
| Inlaatklep DHW080 | ||||
| 086 | 458316-1 | 2.45 | 2.96 | |
| O-ring 14 | ||||
| 087 | 213176-6 | 0.83 | 1.00 | |
| Uitlaatklep DHW080 | ||||
| 088 | 458315-3 | 2.45 | 2.96 | |
| Pompdekselkap DHW080 | ||||
| 089 | 458310-3 | 2.05 | 2.48 | |
| O-ring 16 | ||||
| 090 | 213223-3 | 0.83 | 1.00 | |
| O-ring 14 | ||||
| 091 | 213154-6 | 0.83 | 1.00 | |
| Drukpin DHW080 | ||||
| 092 | 458311-1 | 1.70 | 2.06 | |
| Drukveer 11mm DHW080 | ||||
| 093 | 232429-4 | 0.83 | 1.00 | |
| Revet 5A DHW080 | ||||
| 094 | 253407-1 | 0.83 | 1.00 | |
| O-ring 5mm | ||||
| 095 | 213005-3 | 0.83 | 1.00 | |
| Revet 5B DHW080 | ||||
| 096 | 253408-9 | 0.83 | 1.00 | |
| Inbusb. M5x50mm | ||||
| 097 | 265A33-0 | 0.83 | 1.00 | |
| Buffer DHW080 | ||||
| 098 | 422409-0 | 0.83 | 1.00 | |
| Voet | ||||
| 100 | 286212-1 | 0.83 | 1.00 | |
| Niet meer leverbaar | ||||
| 102 | 620K96-7 | |||
| Niet meer leverbaar | ||||
| 103 | 638A35-3 | |||
| Niet meer leverbaar | ||||
| 104 | 652119-7 | |||
