Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Hikoki NV75AG'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

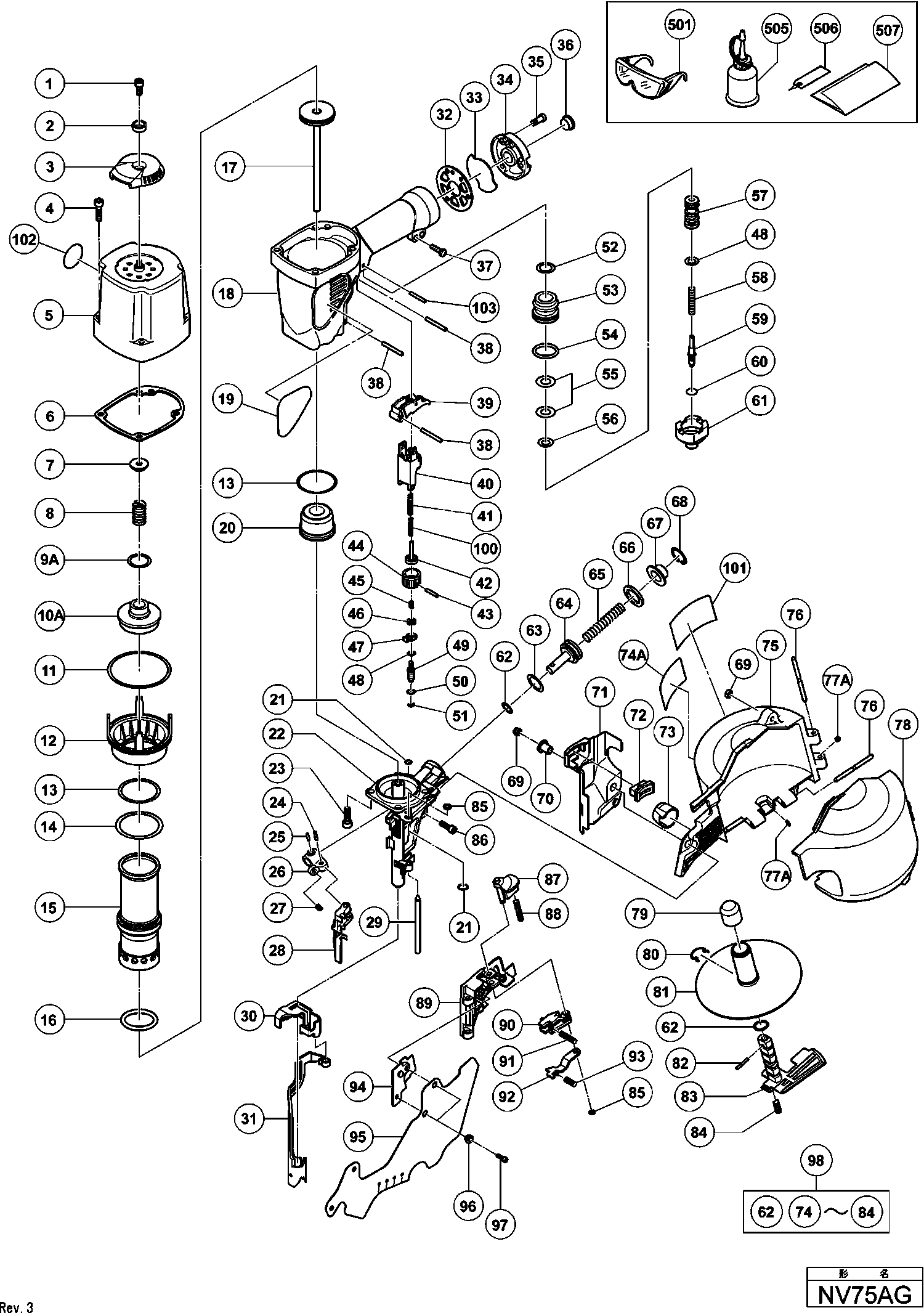

Tekeningen van de Hikoki NV75AG
Onderdelen lijst van de Hikoki NV75AG
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| Imbusbout M6x12 (oud 949657z,10s) | ||||
| 1 | 949657@1417 | 3.00 | 3.63 | |
| Plate | ||||
| 2 | 880515@1417 | 5.85 | 7.08 | |
| Top Cover | ||||
| 3 | 884332@1417 | 4.20 | 5.08 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 4 | 949822@1417 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 5 | 883451@1417 | |||
| Pakking B) | ||||
| 6 | 883452@1417 | 1.80 | 2.18 | |
| Head Bumper | ||||
| 7 | 882914@1417 | 6.60 | 7.99 | |
| Head Valve Spring | ||||
| 8 | 882913@1417 | 6.75 | 8.17 | |
| O-ring (i.d.20.8) | ||||
| 9A | 883992@1417 | 1.65 | 2.00 | |
| Hoofdklep (oud 882912) | ||||
| 10A | 882927@1417 | 14.10 | 17.06 | |
| O-ring (s-70) | ||||
| 11 | 878863@1417 | 2.40 | 2.90 | |
| Cylinder Plate | ||||
| 12 | 882910@1417 | 6.45 | 7.80 | |
| 0-ring (s-46) | ||||
| 13 | 882874@1417 | 1.65 | 2.00 | |
| O-ring (1ap-48) | ||||
| 14 | 877368@1417 | 1.95 | 2.36 | |
| Cylinder (oud 883450) | ||||
| 15 | 883989@1417 | 50.46 | 61.06 | |
| O-ring I.d. 37 | ||||
| 16 | 883431@1417 | 1.65 | 2.00 | |
| Slagpen (h) | ||||
| 17 | 883980@1417 | 87.59 | 105.98 | |
| Behuizing | ||||
| 18 | 883988@1417 | 68.89 | 83.35 | |
| Piston Bumper | ||||
| 20 | 883432@1417 | 14.03 | 16.97 | |
| O-ring (p-4) | ||||
| 21 | 874436@1417 | 1.05 | 1.27 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 22 | 883981@1417 | |||
| Nylock High Tension Bout M6x20 | ||||
| 23 | 880675@1417 | 4.05 | 4.90 | |
| As (b) | ||||
| 24 | 883093@1417 | 3.30 | 3.99 | |
| Rol Pin D4x16 (10 Stuks) | ||||
| 25 | 949497@1417 | 2.55 | 3.09 | |
| Feeder Arm (b) | ||||
| 26 | 883144@1417 | 46.75 | 56.57 | |
| Veer Voor Toevoermechanisme | ||||
| 27 | 883143@1417 | 1.65 | 2.00 | |
| Toevoermechanisme | ||||
| 28 | 883092@1417 | 45.10 | 54.57 | |
| Nail Guide Shaft | ||||
| 29 | 883091@1417 | 7.80 | 9.44 | |
| Pushing Lever Cover (b) | ||||
| 30 | 882900@1417 | 3.45 | 4.17 | |
| Pushing Lever (a) | ||||
| 31 | 883852@1417 | 81.68 | 98.83 | |
| Pakking B) | ||||
| 32 | 883678@1417 | 3.30 | 3.99 | |
| Stoffilter | ||||
| 33 | 883679@1417 | 7.05 | 8.53 | |
| Cap | ||||
| 34 | 881949@1417 | 4.80 | 5.81 | |
| Inbus Hd.bout M5x16 (10 Stuks) | ||||
| 35 | 949821@1417 | 2.55 | 3.09 | |
| Dust Cap | ||||
| 36 | 872035@1417 | 1.04 | 1.26 | |
| Machine Schroef M5x30 Zwart | ||||
| 37 | 880881@1417 | 1.05 | 1.27 | |
| Rol Pin D3x28 (10 Stuks) | ||||
| 38 | 949865@1417 | 2.55 | 3.09 | |
| Trigger | ||||
| 39 | 883990@1417 | 8.10 | 9.80 | |
| Pushing Lever Guide | ||||
| 40 | 882885@1417 | 6.45 | 7.80 | |
| Pushing Lever Spring | ||||
| 41 | 882892@1417 | 5.10 | 6.17 | |
| Pushing Lever Spring (a) | ||||
| 41 | 883305@1417 | 1.50 | 1.82 | |
| Pushing Lever (c) | ||||
| 42 | 882891@1417 | 18.15 | 21.96 | |
| Rol Pin D2x16 | ||||
| 43 | 880093@1417 | 1.04 | 1.26 | |
| Regelaar | ||||
| 44 | 883982@1417 | 1.50 | 1.82 | |
| Adjuster Spring | ||||
| 45 | 882890@1417 | 1.65 | 2.00 | |
| Adjuster Plate | ||||
| 46 | 882887@1417 | 3.30 | 3.99 | |
| Adjuster Plate | ||||
| 47 | 882886@1417 | 3.30 | 3.99 | |
| O-RING (S-4) | ||||
| 48 | 981317@1417 | 1.05 | 1.27 | |
| Pushing Lever (b) | ||||
| 49 | 882888@1417 | 17.33 | 20.96 | |
| O-ring (s-5) | ||||
| 50 | 872822@1417 | 3.00 | 3.63 | |
| Stopring | ||||
| 51 | 872971@1417 | 1.05 | 1.27 | |
| HEAD VALVE O-RING (I.D.16.8) | ||||
| 52 | 877699@1417 | 1.05 | 1.27 | |
| Valve Bushing (b) | ||||
| 53 | 878881@1417 | 39.74 | 48.08 | |
| O-ring (s-18) | ||||
| 54 | 878885@1417 | 1.05 | 1.27 | |
| O-RING (I.D. 8.8) | ||||
| 55 | 878925@1417 | 1.05 | 1.27 | |
| O-RING (I.D.11) | ||||
| 56 | 878887@1417 | 1.65 | 2.00 | |
| Valve Piston (b) | ||||
| 57 | 880672@1417 | 32.18 | 38.93 | |
| Plunger Veer | ||||
| 58 | 878884@1417 | 1.65 | 2.00 | |
| Plunger (a) | ||||
| 59 | 880673@1417 | 14.71 | 17.80 | |
| O-RING (I.D.1.8) | ||||
| 60 | 878888@1417 | 1.05 | 1.27 | |
| Valve Bushing (a) | ||||
| 61 | 882920@1417 | 29.56 | 35.77 | |
| Valve Bushing (a) | ||||
| 61 | 880671@1417 | 23.65 | 28.62 | |
| O-ring (p-9) | ||||
| 62 | 872645@1417 | 1.65 | 2.00 | |
| O-ring (p-21) | ||||
| 63 | 880330@1417 | 1.05 | 1.27 | |
| Feed Piston | ||||
| 64 | 883300@1417 | 21.73 | 26.29 | |
| Veer | ||||
| 65 | 882883@1417 | 1.80 | 2.18 | |
| Demperring | ||||
| 66 | 877711@1417 | 1.95 | 2.36 | |
| Feed Piston Cover | ||||
| 67 | 880331@1417 | 3.15 | 3.81 | |
| Veerring D28 (10 Stuks) | ||||
| 68 | 939555@1417 | 4.35 | 5.26 | |
| Nylon Moer M5 | ||||
| 69 | 877371@1417 | 1.05 | 1.27 | |
| Sleeve | ||||
| 70 | 882907@1417 | 3.30 | 3.99 | |
| Pushing Lever Cover (a) | ||||
| 71 | 883853@1417 | 7.05 | 8.53 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 72 | 882901@1417 | |||
| Neus Kap (a) | ||||
| 73 | 883106@1417 | 6.45 | 7.80 | |
| Waarschuwings Label | ||||
| 74A | 884070@1417 | 1.65 | 2.00 | |
| Magazijn | ||||
| 75 | 883984@1417 | 14.30 | 17.30 | |
| Pin | ||||
| 76 | 883111@1417 | 9.75 | 11.80 | |
| Ring Voor Schacht | ||||
| 77A | 877826@1417 | 2.55 | 3.09 | |
| Magazijn Deksel | ||||
| 78 | 883985@1417 | 13.95 | 16.88 | |
| Holder Cap (a) | ||||
| 79 | 883987@1417 | 1.50 | 1.82 | |
| Ratchet Spring | ||||
| 80 | 880398@1417 | 7.65 | 9.26 | |
| Nagelhouder | ||||
| 81 | 880503@1417 | 9.30 | 11.25 | |
| Rol Pin D2.5x12 | ||||
| 82 | 878791@1417 | 1.04 | 1.26 | |
| Holder Shaft (a) | ||||
| 83 | 883986@1417 | 4.35 | 5.26 | |
| Spring | ||||
| 84 | 881826@1417 | 1.05 | 1.27 | |
| Ring Voor Schacht | ||||
| 85 | 880319@1417 | 1.65 | 2.00 | |
| Bout Hd M5x20 (10 Stuks) | ||||
| 86 | 949757@1417 | 3.00 | 3.63 | |
| Guide Lock Nv50ae | ||||
| 87 | 886107@1417 | 5.10 | 6.17 | |
| Veer (oud 878308) | ||||
| 88 | 880446@1417 | 1.35 | 1.63 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 89 | 883392@1417 | |||
| Nail Stopper (a) | ||||
| 90 | 883085@1417 | 31.90 | 38.60 | |
| Veer | ||||
| 91 | 883088@1417 | 1.65 | 2.00 | |
| Nail Stopper (b) | ||||
| 92 | 883086@1417 | 3.30 | 3.99 | |
| Veer | ||||
| 93 | 883087@1417 | 1.65 | 2.00 | |
| Nail Guide Cover | ||||
| 94 | 883089@1417 | 4.35 | 5.26 | |
| Cover | ||||
| 95 | 883393@1417 | 7.80 | 9.44 | |
| Sleeve (b) | ||||
| 96 | 882881@1417 | 3.30 | 3.99 | |
| Inbusbout Hd M4x12 | ||||
| 97 | 880630@1417 | 1.05 | 1.27 | |
| Magazijn Kompleet | ||||
| 98 | 883983@1417 | 47.71 | 57.73 | |
| Pushing Lever Spring (b) | ||||
| 100 | 883302@1417 | 1.65 | 2.00 | |
| Niet meer leverbaar, geen vervanging | ||||
| 101 | 878183@1417 | |||
| Warning Label (a) | ||||
| 102 | 883513@1417 | 1.65 | 2.00 | |
| Rol Pin D3x22 (10 Stuks) | ||||
| 103 | 949864@1417 | 1.65 | 2.00 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 501 | 875769@1417 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 505 | 877153@1417 | |||
| Caution Tag | ||||
| 506 | 887288@1417 | 1.73 | 2.09 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 507 | 882414@1417 | |||
| Sequential Trip Mechanism Set | ||||
| 601 | 883991@1417 | 84.56 | 102.32 | |
| Hanger Parts Set | ||||
| 602 | 888097@1417 | 492.94 | 596.45 | |
