Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Hikoki H60MEY'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

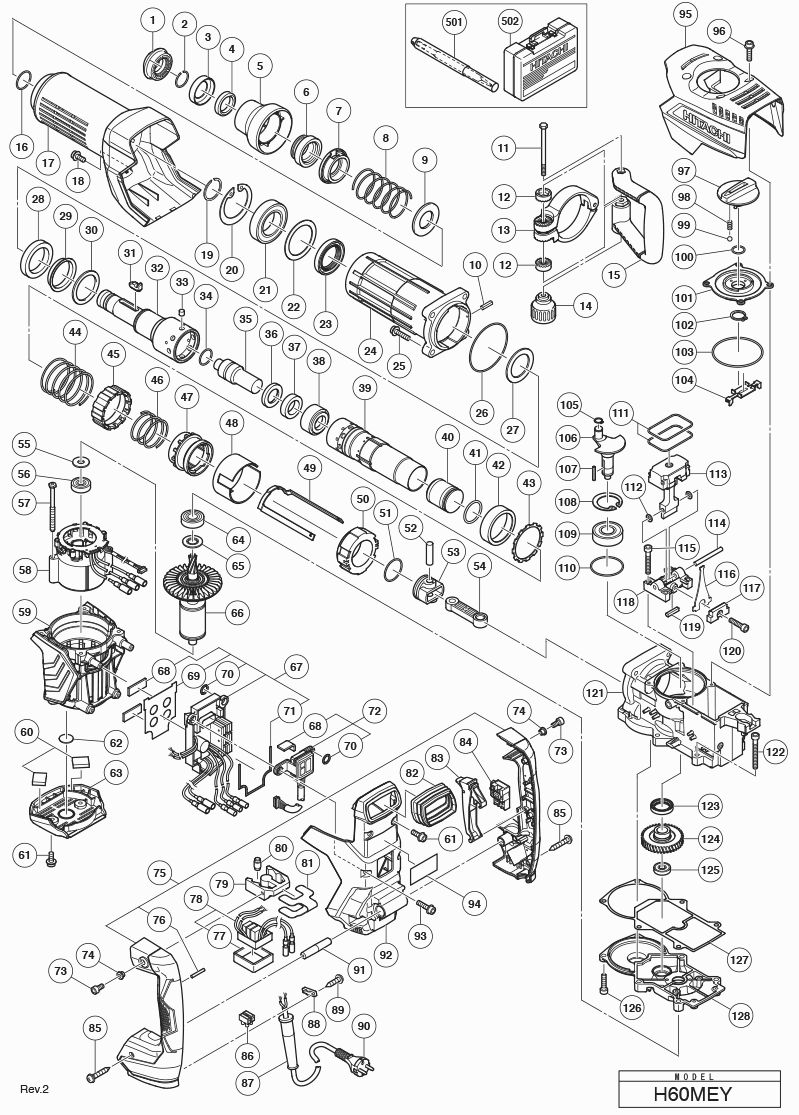

Tekeningen van de Hikoki H60MEY
Onderdelen lijst van de Hikoki H60MEY
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| Voorkap | ||||
| 1 | 337562@1417 | 2.85 | 3.45 | |
| Borgring | ||||
| 2 | 318590@1417 | 1.65 | 2.00 | |
| Retainer Washer | ||||
| 3 | 338155@1417 | 4.80 | 5.81 | |
| Retainer Damper (a) | ||||
| 4 | 339053@1417 | 9.75 | 11.80 | |
| Grip | ||||
| 5 | 338154@1417 | 1.80 | 2.18 | |
| Bit Lock Holder | ||||
| 6 | 370669@1417 | 9.15 | 11.07 | |
| Trust Plate | ||||
| 7 | 370668@1417 | 11.85 | 14.34 | |
| Retainer Spring | ||||
| 8 | 339052@1417 | 1.95 | 2.36 | |
| Spring Holder (a) | ||||
| 9 | 337557@1417 | 1.20 | 1.45 | |
| ROL PIN D2X10 (10 STUKS) | ||||
| 10 | 949860@1417 | 1.05 | 1.27 | |
| Bout M8 | ||||
| 11 | 333228@1417 | 4.35 | 5.26 | |
| Onderdeel Hangreep (b) | ||||
| 12 | 333202@1417 | 1.05 | 1.27 | |
| Handle Holder | ||||
| 13 | 370393@1417 | 14.44 | 17.47 | |
| Grip | ||||
| 14 | 333201@1417 | 1.95 | 2.36 | |
| Zijhandgreep | ||||
| 15 | 333199@1417 | 7.80 | 9.44 | |
| O-RING (S-26) | ||||
| 16 | 872470@1417 | 1.65 | 2.00 | |
| Cylinder Case Cover | ||||
| 17 | 338198@1417 | 14.25 | 17.24 | |
| Imbusbout Hd M5x12 | ||||
| 18 | 998471@1417 | 1.05 | 1.27 | |
| Borgring D40 | ||||
| 19 | 318582@1417 | 5.10 | 6.17 | |
| Retaining Ring D68 | ||||
| 20 | 338200@1417 | 4.95 | 5.99 | |
| Kogellager 6008dducm | ||||
| 21 | 339063@1417 | 14.93 | 18.06 | |
| Lagerring | ||||
| 22 | 338201@1417 | 1.35 | 1.63 | |
| Olie Keerring | ||||
| 23 | 318588@1417 | 6.45 | 7.80 | |
| Cylinder Case | ||||
| 24 | 338199@1417 | 21.45 | 25.95 | |
| Inbusbout M8x35 | ||||
| 25 | 990083@1417 | 1.05 | 1.27 | |
| O-ring (c) | ||||
| 26 | 338222@1417 | 1.05 | 1.27 | |
| Retainer Damper Holder | ||||
| 27 | 338204@1417 | 5.55 | 6.72 | |
| Retainer Damper | ||||
| 28 | 338203@1417 | 4.20 | 5.08 | |
| Damper Sleeve | ||||
| 29 | 339064@1417 | 1.05 | 1.27 | |
| Retainer Damper Washer | ||||
| 30 | 338202@1417 | 5.40 | 6.53 | |
| Bit Lock | ||||
| 31 | 370654@1417 | 4.95 | 5.99 | |
| Opnameschacht | ||||
| 32 | 338205@1417 | 45.10 | 54.57 | |
| Needle Pin D8 | ||||
| 33 | 338210@1417 | 1.95 | 2.36 | |
| O-ring | ||||
| 34 | 986104@1417 | 1.05 | 1.27 | |
| Second Hammer | ||||
| 35 | 370657@1417 | 19.66 | 23.79 | |
| Damper Washer | ||||
| 36 | 370659@1417 | 7.95 | 9.62 | |
| Demperring | ||||
| 37 | 328887@1417 | 3.30 | 3.99 | |
| Damper Holder | ||||
| 38 | 370658@1417 | 2.85 | 3.45 | |
| Cylinder | ||||
| 39 | 338209@1417 | 44.69 | 54.07 | |
| Striker | ||||
| 40 | 370391@1417 | 17.05 | 20.63 | |
| O-ring | ||||
| 41 | 328880@1417 | 4.80 | 5.81 | |
| Spring Holder (b) | ||||
| 42 | 338211@1417 | 15.54 | 18.80 | |
| Lock Spring Washer | ||||
| 43 | 338216@1417 | 1.20 | 1.45 | |
| Lock Spring | ||||
| 44 | 338217@1417 | 1.50 | 1.82 | |
| Lock Sleeve | ||||
| 45 | 338215@1417 | 1.20 | 1.45 | |
| Clutch Spring | ||||
| 46 | 338212@1417 | 1.50 | 1.82 | |
| Clutch | ||||
| 47 | 370392@1417 | 41.66 | 50.41 | |
| Sleeve | ||||
| 48 | 338218@1417 | 1.04 | 1.26 | |
| Slider | ||||
| 49 | 338235@1417 | 3.45 | 4.17 | |
| Metal (a) | ||||
| 50 | 370384@1417 | 16.36 | 19.80 | |
| O-ring | ||||
| 51 | 328880@1417 | 4.80 | 5.81 | |
| Zuigerpin | ||||
| 52 | 338228@1417 | 4.35 | 5.26 | |
| Zuiger | ||||
| 53 | 328877@1417 | 7.05 | 8.53 | |
| Drijfstang | ||||
| 54 | 328878@1417 | 7.05 | 8.53 | |
| Lagersluitring | ||||
| 55 | 944954@1417 | 1.05 | 1.27 | |
| Kogellager 6201vvcmps2s | ||||
| 56 | 6201VV@1417 | 6.45 | 7.80 | |
| Tapschroef D5x60 | ||||
| 57 | 961501@1417 | 1.04 | 1.26 | |
| Stator Sensor Pcb Set 100-120 Volt | ||||
| 58 | 340947@1417 | 44.28 | 53.57 | |
| Stator Sensor Pcb Set 220-240 Volt | ||||
| 58 | 340899@1417 | 41.39 | 50.08 | |
| Behuizing | ||||
| 59 | 338168@1417 | 22.96 | 27.78 | |
| Packing (b) | ||||
| 60 | 339065@1417 | 1.04 | 1.26 | |
| Inbusschroef | ||||
| 61 | 998485@1417 | 1.05 | 1.27 | |
| Stofafdichting | ||||
| 62 | 333225@1417 | 1.05 | 1.27 | |
| Achterhuis | ||||
| 63 | 338170@1417 | 2.40 | 2.90 | |
| Kogellager 6202dducmps2s (oud 956937) | ||||
| 64 | 6202DD@1417 | 6.75 | 8.17 | |
| Sluitring | ||||
| 65 | 980700@1417 | 1.04 | 1.26 | |
| Rotor | ||||
| 66 | 360992@1417 | 149.19 | 180.52 | |
| Controller Ass'y 100-120 Volt | ||||
| 67 | 370386@1417 | 111.24 | 134.60 | |
| Controller Ass'y 220-240 Volt | ||||
| 67 | 370387@1417 | 111.24 | 134.60 | |
| Case Packing | ||||
| 68 | 370655@1417 | 1.04 | 1.26 | |
| Rubber Sheet (c) | ||||
| 69 | 339056@1417 | 2.25 | 2.72 | |
| Rubber Sheet (a) | ||||
| 70 | 339055@1417 | 1.04 | 1.26 | |
| Rubber Sheet (d) | ||||
| 71 | 339057@1417 | 1.65 | 2.00 | |
| Panel Ass'y | ||||
| 72 | 370656@1417 | 15.40 | 18.63 | |
| Seal Lock Hd. Inbusbout M5x12 | ||||
| 73 | 991690@1417 | 1.05 | 1.27 | |
| Afstandsbus | ||||
| 74 | 991711@1417 | 1.05 | 1.27 | |
| Handle Ass'y (a+b) | ||||
| 75 | 370394@1417 | 13.95 | 16.88 | |
| Pin D3x20 (10 Stuks) | ||||
| 76 | 949890@1417 | 1.80 | 2.18 | |
| Filter Packing | ||||
| 77 | 339058@1417 | 1.20 | 1.45 | |
| Filter Pcb Set 100-127 Volt | ||||
| 78 | 338180@1417 | 12.45 | 15.06 | |
| Filter Pcb Set 220-240 Volt | ||||
| 78 | 338181@1417 | 12.45 | 15.06 | |
| Houder | ||||
| 79 | 310123@1417 | 11.85 | 14.34 | |
| Dempingrubber | ||||
| 80 | 310124@1417 | 4.20 | 5.08 | |
| Onderdeel Hangreep | ||||
| 81 | 338162@1417 | 1.04 | 1.26 | |
| Bellows | ||||
| 82 | 338176@1417 | 4.80 | 5.81 | |
| Trigger | ||||
| 83 | 370254@1417 | 2.10 | 2.54 | |
| Schakelaar | ||||
| 84 | 337587@1417 | 13.95 | 16.88 | |
| Tapschroef D4x25 Zwart | ||||
| 85 | 307028@1417 | 1.05 | 1.27 | |
| Terminal | ||||
| 86 | 958308Z@1417 | 5.55 | 6.72 | |
| Snoertule D10.7 | ||||
| 87 | 940778@1417 | 2.10 | 2.54 | |
| Snoertule D11.2 | ||||
| 87 | 331335@1417 | 1.20 | 1.45 | |
| Snoerklem | ||||
| 88 | 960266@1417 | 1.04 | 1.26 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 89 | 984750@1417 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 90 | 500503Z@1417 | |||
| Handle Shaft | ||||
| 91 | 338175@1417 | 1.04 | 1.26 | |
| Back Cover | ||||
| 92 | 338197@1417 | 7.35 | 8.89 | |
| Schroef M5x16 | ||||
| 93 | 994192@1417 | 1.04 | 1.26 | |
| Crank Cover | ||||
| 95 | 370390@1417 | 6.90 | 8.35 | |
| Bout M5x18 | ||||
| 96 | 338177@1417 | 1.04 | 1.26 | |
| Change Lever | ||||
| 97 | 370383@1417 | 2.55 | 3.09 | |
| Lever Spring | ||||
| 98 | 337567@1417 | 1.04 | 1.26 | |
| STALEN KOGEL D4.76 (10 STUKS) | ||||
| 99 | 959149@1417 | 1.04 | 1.26 | |
| O-ring (s-18) | ||||
| 100 | 878885@1417 | 1.05 | 1.27 | |
| Change Lever | ||||
| 101 | 370382@1417 | 13.65 | 16.52 | |
| RING D20 (10 STUKS) | ||||
| 102 | 939547@1417 | 3.90 | 4.72 | |
| O-ring (a) | ||||
| 103 | 338160@1417 | 1.05 | 1.27 | |
| Change Plate | ||||
| 104 | 338234@1417 | 1.05 | 1.27 | |
| Veerring D12 (10 Stuks) | ||||
| 105 | 939542@1417 | 1.50 | 1.82 | |
| Krukas | ||||
| 106 | 338224@1417 | 26.68 | 32.28 | |
| Inlegspie 3x3x25 | ||||
| 107 | 328869@1417 | 1.65 | 2.00 | |
| Ring D40 | ||||
| 108 | 948227@1417 | 1.35 | 1.63 | |
| Kogellager 6204dducmps2s | ||||
| 109 | 6204DD@1417 | 9.00 | 10.89 | |
| O-ring (f) | ||||
| 110 | 338227@1417 | 1.05 | 1.27 | |
| Cylinder O-ring (b) | ||||
| 111 | 878713@1417 | 2.10 | 2.54 | |
| Ring | ||||
| 112 | 338191@1417 | 1.04 | 1.26 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 113 | 370653@1417 | |||
| Weight Pin | ||||
| 114 | 338192@1417 | 3.90 | 4.72 | |
| Seal Lock Hd. Inbusbout M5 | ||||
| 115 | 306061@1417 | 1.05 | 1.27 | |
| Leaf Spring | ||||
| 116 | 370389@1417 | 7.20 | 8.71 | |
| Drukveerhouder | ||||
| 117 | 328906@1417 | 6.45 | 7.80 | |
| Basisplaat | ||||
| 118 | 338190@1417 | 10.35 | 12.52 | |
| Weight Bumper | ||||
| 119 | 338194@1417 | 1.04 | 1.26 | |
| Seal Lock Hd. Inbusbout M5x16 (oud 984509) | ||||
| 120 | 990079@1417 | 1.05 | 1.27 | |
| Crank Case | ||||
| 121 | 370380@1417 | 48.26 | 58.40 | |
| Seal Lock Hd. Inbusbout 6x45 | ||||
| 122 | 986940@1417 | 1.05 | 1.27 | |
| Olie Keerring | ||||
| 123 | 328867@1417 | 4.80 | 5.81 | |
| First Gear | ||||
| 124 | 338225@1417 | 31.08 | 37.60 | |
| Kogellager 629vvmc2eps2l | ||||
| 125 | 629VVM@1417 | 5.85 | 7.08 | |
| Seal Lock Hd. Inbusbout M6x22 | ||||
| 126 | 321313@1417 | 1.65 | 2.00 | |
| Seal Packing | ||||
| 127 | 370388@1417 | 1.20 | 1.45 | |
| Gear Cover | ||||
| 128 | 370381@1417 | 26.26 | 31.78 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 501 | 313471@1417 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 502 | 370395@1417 | |||
| Klem | ||||
| 503 | 372113@1417 | 1.80 | 2.18 | |
| Vet (tube 30 Gram) | ||||
| 601 | 981840@1417 | 8.40 | 10.16 | |
| Vet Tube 70 Gram | ||||
| 602 | 308471@1417 | 12.75 | 15.43 | |
| Vet (pot 500 Gram) | ||||
| 603 | 980927@1417 | 73.01 | 88.35 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 604 | 313472@1417 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 605 | 313473@1417 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 606 | 313474@1417 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 607 | 313475@1417 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 608 | 313476@1417 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 609 | 313477@1417 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 610 | 313478@1417 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 611 | 313479@1417 | |||
