Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Festool 491305 ( CS70ECH230V )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

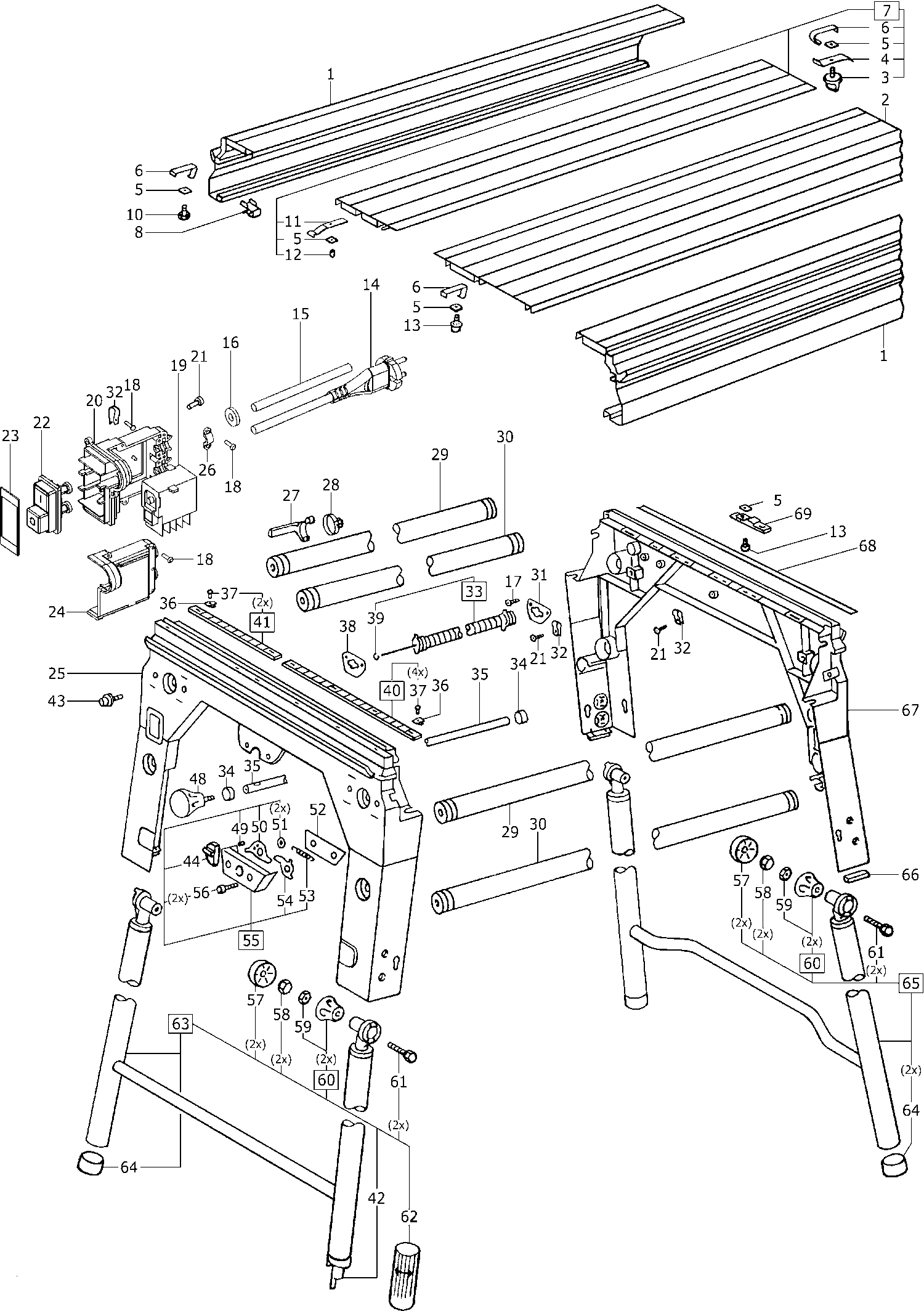

Tekeningen van de Festool 491305 ( CS70ECH230V )
Onderdelen lijst van de Festool 491305 ( CS70ECH230V )
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| Hoekprofiel | ||||
| 1 | 445867 | 69.33 | 83.89 | |
| Vlakprofiel | ||||
| 2 | 445866 | 100.31 | 121.37 | |
| Draaiknop | ||||
| 3 | 482110 | 2.16 | 2.61 | |
| Klembek | ||||
| 4 | 448234 | 4.10 | 4.97 | |
| Vierkantmoer M6 | ||||
| 5 | 228566 | 1.37 | 1.66 | |
| Veer | ||||
| 6 | 447262 | 1.37 | 1.66 | |
| Tafelinlegstuk | ||||
| 7 | 488160 | 75.26 | 91.07 | |
| Klem | ||||
| 8 | 449080 | 2.38 | 2.87 | |
| Schijf 6,4 Mm | ||||
| 9 | 228546 | 1.37 | 1.66 | |
| Schroef M6 X 12 | ||||
| 10 | 450682 | 1.87 | 2.27 | |
| Bladveer | ||||
| 11 | 448233 | 2.09 | 2.53 | |
| Draadpen M6 X 10 | ||||
| 12 | 772405 | 1.37 | 1.66 | |
| Schroef M6 X 12 | ||||
| 13 | 449888 | 1.37 | 1.66 | |
| Kabel Eu | ||||
| 14 | 458753 | 23.47 | 28.40 | |
| Sleepkabel | ||||
| 15 | 458756 | 23.47 | 28.40 | |
| Rubberring | ||||
| 16 | 458613 | 1.37 | 1.66 | |
| Schroef Met Lenskop M4 X 16 | ||||
| 17 | 219075 | 1.37 | 1.66 | |
| Schroef Met Lenskop 3,5 X 14 Mm | ||||
| 18 | 228584 | 1.37 | 1.66 | |
| Schot | ||||
| 19 | 455695 | 37.03 | 44.80 | |
| Schakelaarkast | ||||
| 20 | 447703 | 7.70 | 9.32 | |
| Schroef Met Lenskop M4 X 12 | ||||
| 21 | 228509 | 1.37 | 1.66 | |
| Drukker | ||||
| 22 | 490211 | 10.51 | 12.72 | |
| Dichting | ||||
| 23 | 447768 | 1.37 | 1.66 | |
| Schakelaardeksel | ||||
| 24 | 447704 | 4.32 | 5.23 | |
| Portal | ||||
| 25 | 462419 | 154.40 | 186.82 | |
| Klembrug | ||||
| 26 | 439288 | 1.37 | 1.66 | |
| Kabelhouder | ||||
| 27 | 449273 | 2.52 | 3.05 | |
| Klem | ||||
| 28 | 400428 | 3.82 | 4.62 | |
| Buis | ||||
| 29 | 459286 | 57.11 | 69.11 | |
| Draagbuis | ||||
| 30 | 459287 | 54.93 | 66.47 | |
| Lagerplaat | ||||
| 31 | 448236 | 1.94 | 2.35 | |
| Klem | ||||
| 32 | 458614 | 1.37 | 1.66 | |
| Demper | ||||
| 33 | 488139 | 40.78 | 49.34 | |
| Buffer | ||||
| 34 | 447528 | 1.66 | 2.00 | |
| Trekstang | ||||
| 35 | 487568 | 52.03 | 62.96 | |
| Plaatmoer | ||||
| 36 | 448477 | 1.37 | 1.66 | |
| Schroef Met Lenskop 2,5 X 8 Mm | ||||
| 37 | 400444 | 1.37 | 1.66 | |
| Lagerplaat | ||||
| 38 | 448236 | 1.94 | 2.35 | |
| Schijf | ||||
| 39 | 222490 | 1.37 | 1.66 | |
| Schaal | ||||
| 40 | 488138 | 19.40 | 23.48 | |
| Schaal | ||||
| 41 | 488137 | 15.58 | 18.85 | |
| Stelkurve | ||||
| 42 | 448178 | 2.52 | 3.05 | |
| Schroef M8 X 25 | ||||
| 43 | 450683 | 1.58 | 1.92 | |
| Handgreep | ||||
| 44 | 446974 | 1.87 | 2.27 | |
| Handgreep | ||||
| 48 | 487569 | 11.59 | 14.03 | |
| Veerdrukstuk | ||||
| 49 | 400286 | 4.32 | 5.23 | |
| Hendel | ||||
| 50 | 446669 | 3.89 | 4.70 | |
| Bus | ||||
| 51 | 449122 | 1.37 | 1.66 | |
| Trekveer | ||||
| 53 | 447263 | 1.37 | 1.66 | |
| Vergrendelhendel | ||||
| 54 | 702066 | 5.62 | 6.80 | |
| Geleiding | ||||
| 55 | 488140 | 31.94 | 38.65 | |
| Cilinderschroef M6 X 25 | ||||
| 56 | 200128 | 1.37 | 1.66 | |
| Bovendeel Van Handgreep | ||||
| 57 | 447534 | 1.73 | 2.09 | |
| Zeskantbout M8 | ||||
| 58 | 200735 | 1.37 | 1.66 | |
| Zeskantbout M8 | ||||
| 59 | 200719 | 1.37 | 1.66 | |
| Onderdeel Van Handgreep | ||||
| 60 | 488523 | 2.59 | 3.14 | |
| Zeskantbout M8 X 75 | ||||
| 61 | 400309 | 1.51 | 1.83 | |
| Stelvoet | ||||
| 62 | 465883 | 12.38 | 14.98 | |
| Opklappoot | ||||
| 63 | 499888 | 85.43 | 103.37 | |
| Rubbervoet | ||||
| 64 | 465163 | 3.31 | 4.01 | |
| Opklappoot | ||||
| 65 | 499889 | 77.32 | 93.56 | |
| Rubbervoet | ||||
| 66 | 701230 | 4.97 | 6.01 | |
| Portal | ||||
| 67 | 462420 | 154.40 | 186.82 | |
| Label | ||||
| 68 | 448251 | 6.77 | 8.19 | |
| Aanslag | ||||
| 69 | 448118 | 1.73 | 2.09 | |
| Stiftsleutel | ||||
| 81 | 450935 | 2.45 | 2.96 | |
| Afdekking | ||||
| 82 | 488152 | 50.58 | 61.20 | |
| Beschermkap | ||||
| 83 | 460737 | 28.80 | 34.85 | |
| Cilinderschroef M6 X 20 | ||||
| 84 | 228612 | 1.37 | 1.66 | |
| Kraagbus | ||||
| 85 | 449159 | 3.17 | 3.83 | |
| Splinterbescherming | ||||
| 86 | 448695 | 1.87 | 2.27 | |
| Electronika 230 V | ||||
| 93 | 488262 | 133.71 | 161.78 | |
| Schroef Met Lenskop 3,5 X 10 Mm | ||||
| 96 | 219031 | 1.37 | 1.66 | |
| Afzuigaansluiting | ||||
| 98 | 446588 | 2.66 | 3.22 | |
| Schroef Met Lenskop 3,5 X 25 Mm | ||||
| 100 | 219068 | 1.37 | 1.66 | |
| Spanring | ||||
| 102 | 488151 | 62.32 | 75.40 | |
| Kraagschroef M8 X 15 | ||||
| 103 | 446370 | 9.14 | 11.06 | |
| Schijfveer | ||||
| 106 | 444235 | 1.58 | 1.92 | |
| Geleideplaat | ||||
| 107 | 450055 | 4.18 | 5.05 | |
| Coulisse | ||||
| 108 | 488149 | 122.57 | 148.31 | |
| Spilstop | ||||
| 109 | 488150 | 21.25 | 25.71 | |
| Schroef Met Lenskop M4 X 10 | ||||
| 110 | 228582 | 1.37 | 1.66 | |
| Borgring | ||||
| 111 | 219855 | 1.37 | 1.66 | |
| Groefkogellager | ||||
| 112 | 789595 | 9.58 | 11.59 | |
| Spil CS 70EBG ET-BG | ||||
| 113 | 10666107 | 40.29 | 48.75 | |
| Groefkogellager | ||||
| 114 | 400467 | 20.20 | 24.44 | |
| Tandriemwiel | ||||
| 115 | 445880 | 32.67 | 39.53 | |
| Moer M10 | ||||
| 117 | 451484 | 1.58 | 1.92 | |
| Luchtkanaal | ||||
| 118 | 446473 | 8.71 | 10.54 | |
| Viltstrook | ||||
| 119 | 447962 | 1.44 | 1.74 | |
| Motorafdekking | ||||
| 120 | 446469 | 8.93 | 10.80 | |
| Tandriem | ||||
| 121 | 488135 | 50.22 | 60.76 | |
| Niet meer leverbaar | ||||
| 122 | 485802 | |||
| Meeneemschijf | ||||
| 123 | 446937 | 1.51 | 1.83 | |
| Tandriemwiel | ||||
| 124 | 445878 | 31.94 | 38.65 | |
| Afdekking | ||||
| 125 | 447710 | 6.55 | 7.93 | |
| Tandwiel | ||||
| 126 | 491936 | 27.10 | 32.80 | |
| Borgring | ||||
| 127 | 771483 | 1.37 | 1.66 | |
| Schijf | ||||
| 128 | 449203 | 2.38 | 2.87 | |
| Groefkogellager | ||||
| 129 | 789775 | 9.36 | 11.33 | |
| As | ||||
| 131 | 202846 | 36.42 | 44.07 | |
| Naaldbus | ||||
| 132 | 400254 | 8.28 | 10.02 | |
| Schijf | ||||
| 133 | 446474 | 6.98 | 8.45 | |
| Ontlastingsschijf | ||||
| 134 | 488465 | 11.95 | 14.46 | |
| Borgring | ||||
| 135 | 200414 | 1.37 | 1.66 | |
| Steunplaat | ||||
| 137 | 446704 | 7.49 | 9.06 | |
| Cilinderschroef M5 X 18 | ||||
| 138 | 202824 | 1.37 | 1.66 | |
| Zeskantbout M5 | ||||
| 139 | 200717 | 1.37 | 1.66 | |
| Metalen Plaat | ||||
| 140 | 446147 | 6.48 | 7.84 | |
| Zwenksegment | ||||
| 141 | 488148 | 107.45 | 130.01 | |
| Schroef Met Lenskop M4 X 16 | ||||
| 142 | 219075 | 1.37 | 1.66 | |
| Tandsegment | ||||
| 143 | 202847 | 7.99 | 9.67 | |
| Du-kraagbus | ||||
| 144 | 400253 | 1.94 | 2.35 | |
| Cilinderpen | ||||
| 145 | 400097 | 1.44 | 1.74 | |
| Bush 8x10x8 GGB 0808 DP4 | ||||
| 146 | 236477 | 1.37 | 1.66 | |
| Coulisse | ||||
| 147 | 446146 | 1.51 | 1.83 | |
| Snelheidsmeter | ||||
| 148 | 487467 | 8.06 | 9.76 | |
| Afdichtring | ||||
| 149 | 447750 | 4.61 | 5.58 | |
| Koolborstel (pair) 230v | ||||
| 150 | 488134 | 35.70 | 43.19 | |
| Borstelhouder (pair) 230v | ||||
| 151 | 488136 | 41.99 | 50.80 | |
| Motorbehuizing | ||||
| 152 | 446309 | 17.16 | 20.76 | |
| Veldmagneet 230 V | ||||
| 153 | 493503 | 84.94 | 102.78 | |
| Asring | ||||
| 154 | 438613 | 1.37 | 1.66 | |
| Groefkogellager | ||||
| 155 | 228559 | 4.39 | 5.31 | |
| Anker 230 V | ||||
| 156 | 493504 | 195.05 | 236.01 | |
| Groefkogellager | ||||
| 157 | 219021 | 11.74 | 14.20 | |
| Luchtgeleidingsschijf | ||||
| 158 | 469886 | 2.45 | 2.96 | |
| Schroef Met Lenskop 5,0 X 80 Mm | ||||
| 159 | 400264 | 1.37 | 1.66 | |
| Ventilator | ||||
| 160 | 486880 | 6.34 | 7.67 | |
| O-ring | ||||
| 161 | 400488 | 1.37 | 1.66 | |
| Schroef Met Lenskop M5 X 40 | ||||
| 162 | 400255 | 1.37 | 1.66 | |
| Zeskantbout M8 | ||||
| 163 | 200719 | 1.37 | 1.66 | |
| Spanhuls | ||||
| 164 | 400259 | 1.37 | 1.66 | |
| Tandriemwiel | ||||
| 165 | 445877 | 15.71 | 19.01 | |
| Motorflens | ||||
| 166 | 451454 | 38.60 | 46.70 | |
| Motor 230 V | ||||
| 167 | 488153 | 408.01 | 493.69 | |
| Lipring | ||||
| 168 | 447968 | 2.09 | 2.53 | |
| Behuizing | ||||
| 169 | 488154 | 19.27 | 23.32 | |
| Beschermkap | ||||
| 175 | 459077 | 3.82 | 4.62 | |
| Draadstrengenassortiment | ||||
| 176 | 488440 | 22.51 | 27.23 | |
| Splinterbescherming | ||||
| 178 | 448694 | 2.81 | 3.40 | |
| Cable clamp RTK-S | ||||
| 181 | 431899 | 1.37 | 1.66 | |
| Spouwmesplaat | ||||
| 182 | 445927 | 6.84 | 8.28 | |
| Cilinderschroef M8 X 16 | ||||
| 183 | 774346 | 1.37 | 1.66 | |
| Niet meer leverbaar | ||||
| 184 | 445873 | |||
| Spouwmeshouder | ||||
| 185 | 488158 | 76.35 | 92.38 | |
| Cilinderschroef M6 X 14 | ||||
| 186 | 209354 | 1.37 | 1.66 | |
| Spouwmesopname | ||||
| 187 | 445926 | 14.92 | 18.05 | |
| Kraagbus | ||||
| 188 | 447555 | 1.58 | 1.92 | |
| Bout | ||||
| 190 | 447358 | 2.59 | 3.14 | |
| Koppel | ||||
| 191 | 446528 | 1.87 | 2.27 | |
| Schijf | ||||
| 192 | 447702 | 2.23 | 2.70 | |
| Borgring | ||||
| 193 | 200615 | 1.37 | 1.66 | |
| Veerdrukstuk | ||||
| 194 | 400287 | 5.11 | 6.19 | |
| Aanslagprofiel CS 70 ET-BG | ||||
| 202 | 10711280 | 26.74 | 32.36 | |
| Profiel Cs 70 | ||||
| 203 | 465708 | 29.65 | 35.87 | |
| Niet meer leverbaar | ||||
| 204 | 448071 | |||
| Zwenksegment | ||||
| 205 | 448014 | 30.13 | 36.46 | |
| Schaal | ||||
| 206 | 488156 | 22.44 | 27.15 | |
| Schroef Met Lenskop M4 X 6 | ||||
| 207 | 400348 | 1.37 | 1.66 | |
| Platkopschroef | ||||
| 208 | 448065 | 4.10 | 4.97 | |
| Schijf | ||||
| 209 | 448471 | 3.31 | 4.01 | |
| Draaiknop | ||||
| 210 | 487755 | 8.71 | 10.54 | |
| Draaiknop | ||||
| 211 | 440713 | 2.74 | 3.31 | |
| Verzonken Bout M4 X 8 | ||||
| 212 | 219043 | 1.37 | 1.66 | |
| Draadeind | ||||
| 213 | 464525 | 1.37 | 1.66 | |
| Cilinderschroef M6 X 12 | ||||
| 214 | 200684 | 1.37 | 1.66 | |
| Opname | ||||
| 215 | 489181 | 25.41 | 30.75 | |
| Bus 5 X 12 Mm | ||||
| 218 | 228692 | 1.37 | 1.66 | |
| Platkopschroef M6 X 40 | ||||
| 219 | 228534 | 1.37 | 1.66 | |
| Afstandsbus | ||||
| 220 | 448066 | 8.78 | 10.63 | |
| Klemstuk | ||||
| 221 | 488433 | 38.60 | 46.70 | |
| Niet meer leverbaar | ||||
| 222 | 448017 | |||
| Handgreep | ||||
| 223 | 487893 | 7.92 | 9.58 | |
| Bus 6 X 36 Mm | ||||
| 224 | 400289 | 1.37 | 1.66 | |
| Drukveer | ||||
| 225 | 448064 | 1.80 | 2.18 | |
| Draaiknop M6 | ||||
| 226 | 483350 | 6.84 | 8.28 | |
| Rol | ||||
| 230 | 488868 | 38.72 | 46.85 | |
| Rol | ||||
| 231 | 488867 | 36.91 | 44.66 | |
| Cilinderrol | ||||
| 232 | 488870 | 28.07 | 33.97 | |
| Wagenfront | ||||
| 233 | 497195 | 70.18 | 84.92 | |
| Cilinderschroef M6 X 40 | ||||
| 234 | 228653 | 1.37 | 1.66 | |
| Schroef Met Lenskop M4 X 25 | ||||
| 235 | 400257 | 1.37 | 1.66 | |
| Zeskantbout M8 X 60 | ||||
| 236 | 400382 | 1.37 | 1.66 | |
| Handgreep | ||||
| 238 | 487555 | 7.34 | 8.89 | |
| Schaal | ||||
| 239 | 446467 | 13.60 | 16.45 | |
| Draaigreep | ||||
| 240 | 446063 | 8.64 | 10.45 | |
| Trekveer | ||||
| 242 | 447263 | 1.37 | 1.66 | |
| Eindaanslag | ||||
| 243 | 449868 | 6.70 | 8.10 | |
| Handgreep | ||||
| 244 | 449869 | 1.80 | 2.18 | |
| Cilinderschroef M5 X 18 | ||||
| 245 | 202824 | 1.37 | 1.66 | |
| Excentermoer | ||||
| 246 | 449928 | 7.34 | 8.89 | |
| Aandrijfkruk | ||||
| 247 | 488159 | 16.63 | 20.12 | |
| Zeskantbout M6 | ||||
| 248 | 228541 | 1.37 | 1.66 | |
| Veerring | ||||
| 249 | 200588 | 1.37 | 1.66 | |
| Schijf 8,4 Mm | ||||
| 250 | 219049 | 1.37 | 1.66 | |
| Spil | ||||
| 251 | 488271 | 33.15 | 40.12 | |
| Lager | ||||
| 252 | 446470 | 4.75 | 5.75 | |
| Schijf | ||||
| 253 | 446472 | 3.10 | 3.75 | |
| Viltinleg | ||||
| 255 | 451917 | 1.37 | 1.66 | |
| Viltinleg | ||||
| 256 | 451918 | 1.37 | 1.66 | |
| Afstroopplaat | ||||
| 257 | 496821 | 19.01 | 23.00 | |
| Veerring | ||||
| 258 | 447961 | 1.73 | 2.09 | |
| Afstroopplaat | ||||
| 259 | 496820 | 13.46 | 16.29 | |
| Borgring | ||||
| 260 | 200618 | 1.37 | 1.66 | |
| Rol | ||||
| 261 | 488869 | 43.44 | 52.56 | |
| Tandwiel | ||||
| 262 | 446072 | 3.82 | 4.62 | |
| Schijf | ||||
| 263 | 447702 | 2.23 | 2.70 | |
| Schroef Met Lenskop 4,0 X 20 Mm | ||||
| 264 | 228567 | 1.37 | 1.66 | |
| Trekveer | ||||
| 265 | 447263 | 1.37 | 1.66 | |
| Steunlager | ||||
| 266 | 465449 | 8.21 | 9.93 | |
| Cilinderpen | ||||
| 267 | 400260 | 1.37 | 1.66 | |
| Hendel | ||||
| 268 | 446671 | 1.80 | 2.18 | |
| Schijf 4,3 Mm | ||||
| 269 | 228542 | 1.37 | 1.66 | |
| Flens | ||||
| 270 | 488147 | 25.41 | 30.75 | |
| Drager | ||||
| 271 | 497196 | 46.59 | 56.37 | |
| Zeskantbout M8 | ||||
| 272 | 200719 | 1.37 | 1.66 | |
| Schijf 8,4 Mm | ||||
| 273 | 228601 | 1.37 | 1.66 | |
| Duwlat | ||||
| 274 | 450199 | 6.77 | 8.19 | |
| Beveiligingsinrichting | ||||
| 276 | 492132 | 23.47 | 28.40 | |
