Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Fein 73601761000 ( RSG1500B )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

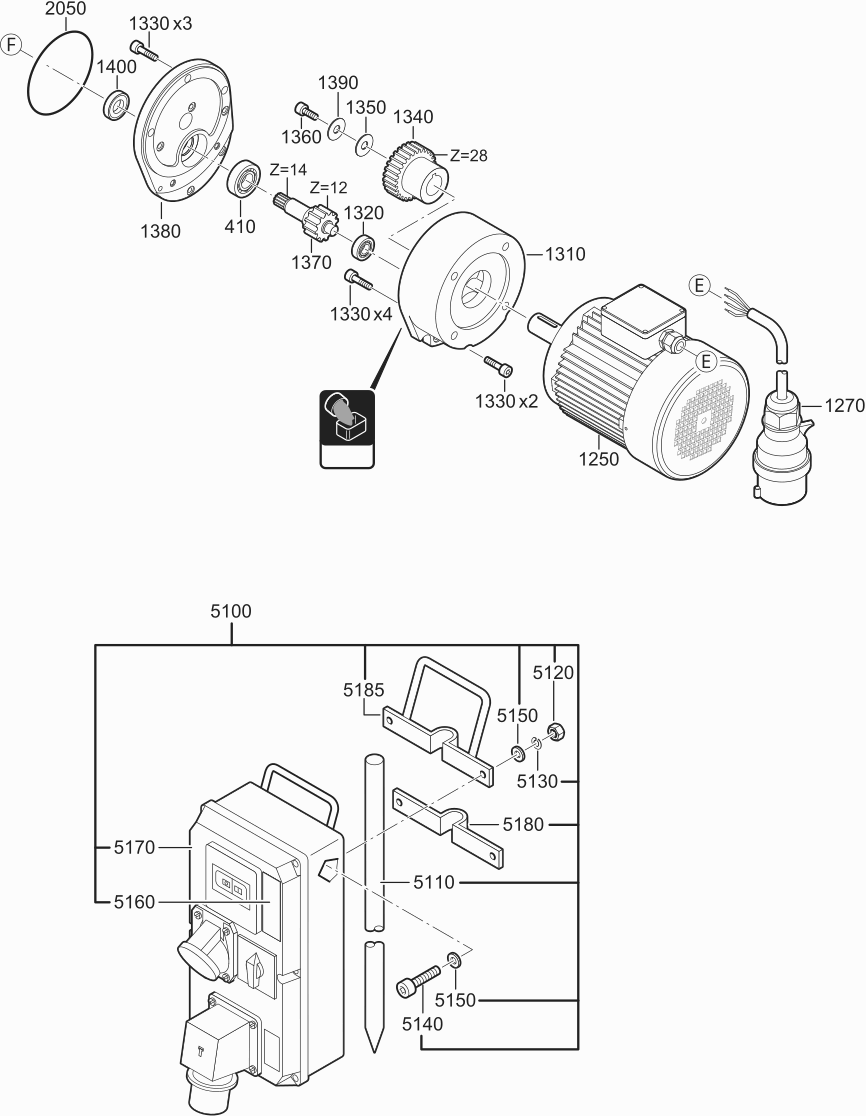

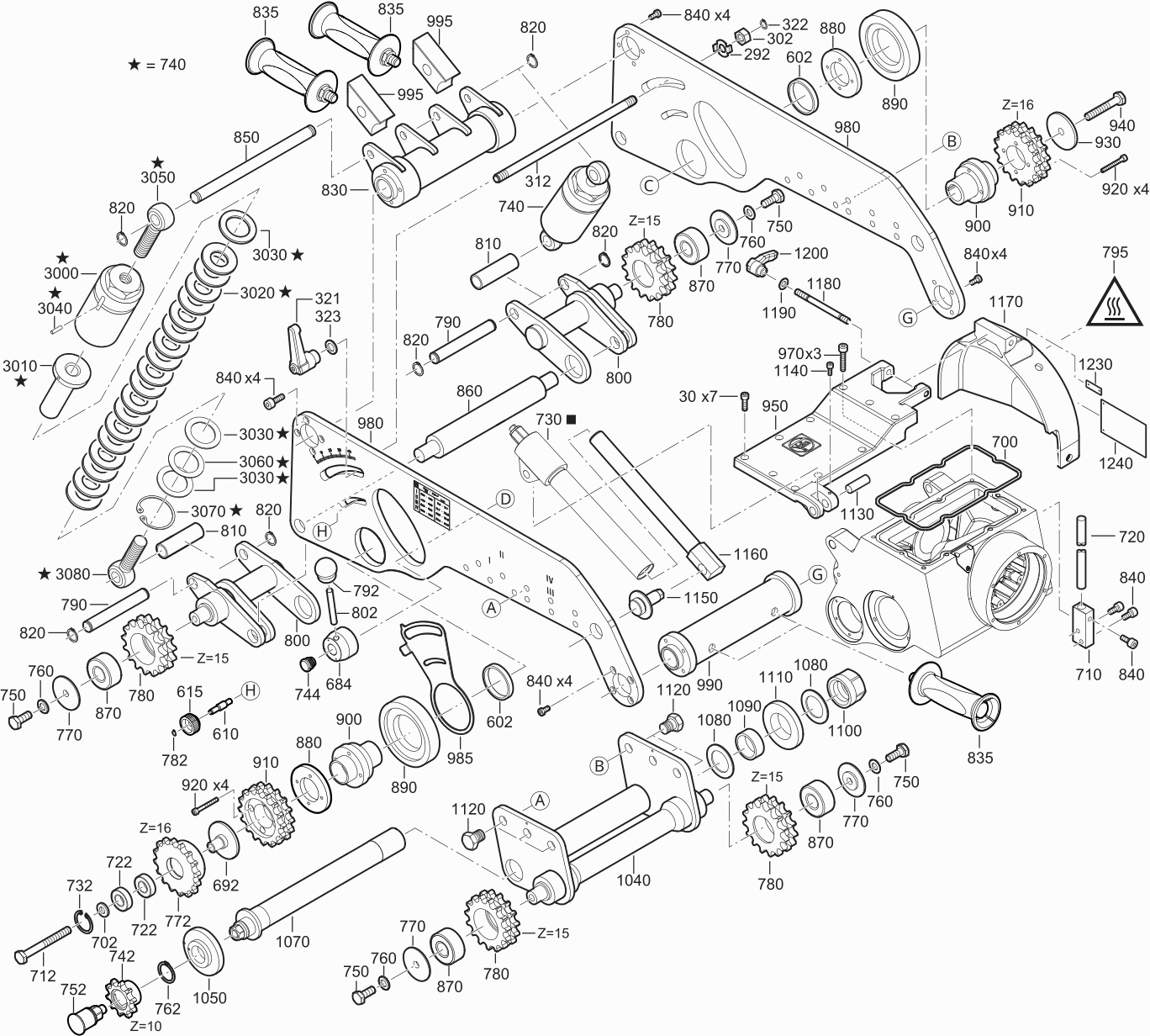

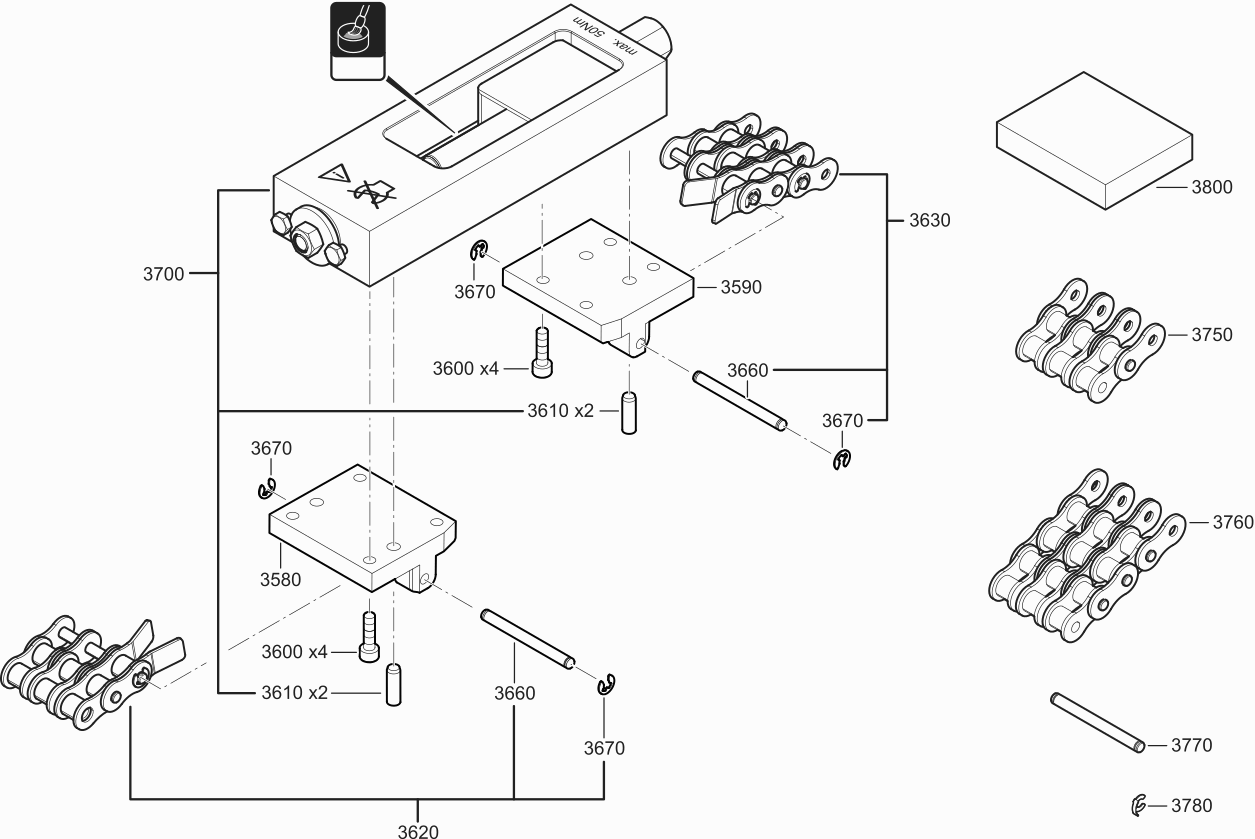

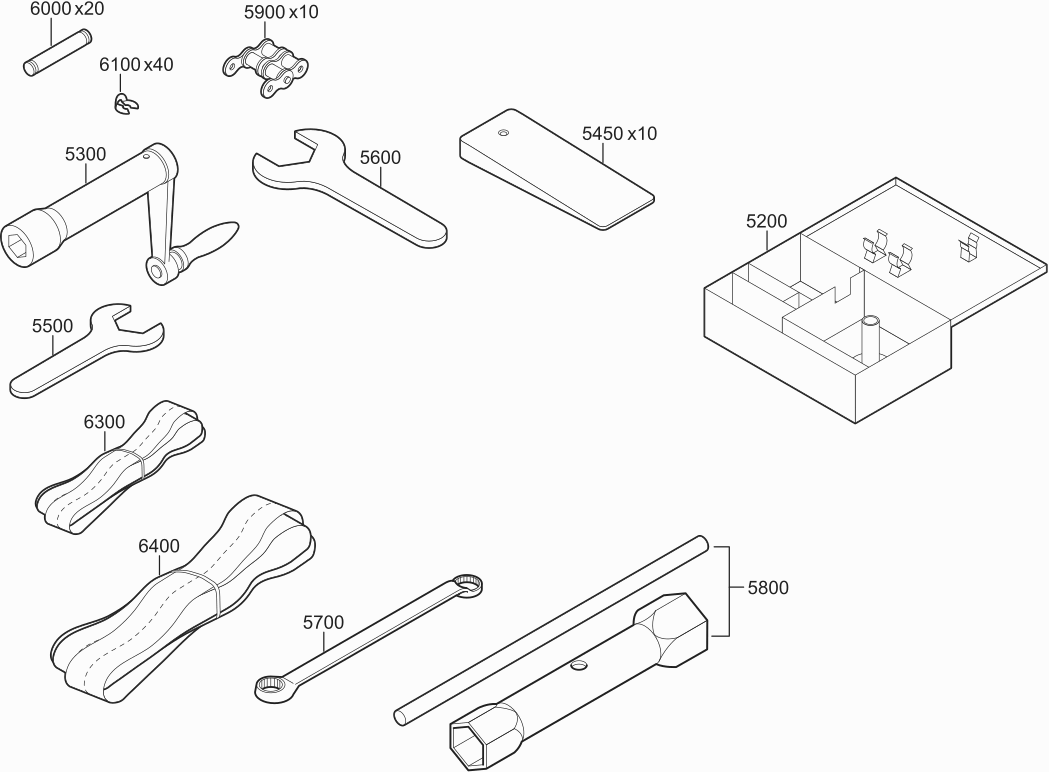

Tekeningen van de Fein 73601761000 ( RSG1500B )
Onderdelen lijst van de Fein 73601761000 ( RSG1500B )
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| HUIS | ||||
| 10 | 31207332000 | 2202.20 | 2664.66 | |
| AANDRIJVING | ||||
| 15 | 31207332030 | 7350.20 | 8893.74 | |
| SCHROEF | ||||
| 20 | 43043001009 | 4.92 | 5.95 | |
| SCHROEF | ||||
| 30 | 43035032065 | 0.83 | 1.00 | |
| DEKSEL | ||||
| 40 | 32419057000 | 97.90 | 118.46 | |
| AFDICHTING | ||||
| 50 | 40612015004 | 2.46 | 2.98 | |
| PLAAT | ||||
| 60 | 32624012022 | 3.42 | 4.14 | |
| PLAAT | ||||
| 60 | 32624012038 | 4.02 | 4.86 | |
| HOEKCONTACTLAGER | ||||
| 70 | 41723002010 | 61.60 | 74.54 | |
| Groefkogellager | ||||
| 80 | 41701016011 | 10.68 | 12.92 | |
| PLAAT | ||||
| 90 | 32408211003 | 2.34 | 2.83 | |
| Borgring | ||||
| 100 | 42616022006 | 1.44 | 1.74 | |
| TANDWIEL | ||||
| 110 | 33804011006 | 163.90 | 198.32 | |
| Schroef | ||||
| 120 | 43035009044 | 0.83 | 1.00 | |
| AFDICHTING | ||||
| 130 | 40608000008 | 6.72 | 8.13 | |
| AFDICHTING | ||||
| 140 | 40612018009 | 2.64 | 3.19 | |
| RING | ||||
| 150 | 32601165003 | 44.55 | 53.91 | |
| RING | ||||
| 160 | 32601167000 | 49.50 | 59.90 | |
| PLAAT | ||||
| 170 | 32624070024 | 2.94 | 3.56 | |
| PLAAT | ||||
| 180 | 32624080023 | 5.10 | 6.17 | |
| RING | ||||
| 190 | 32601168008 | 41.25 | 49.91 | |
| RING | ||||
| 200 | 32601166006 | 47.85 | 57.90 | |
| AFDICHTING | ||||
| 220 | 40612021004 | 2.64 | 3.19 | |
| PLAAT | ||||
| 240 | 32408452000 | 37.40 | 45.25 | |
| Schroef Cilinder | ||||
| 250 | 43035031062 | 0.83 | 1.00 | |
| ROLLAGER | ||||
| 260 | 41713006007 | 63.80 | 77.20 | |
| TANDWIEL | ||||
| 270 | 33805007000 | 523.60 | 633.56 | |
| PLAAT | ||||
| 290 | 32624071023 | 1.86 | 2.25 | |
| PLAAT | ||||
| 290 | 32624071039 | 4.32 | 5.23 | |
| BORGSCHIJF | ||||
| 292 | 30229430000 | 11.16 | 13.50 | |
| ROLLAGER | ||||
| 300 | 41713008009 | 63.80 | 77.20 | |
| MOER ZESKANT | ||||
| 302 | 42001034120 | 0.96 | 1.16 | |
| Schroef Cilinder | ||||
| 310 | 43035086069 | 0.83 | 1.00 | |
| DRAADSTIFT | ||||
| 312 | 33024078000 | 35.75 | 43.26 | |
| DEKSEL | ||||
| 320 | 32419060004 | 155.10 | 187.67 | |
| HENDEL | ||||
| 321 | 32170026000 | 21.18 | 25.63 | |
| PLAAT | ||||
| 322 | 32408453000 | 6.72 | 8.13 | |
| Borgring | ||||
| 322 | 42616013001 | 0.83 | 1.00 | |
| HOEKCONTACTLAGER | ||||
| 330 | 41723001017 | 48.40 | 58.56 | |
| PLAAT | ||||
| 340 | 32624084011 | 2.82 | 3.41 | |
| PLAAT | ||||
| 340 | 32624084027 | 2.04 | 2.47 | |
| PLAAT | ||||
| 340 | 32624084033 | 2.64 | 3.19 | |
| MOER | ||||
| 350 | 42008021008 | 12.65 | 15.31 | |
| RING | ||||
| 360 | 32601170004 | 26.68 | 32.28 | |
| SCHOTELVEER | ||||
| 370 | 30905022007 | 4.20 | 5.08 | |
| CILINDERSTIFT | ||||
| 380 | 40201041003 | 0.83 | 1.00 | |
| RING | ||||
| 390 | 32601171003 | 67.10 | 81.19 | |
| Wormwiel | ||||
| 400 | 33807013000 | 262.90 | 318.11 | |
| Groefkogellager | ||||
| 410 | 41701222016 | 10.20 | 12.34 | |
| PLAAT | ||||
| 420 | 32624019011 | 4.50 | 5.44 | |
| PLAAT | ||||
| 420 | 32624019027 | 4.50 | 5.44 | |
| AFDICHTING | ||||
| 430 | 40612022007 | 2.64 | 3.19 | |
| DEKSEL | ||||
| 440 | 32419056006 | 67.10 | 81.19 | |
| AS | ||||
| 450 | 33406099006 | 834.90 | 1010.23 | |
| SPIE | ||||
| 460 | 40221044000 | 2.64 | 3.19 | |
| HULS | ||||
| 470 | 30503064001 | 138.60 | 167.71 | |
| AFDICHTING | ||||
| 480 | 40612016007 | 2.82 | 3.41 | |
| PLAAT | ||||
| 490 | 32408191009 | 10.68 | 12.92 | |
| PLAAT | ||||
| 500 | 32624072026 | 1.26 | 1.52 | |
| PLAAT | ||||
| 500 | 32624072032 | 4.20 | 5.08 | |
| Afdichtingsring | ||||
| 510 | 40608026009 | 36.85 | 44.59 | |
| HOEKCONTACTLAGER | ||||
| 520 | 41723003014 | 41.80 | 50.58 | |
| Schroef Cilinder | ||||
| 530 | 43035005045 | 0.83 | 1.00 | |
| AFDICHTING | ||||
| 540 | 40612019003 | 1.56 | 1.89 | |
| DEKSEL | ||||
| 550 | 32419061003 | 194.70 | 235.59 | |
| GROEFKOGELLAGER | ||||
| 560 | 41701017015 | 15.68 | 18.97 | |
| AS | ||||
| 590 | 33406335000 | 2348.50 | 2841.68 | |
| SPIE | ||||
| 600 | 40221050005 | 4.20 | 5.08 | |
| BUS | ||||
| 602 | 30501387000 | 20.90 | 25.29 | |
| STIFT | ||||
| 610 | 30216163000 | 28.05 | 33.94 | |
| HULS | ||||
| 612 | 30501388000 | 198.00 | 239.58 | |
| MOER | ||||
| 615 | 42010000000 | 7.56 | 9.15 | |
| MOER ZESKANT | ||||
| 620 | 42003009007 | 4.92 | 5.95 | |
| KOGEL | ||||
| 622 | 41708000000 | 1.56 | 1.89 | |
| PLAAT | ||||
| 630 | 32408188004 | 58.30 | 70.54 | |
| FLENS | ||||
| 632 | 32419156010 | 188.10 | 227.60 | |
| Bus | ||||
| 634 | 41709005007 | 0.83 | 1.00 | |
| RING | ||||
| 635 | 40608000006 | 6.00 | 7.26 | |
| Moer Zeskant | ||||
| 636 | 42002007004 | 1.86 | 2.25 | |
| Schyf | ||||
| 638 | 42401018069 | 0.83 | 1.00 | |
| PLAAT | ||||
| 640 | 32408187006 | 59.40 | 71.87 | |
| SCHAKELSTANG | ||||
| 642 | 30216165000 | 86.90 | 105.15 | |
| PLAAT | ||||
| 645 | 32408454000 | 50.05 | 60.56 | |
| TANDWIEL | ||||
| 650 | 33806003000 | 712.80 | 862.49 | |
| TANDWIEL | ||||
| 660 | 33807009002 | 590.70 | 714.75 | |
| TANDWIEL | ||||
| 670 | 33806005002 | 589.60 | 713.42 | |
| Wormwiel | ||||
| 680 | 33807011003 | 598.40 | 724.06 | |
| VEER | ||||
| 682 | 30901390000 | 1.56 | 1.89 | |
| AANSLUITSTUK | ||||
| 684 | 32119151010 | 118.80 | 143.75 | |
| HULS | ||||
| 692 | 30501389000 | 44.00 | 53.24 | |
| DICHTING | ||||
| 700 | 30610057000 | 22.28 | 26.96 | |
| PLAAT | ||||
| 702 | 32408459000 | 6.72 | 8.13 | |
| PLAAT | ||||
| 710 | 32433027008 | 177.10 | 214.29 | |
| SCHROEF | ||||
| 712 | 43001000001 | 3.54 | 4.28 | |
| OPNAMESCHACHT | ||||
| 720 | 32715112003 | 71.50 | 86.52 | |
| Groefkogellager | ||||
| 722 | 41701012056 | 9.84 | 11.91 | |
| BEZORG UNIT | ||||
| 730 | 30520068017 | 679.80 | 822.56 | |
| Borgring | ||||
| 732 | 42616012007 | 0.96 | 1.16 | |
| SPANEEINHEID | ||||
| 740 | 32715069041 | 345.40 | 417.93 | |
| TANDWIEL Z=10 | ||||
| 742 | 32103046000 | 61.60 | 74.54 | |
| STOP | ||||
| 744 | 31420128000 | 0.96 | 1.16 | |
| SCHROEF | ||||
| 750 | 43048054109 | 0.83 | 1.00 | |
| ADAPTER | ||||
| 752 | 30216167000 | 43.45 | 52.57 | |
| PLAAT | ||||
| 760 | 42401017104 | 0.83 | 1.00 | |
| SEEGERING | ||||
| 762 | 42616044006 | 0.83 | 1.00 | |
| PLAAT | ||||
| 770 | 32415059008 | 21.72 | 26.28 | |
| KETTINGTANDWIEL Z=16 | ||||
| 772 | 32103045000 | 82.50 | 99.82 | |
| Transportwiel | ||||
| 780 | 32715115009 | 71.50 | 86.52 | |
| RING | ||||
| 782 | 42616046003 | 0.83 | 1.00 | |
| PAL | ||||
| 790 | 30217317004 | 32.45 | 39.26 | |
| GREEP | ||||
| 792 | 32119151000 | 41.80 | 50.58 | |
| Instructie Sticker | ||||
| 795 | 32217465060 | 3.42 | 4.14 | |
| SCHARNIER | ||||
| 800 | 33406279012 | 391.60 | 473.84 | |
| DRAADSTIFT | ||||
| 802 | 30216164000 | 25.30 | 30.61 | |
| HULS | ||||
| 810 | 30501340005 | 24.75 | 29.95 | |
| Borgring | ||||
| 820 | 42616023000 | 0.83 | 1.00 | |
| TRAVERSE | ||||
| 830 | 32715118013 | 705.10 | 853.17 | |
| SCHROEF | ||||
| 840 | 43033083066 | 0.83 | 1.00 | |
| STIFT | ||||
| 850 | 30217213009 | 20.08 | 24.30 | |
| PAL | ||||
| 860 | 30217316000 | 70.40 | 85.18 | |
| HOEKCONTACTLAGER | ||||
| 870 | 41711021008 | 45.10 | 54.57 | |
| PLAAT | ||||
| 880 | 32408378007 | 79.20 | 95.83 | |
| PLAAT | ||||
| 890 | 32103044000 | 97.90 | 118.46 | |
| HULS | ||||
| 900 | 32715122002 | 192.50 | 232.92 | |
| Transportwiel | ||||
| 910 | 32715116002 | 89.10 | 107.81 | |
| Schroef Cilinder | ||||
| 920 | 43035097059 | 0.83 | 1.00 | |
| PLAAT | ||||
| 930 | 32408374008 | 24.75 | 29.95 | |
| SCHROEF | ||||
| 940 | 43001041105 | 0.96 | 1.16 | |
| Motorplaat | ||||
| 950 | 32429120000 | 454.30 | 549.70 | |
| SCHROEF | ||||
| 970 | 43035037068 | 0.83 | 1.00 | |
| ZIJPLATEN SET | ||||
| 980 | 32422341010 | 1026.30 | 1241.82 | |
| SKALA | ||||
| 985 | 30229431000 | 36.30 | 43.92 | |
| TRAVERSE | ||||
| 990 | 30240361010 | 517.00 | 625.57 | |
| FLENS | ||||
| 995 | 30240360000 | 85.80 | 103.82 | |
| AS | ||||
| 1040 | 33406283010 | 688.60 | 833.21 | |
| PLAAT | ||||
| 1050 | 32715120000 | 123.20 | 149.07 | |
| AS | ||||
| 1070 | 33406336000 | 243.10 | 294.15 | |
| PLAAT | ||||
| 1080 | 32408376005 | 33.55 | 40.60 | |
| HULS | ||||
| 1090 | 30501339003 | 36.85 | 44.59 | |
| MOER ZESKANT | ||||
| 1100 | 30509052000 | 39.05 | 47.25 | |
| PLAAT | ||||
| 1110 | 32715121009 | 107.80 | 130.44 | |
| SCHROEF | ||||
| 1120 | 43012051122 | 17.32 | 20.96 | |
| PAL | ||||
| 1130 | 30217314003 | 11.00 | 13.31 | |
| SCHROEF | ||||
| 1140 | 43033084045 | 0.83 | 1.00 | |
| DRAADSTIFT | ||||
| 1150 | 33021097002 | 88.00 | 106.48 | |
| SCHARNIER | ||||
| 1160 | 30509019010 | 118.80 | 143.75 | |
| SLIJPKAP | ||||
| 1170 | 31810234000 | 254.10 | 307.46 | |
| STIFTSCHROEF | ||||
| 1180 | 43007059080 | 3.72 | 4.50 | |
| Ring | ||||
| 1190 | 42401019085 | 0.83 | 1.00 | |
| HENDEL | ||||
| 1200 | 32170002005 | 35.20 | 42.59 | |
| Niet meer leverbaar | ||||
| 1230 | 32215026007 | |||
| Niet meer leverbaar | ||||
| 1240 | 32215104067 | |||
| MOTOR | ||||
| 1250 | 54399002153 | 913.00 | 1104.73 | |
| TREKONTLASTING | ||||
| 1260 | 30723053004 | 132.00 | 159.72 | |
| KABEL MET STEKKER | ||||
| 1270 | 30707371017 | 124.30 | 150.40 | |
| FLENS | ||||
| 1310 | 32436060002 | 394.90 | 477.83 | |
| Groefkogellager | ||||
| 1320 | 41701010010 | 5.70 | 6.90 | |
| Schroef Cilinder | ||||
| 1330 | 43035048087 | 0.83 | 1.00 | |
| TANDWIEL | ||||
| 1340 | 33669025002 | 173.80 | 210.30 | |
| PLAAT | ||||
| 1350 | 42402010082 | 0.83 | 1.00 | |
| SCHROEF | ||||
| 1360 | 43033077088 | 0.83 | 1.00 | |
| AS VERTAND | ||||
| 1370 | 33811066000 | 173.80 | 210.30 | |
| FLENS | ||||
| 1380 | 32436061001 | 486.20 | 588.30 | |
| AFDICHTING | ||||
| 1400 | 40608062006 | 15.12 | 18.30 | |
| PLANEETDRAGER | ||||
| 1495 | 32715055021 | 663.30 | 802.59 | |
| PLANEETDRAGER COMPL | ||||
| 1500 | 32715055015 | 558.80 | 676.15 | |
| NAALDLAGER | ||||
| 1510 | 41715016004 | 15.40 | 18.63 | |
| TANDWIEL | ||||
| 1520 | 33613071004 | 56.10 | 67.88 | |
| Schroef Cilinder | ||||
| 1530 | 43033064066 | 0.83 | 1.00 | |
| Ring | ||||
| 1540 | 32402002000 | 10.56 | 12.78 | |
| STIFT | ||||
| 1550 | 40242017000 | 2.64 | 3.19 | |
| Schroef | ||||
| 1610 | 43035029061 | 0.83 | 1.00 | |
| PLAAT | ||||
| 1620 | 32402001007 | 21.18 | 25.63 | |
| KOPPELINGSHULS | ||||
| 1630 | 30101026001 | 74.80 | 90.51 | |
| SPIE | ||||
| 1640 | 40221018002 | 6.96 | 8.42 | |
| AFDICHTING | ||||
| 1650 | 40612020005 | 3.42 | 4.14 | |
| BUS | ||||
| 1660 | 31602087007 | 6.36 | 7.70 | |
| LAGERSTUK | ||||
| 1670 | 32715114005 | 217.80 | 263.54 | |
| BUIS | ||||
| 1680 | 30520068008 | 82.50 | 99.82 | |
| RING | ||||
| 1690 | 30606008008 | 16.22 | 19.63 | |
| DRAADSTIFT | ||||
| 1700 | 33406146004 | 207.90 | 251.56 | |
| Afdichtring Rond | ||||
| 2050 | 40612017001 | 4.50 | 5.44 | |
| SPANHULS | ||||
| 3000 | 32715069013 | 127.60 | 154.40 | |
| STIFT/BOUT | ||||
| 3010 | 32715071005 | 82.50 | 99.82 | |
| SCHOTELVEER | ||||
| 3020 | 30905023001 | 8.04 | 9.73 | |
| RING | ||||
| 3030 | 32601172006 | 11.28 | 13.65 | |
| STIFT | ||||
| 3040 | 40247005009 | 0.83 | 1.00 | |
| Hijsoog | ||||
| 3050 | 43040004165 | 28.60 | 34.61 | |
| PLAAT | ||||
| 3060 | 32624078049 | 5.40 | 6.53 | |
| SEEGERING | ||||
| 3070 | 42616048005 | 1.86 | 2.25 | |
| Hijsoog | ||||
| 3080 | 43040005004 | 29.15 | 35.27 | |
| HOUDER | ||||
| 3580 | 30240353000 | 185.90 | 224.94 | |
| HOUDER | ||||
| 3590 | 30240354000 | 185.90 | 224.94 | |
| Schroef Cilinder | ||||
| 3600 | 43033062051 | 0.83 | 1.00 | |
| STIFT | ||||
| 3610 | 40242046003 | 1.56 | 1.89 | |
| KABEL | ||||
| 3620 | 30231033010 | 54.45 | 65.88 | |
| KABEL | ||||
| 3630 | 30231032010 | 70.40 | 85.18 | |
| STIFT | ||||
| 3660 | 30216166000 | 15.68 | 18.97 | |
| BORGSCHIJF | ||||
| 3670 | 42634009004 | 0.96 | 1.16 | |
| KETTINGSPANNER | ||||
| 3700 | 31207333020 | 380.60 | 460.53 | |
| Niet meer leverbaar | ||||
| 3750 | 30231035010 | |||
| Niet meer leverbaar | ||||
| 3760 | 30231036010 | |||
| STIFT | ||||
| 3770 | 30216166000 | 15.68 | 18.97 | |
| Borgschyf | ||||
| 3780 | 42634003003 | 0.83 | 1.00 | |
| Niet meer leverbaar | ||||
| 3800 | 32422346000 | |||
| SCHAKELKAST | ||||
| 5100 | 30702041014 | 1680.80 | 2033.77 | |
| VERLENGING | ||||
| 5110 | 32715025009 | 74.80 | 90.51 | |
| Moer Zeskant | ||||
| 5120 | 42001007053 | 0.83 | 1.00 | |
| RING GETAND M5 | ||||
| 5130 | 42439004051 | 0.83 | 1.00 | |
| Schroef Cilinder | ||||
| 5140 | 43002058056 | 0.83 | 1.00 | |
| PLAAT | ||||
| 5150 | 42402006059 | 0.83 | 1.00 | |
| Niet meer leverbaar | ||||
| 5160 | 32217376065 | |||
| SCHAKELAAR | ||||
| 5170 | 30702041005 | 1584.00 | 1916.64 | |
| BEUGEL | ||||
| 5180 | 30230054022 | 116.60 | 141.09 | |
| HANDGREEP | ||||
| 5185 | 30230054038 | 148.50 | 179.68 | |
| Niet meer leverbaar | ||||
| 5200 | 33901031001 | |||
| Niet meer leverbaar | ||||
| 5300 | 32122007017 | |||
| SPIE UITDRYF | ||||
| 5450 | 63305006008 | 11.25 | 13.61 | |
| SLEUTEL ENKEL | ||||
| 5500 | 62901016002 | 18.25 | 22.08 | |
| Niet meer leverbaar | ||||
| 5600 | 62903010006 | |||
| Niet meer leverbaar | ||||
| 5700 | 62911010000 | |||
| Niet meer leverbaar | ||||
| 5800 | 62906014000 | |||
| Niet meer leverbaar | ||||
| 5900 | 30231029002 | |||
| Verbindingspennen | ||||
| 6000 | 30217216004 | 2.64 | 3.19 | |
| Veiligheidsring | ||||
| 6100 | 42634020005 | 0.83 | 1.00 | |
| SMEERMIDDEL 1,800 KG | ||||
| 6200 | 32132009013 | 63.80 | 77.20 | |
| Niet meer leverbaar | ||||
| 6300 | 32174009001 | |||
| Niet meer leverbaar | ||||
| 6400 | 32174010003 | |||
